The smooth, seemingly effortless operation of a modern internal combustion engine is something many take for granted. Yet, beneath the hood lies a complex interplay of forces, meticulously managed through clever engineering. At the heart of this mechanical ballet is the crankshaft, translating the up-and-down motion of pistons into the rotation that powers the vehicle. However, this conversion process inherently generates significant vibrations due to the rapidly accelerating and decelerating masses of the pistons and connecting rods. Left unchecked, these forces would result in rough running, excessive noise, and premature wear. This is where crankshaft counterweights play their indispensable role. These carefully shaped and sized masses, strategically placed opposite the crank pins, are fundamental to achieving acceptable, and ideally optimal, engine balance. Understanding their impact is crucial not just for engineers but for anyone interested in the inner workings of engines, as they directly influence everything from driving comfort to the very lifespan of the powertrain. It's not merely about adding weight; it's about precisely calculated mass distribution designed to cancel out disruptive forces, creating a harmonious rotation essential for performance and durability. Frankly speaking, without effective counterweighting, the engines we rely on daily would be dramatically different, and far less refined.
Understanding the Sources of Engine Imbalance
To truly appreciate the function of counterweights, one must first grasp the nature of imbalance within an engine. Have you ever wondered why some engines feel inherently smoother than others? A significant part of the answer lies in how well these imbalances are managed. The primary culprits are the reciprocating masses (pistons, piston pins, the small end of the connecting rod) and the rotating masses (crank pins, bearings, the big end of the connecting rod). As the crankshaft spins, the connecting rod big end travels in a perfect circle, contributing to rotating imbalance. The piston and rod small end, however, move up and down, accelerating rapidly away from top dead center (TDC) and bottom dead center (BDC) and decelerating as they approach these points. This linear motion creates forces that act along the cylinder axis. Because the connecting rod angle changes throughout the stroke, the piston doesn't move with simple harmonic motion; its speed is different in the top half of the stroke compared to the bottom half. This complex motion generates both primary forces (occurring once per revolution) and secondary forces (occurring twice per revolution). Furthermore, in multi-cylinder engines, these forces occurring in different cylinders at different times can create rocking couples or moments, essentially trying to twist or bend the engine block. These forces and moments collectively contribute to engine vibration, noise (known collectively as NVH - Noise, Vibration, Harshness), and stress on engine components, particularly bearings and the crankshaft itself. Managing these inherent imbalances is therefore a primary goal in engine design.
The Fundamental Role of Crankshaft Counterweights

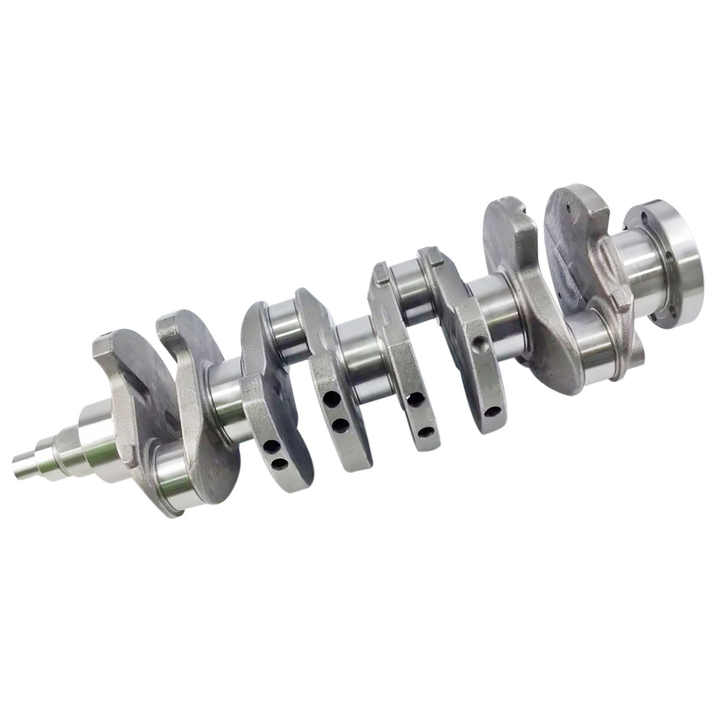

Crankshaft counterweights are essentially carefully engineered masses attached to the crankshaft's webs, positioned opposite the crankpins (where the connecting rods attach). Their primary purpose is elegantly simple in concept: to counteract the forces generated by the piston and connecting rod assemblies during rotation. As the piston and the upper part of the connecting rod move upwards, creating an upward force, the counterweight is moving downwards, creating an opposing downward force. Similarly, as the crankpin and the lower, rotating part of the connecting rod swing outwards due to centrifugal force, the counterweight swings outwards in the opposite direction, generating an opposing centrifugal force. It's a direct application of Newton's third law – for every action, there is an equal and opposite reaction. By adding mass precisely opposite the primary sources of imbalance (the crankpin and associated rotating/reciprocating components), counterweights aim to bring the crankshaft's center of mass closer to its axis of rotation. This significantly reduces, or ideally cancels out, the primary rotating imbalances and a portion of the reciprocating imbalances. The size, shape, and placement of these counterweights are critical design parameters, calculated based on the engine's specific configuration, the mass of the components they need to counteract, and the desired level of balance. It's worth noting that they are most effective against the rotating mass and the primary reciprocating forces; secondary forces often require different solutions like balance shafts.
Static vs. Dynamic Balance: A Crucial Distinction
When discussing engine balance, it's vital to differentiate between static balance and dynamic balance. Static balance refers to the tendency of an object to remain stationary when placed on a knife-edge pivot; its center of gravity lies on the axis of rotation. Imagine a simple wheel and tire assembly; if one side is heavier, it will rotate downwards when allowed to spin freely – that's static imbalance. Counterweights on a crankshaft primarily address static balance by ensuring that the mass distribution around the axis of rotation is relatively even along its length, preventing it from having a single 'heavy spot'. However, an engine crankshaft is a long, complex component. Even if it's perfectly statically balanced (meaning its overall center of mass is on the rotational axis), it can still suffer from dynamic imbalance. This occurs when forces create a wobble or couple as the crankshaft rotates at speed. Think of it like having equal weights placed at opposite ends of a shaft but offset from each other along the shaft's length; while statically balanced, spinning it would cause a wobble. Counterweights, by their strategic placement along the crankshaft (often flanking each crankpin or pair of crankpins), also contribute significantly to achieving dynamic balance. Perfect dynamic balance ensures that the centrifugal forces generated by all rotating and reciprocating masses completely cancel each other out, resulting in no net force or couple acting on the main bearings. Achieving good dynamic balance is especially critical for longer crankshafts (like inline-6 engines) and high-RPM operation, as unbalanced couples can cause severe vibrations and bending stresses on the crank.
Factors Influencing Counterweight Design and Effectiveness
The design of crankshaft counterweights is far from a one-size-fits-all approach. It's a complex engineering task influenced by numerous factors specific to each engine application. Perhaps the most significant factor is the engine configuration itself. An inline-four engine has different balance characteristics and requirements than a V6, a V8, or a flat-six (boxer) engine. For instance, inline-six and boxer-six engines are naturally well-balanced in terms of primary and secondary forces and couples, potentially requiring less counterweighting compared to, say, a 90-degree V6 which can have inherent imbalances requiring more complex balancing solutions, including specific counterweight designs or even balance shafts. The mass of the piston and connecting rod assembly is another critical input; heavier components naturally require larger or denser counterweights to effectively offset their inertia. The intended operating RPM range also plays a crucial role, as centrifugal forces increase with the square of the rotational speed, making balance particularly critical for high-revving engines. Furthermore, engineers must decide on the desired balance factor – the percentage of the reciprocating mass that the counterweights are designed to offset. Counterweighting 100% of the rotating mass is standard, but counteracting reciprocating mass is a compromise. Counterweighting 100% of reciprocating mass would perfectly balance primary vertical forces but introduce horizontal imbalances. Typically, a factor around 50-60% is chosen as a compromise for many engine types. The material itself, usually cast iron or forged steel, and manufacturing precision are also vital for achieving the intended balance and ensuring long-term durability. Interestingly enough, space constraints within the crankcase can also dictate counterweight shape and sometimes necessitate the use of denser (and more expensive) materials like tungsten heavy alloy (often called Mallory metal) inserts to achieve the required mass in a smaller volume.
The Tangible Impact: Reducing Noise, Vibration, and Harshness (NVH)
The primary and most noticeable benefit of well-designed crankshaft counterweights is the significant reduction in Noise, Vibration, and Harshness (NVH). Think about the difference between an old tractor engine and a modern luxury car engine – a huge part of that refinement comes down to superior balancing. Imbalance forces generated by the crankshaft assembly don't just stay within the engine; they transmit through the engine mounts into the vehicle's chassis and body structure. This manifests as vibrations felt by the occupants through the steering wheel, pedals, floor, and seats, as well as audible noise, often perceived as engine roughness or drone. Effective counterweights work directly at the source, canceling out a large portion of the primary shaking forces before they even leave the crankshaft. By smoothing the rotation and reducing the magnitude of these force fluctuations, counterweights lead to a quieter cabin environment and a much more comfortable driving experience. This reduction in vibration isn't just about comfort; it also contributes to the perceived quality of the vehicle. A smooth, quiet engine is often associated with higher quality and better engineering. Have you ever considered how much smoother modern engines are compared to older designs, and why that might be? Refinements in balancing technology, including optimized counterweight design and precision manufacturing, are key contributing factors. Frankly speaking, the level of refinement expected in today's vehicles would be simply unattainable without the balancing act performed by crankshaft counterweights.
Enhancing Performance and Ensuring Engine Longevity
Beyond just comfort and refinement, the impact of crankshaft counterweights extends significantly into the realms of performance and engine longevity. A well-balanced engine operates with substantially less internal stress. The vibrations caused by imbalance place considerable loads on the crankshaft main bearings and connecting rod bearings, leading to increased friction, heat, and wear. By minimizing these vibrational loads, effective counterweighting allows bearings to last longer and maintain proper lubrication films, contributing directly to the overall durability and lifespan of the engine. Furthermore, these vibrations don't just affect bearings; they transmit stress throughout the entire engine structure, including the block, cylinder heads, and even ancillary components. Over time, excessive vibration can lead to fatigue failures in various parts. A smoother-running engine is simply a healthier engine. From a performance perspective, while counterweights themselves add rotational mass (inertia), which can slightly hinder rapid changes in engine speed, the stability they provide is crucial. A well-balanced rotating assembly can safely handle higher rotational speeds (RPMs) without destructive vibration levels. This allows engineers to design engines that can rev higher, potentially unlocking more horsepower. Moreover, the reduction in internal friction due to better balance can lead to marginal improvements in efficiency, as less energy is wasted overcoming vibrational forces and friction. In essence, while not directly adding power like a turbocharger, proper counterweighting creates the stable foundation necessary for an engine to perform reliably and durably, especially under demanding conditions or at higher power outputs.
Navigating the Trade-offs: Balance Factor and Rotational Inertia
While the goal is optimal balance, achieving it often involves navigating certain trade-offs, particularly concerning the balance factor and the inherent increase in rotational inertia. As mentioned earlier, counterweights easily balance 100% of the rotating mass (crankpin, big end of the rod). However, balancing the reciprocating mass (piston, small end) is more complex. Counterweights move in a circle, while pistons move up and down. Fully counterweighting the vertical reciprocating forces with rotating counterweights would introduce horizontal shaking forces. Therefore, engineers typically choose a compromise, known as the balance factor, often targeting around 50-60% of the reciprocating mass. This provides a good reduction in the primary vertical shaking forces without introducing excessive horizontal vibration. The ideal percentage can vary depending on the engine configuration and design priorities. For example, V-twin engines often use specific balance factors tailored to their unique firing intervals and cylinder angles to achieve a desired feel, sometimes intentionally leaving some imbalance for "character". The other significant trade-off involves rotational inertia. Counterweights, by definition, add mass to the crankshaft. This increased mass means the crankshaft resists changes in speed more – it takes slightly more effort to spin it up quickly and slows down slightly less abruptly. For a race engine where lightning-fast throttle response is paramount, engineers might opt for minimally sized counterweights or even "knife-edged" designs (streamlined shapes) to reduce both inertia and windage (air resistance inside the crankcase), accepting a potential compromise in perfect balance for the sake of responsiveness. Conversely, in a luxury sedan or a heavy-duty truck engine, smoothness and longevity are prioritized, favouring more substantial counterweighting despite the slight increase in inertia. It's a balancing act in itself, tailoring the counterweight strategy to the specific application's needs.
Advanced Counterweight Techniques and Manufacturing Precision
As engine technology advances and demands for efficiency, performance, and refinement increase, so too does the sophistication of counterweight design and manufacturing. Basic cast iron counterweights integrated into the crankshaft forging or casting are common, but high-performance and specialized applications often employ more advanced techniques. One such technique is knife-edging, where the leading and trailing edges of the counterweights are machined to a sharper, more aerodynamic profile. This reduces windage – the parasitic drag caused by the counterweights churning through the air and oil mist within the crankcase. While seemingly minor, at high RPMs, this can free up a small amount of horsepower and improve throttle response. Another advanced approach involves using materials denser than steel. When space within the crankcase is limited, but significant counterweight mass is required (often in high-cylinder-count or high-performance engines), manufacturers may drill holes in the steel counterweights and press in slugs of tungsten heavy alloy (often referred to by the trade name Mallory metal). Tungsten is significantly denser than steel, allowing engineers to add the necessary balancing mass without increasing the physical size of the counterweight, thus maintaining necessary clearances to the block or oil pan. Beyond materials and shaping, the precision of manufacturing is paramount. Modern crankshafts are balanced with incredible accuracy using specialized dynamic balancing machines. These machines spin the crankshaft and measure minute imbalances, indicating precisely where and how much material needs to be removed (usually by drilling shallow holes in the counterweights) to achieve the desired level of balance. This meticulous process ensures that the theoretical benefits of the counterweight design are fully realized in practice, contributing significantly to the final engine's smoothness and longevity.
Real-World Examples and Troubleshooting Insights
The principles of counterweighting manifest differently across the vast spectrum of engine designs. Consider a small, economical inline-four engine. These engines often have relatively light pistons and rods and operate at moderate RPMs. Their counterweights are typically integrated into the crankshaft casting or forging and are designed to primarily balance the rotating masses and achieve a reasonable balance factor for the reciprocating masses, often relying on engine mounts to absorb residual vibrations, especially the inherent secondary vibrations common to this layout. Now, contrast that with a high-performance V8 engine found in a muscle car or sports car. These engines often feature heavier pistons/rods (especially if aftermarket), operate at much higher RPMs, and prioritize smoothness alongside power. Their crankshafts will typically feature more substantial counterweights, often flanking each crankpin (known as a fully counterweighted crank), meticulously balanced dynamically for high-speed stability. The counterweights might be forged steel and precision machined. For large diesel engines in trucks or industrial equipment, durability and managing the massive forces from heavy pistons are key. Counterweights here are substantial, focusing on robust balancing to ensure longevity under high-load, continuous operation. From a troubleshooting perspective, an engine developing an unusual vibration, particularly one that changes intensity with RPM, could potentially indicate a balance issue. While counterweights themselves rarely fail, problems can arise from bearing wear allowing excessive crankshaft movement, incorrect component matching after a rebuild (e.g., using pistons or rods of significantly different weight than stock without rebalancing), or even issues with the harmonic balancer (dampener) attached to the crankshaft nose, which works in concert with the counterweights to quell torsional vibrations.
Our Role in Precision and Balance
Understanding the intricate relationship between crankshaft counterweights and engine balance is fundamental to our work. At our company, we recognize that achieving optimal NVH characteristics, maximizing engine lifespan, and enabling peak performance all hinge on the precise control of rotating and reciprocating forces within the engine. This deep understanding informs every stage of our process, whether we are involved in the design, manufacturing, or quality assurance of engine components. We leverage advanced engineering principles and state-of-the-art manufacturing techniques to ensure that components contributing to the rotating assembly meet exacting specifications. For instance, when producing or supplying crankshafts or related engine parts, meticulous attention is paid to material integrity, dimensional accuracy, and, critically, the final balancing process. We utilize sophisticated dynamic balancing equipment capable of detecting and correcting even minute imbalances, ensuring that our products contribute positively to the overall smoothness and reliability of the engines they become part of. Many experts agree that consistent quality and precision in these critical components are non-negotiable for achieving the desired engine characteristics. By focusing on these details, we help our clients build engines that are not only powerful and efficient but also exceptionally smooth and durable, directly addressing the challenges posed by inherent engine dynamics through precision-engineered solutions. This commitment to balance and precision is, in my experience, what truly sets high-quality engine components apart.
Conclusion: The Indispensable Contribution to Engine Harmony
In conclusion, the impact of crankshaft counterweights on engine balance is profound and far-reaching. They are not merely passive lumps of metal attached to the crankshaft; rather, they are precisely engineered components critical for taming the inherent forces generated by the engine's internal moving parts. By strategically adding mass opposite the crankpins, counterweights effectively counteract the centrifugal forces of the rotating components and a significant portion of the primary forces from the reciprocating pistons and connecting rods. This meticulous balancing act is fundamental to reducing engine vibration (NVH), leading to a smoother, quieter, and more comfortable operating experience. Furthermore, the reduction in vibrational stress significantly enhances the durability and longevity of critical engine parts like bearings and the crankshaft itself, while also providing the stability needed for reliable high-RPM performance. While design involves trade-offs between perfect balance, rotational inertia, and packaging constraints, the fundamental role of counterweights remains undisputed. From basic economy cars to high-performance machines and heavy-duty trucks, the effectiveness of the counterweight system directly influences the engine's character, reliability, and overall success. Ultimately, crankshaft counterweights are unsung heroes within the engine, tirelessly working to transform potentially destructive forces into harmonious, useful rotation – the very essence of a well-running internal combustion engine.
