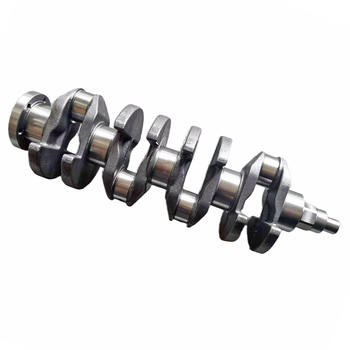

At the very heart of nearly every internal combustion engine lies the crankshaft, a component performing the Herculean task of converting the linear motion of the pistons into rotational force. It's a marvel of engineering, subjected to immense stress, heat, and constant friction. Given its critical role, the condition of the crankshaft directly impacts engine performance, efficiency, and longevity. Over time, however, even the most robust crankshaft can suffer wear and damage. This is where the process of crankshaft grinding comes into play. But when exactly is this procedure necessary, and why is it performed? Understanding the answers to these questions is crucial for anyone involved in engine maintenance, repair, or rebuilding. Frankly speaking, neglecting potential crankshaft issues can lead to catastrophic engine failure, turning a potentially manageable repair into a far more expensive and complex problem. This discussion aims to delve deep into the specifics, exploring the tell-tale signs that indicate a need for grinding, the underlying causes of crankshaft wear, and the fundamental reasons why grinding is often the most viable solution for restoring engine health. It's not just about fixing a part; it's about preserving the intricate balance and power potential engineered into the engine itself.
Understanding the Crankshaft's Critical Function and Stresses
To truly appreciate why crankshaft grinding becomes necessary, one must first grasp the demanding environment in which this component operates. The crankshaft serves as the backbone of the engine's rotating assembly. As combustion forces drive the pistons down, the connecting rods transfer this immense, intermittent force to the crankshaft's offset journals (rod journals or crankpins). The crankshaft then translates this into the smooth, continuous rotation needed to power the vehicle's drivetrain, flywheel, and various engine accessories via belts and pulleys. It simultaneously endures torsional twisting forces, bending forces from combustion pressure, and constant friction at its main bearing journals (where it's supported in the engine block) and rod bearing journals. Proper lubrication is absolutely paramount; a thin film of oil separates the crankshaft journals from the bearings, preventing metal-on-metal contact. However, factors like high mileage, infrequent oil changes, oil contamination (with fuel, coolant, or debris), overheating events, or even manufacturing defects can compromise this protective oil film. When lubrication fails, or when extreme operating conditions persist, direct contact occurs, leading to accelerated wear, scoring, and potential damage. The precision required is astounding – journal diameters and roundness are measured in ten-thousandths of an inch. Even minuscule deviations can disrupt the oil film, increase friction and heat, and initiate a cycle of escalating wear. It's worth noting that the constant starting and stopping cycles, varying loads, and potential for harmonic vibrations also contribute to the stresses placed upon the crankshaft over its operational life. Have you ever considered the sheer number of revolutions a crankshaft makes even on a short trip? It’s staggering, highlighting the relentless nature of its task and the importance of its precise geometric integrity.
The "Why": Common Causes Leading to Crankshaft Damage
So, what specifically causes a crankshaft to wear or become damaged to the point where grinding is required? The reasons are varied, but often interrelated. Normal wear and tear over extensive mileage is perhaps the most common culprit. Even with meticulous maintenance, microscopic particles in the oil and the sheer number of rotational cycles eventually lead to gradual wear on the journals and bearings. This wear isn't always uniform; it can result in conditions like taper (where one end of the journal wears more than the other) or ovality (where the journal becomes egg-shaped instead of perfectly round). Both conditions compromise the bearing clearance and the effectiveness of the oil film. Another significant cause is lubrication failure. This can stem from a faulty oil pump, low oil levels, using the wrong viscosity oil, or contaminated oil (coolant leaks, fuel dilution, dirt ingress). Without adequate lubrication, metal-on-metal contact rapidly scores and galls the journal surfaces and bearings, often generating significant heat that can further distort the crankshaft or damage surrounding components. Overheating the engine can also lead directly to crankshaft problems, as excessive temperatures thin the oil, reducing its load-carrying capacity, and can potentially warp or distort the crankshaft itself. Furthermore, debris within the engine, perhaps from a previous component failure (like a broken piston ring or valve component), can become embedded in bearings or circulate in the oil, causing severe scratching and scoring on the journals. Lastly, improper assembly or bearing selection during a previous rebuild can also induce premature wear or failure. Understanding these root causes is vital because simply grinding the crankshaft without addressing the underlying issue (like a faulty oil pump) will only lead to repeat failure down the line. It's a holistic diagnostic challenge.
Focusing on Journal Wear Patterns: Taper and Ovality
Let's delve a bit deeper into the specific types of wear patterns that necessitate grinding: taper and ovality. These aren't typically visible to the naked eye but become apparent through precise measurement using micrometers. Taper refers to a gradual change in diameter along the length of a single journal. For instance, the end of the journal closer to the center of the crank throw might measure slightly larger or smaller than the end further away. This often occurs due to uneven loading or slight misalignments. Why is this problematic? Because the bearing designed to support that journal has a uniform internal diameter. A tapered journal means the bearing clearance varies along its length, leading to uneven load distribution, potential edge loading on the bearing, and disruption of the hydrodynamic oil film. This can accelerate wear and increase the risk of bearing failure. Ovality, or out-of-roundness, means the journal's diameter varies when measured at different points around its circumference. Imagine squeezing a perfectly round pipe slightly – it becomes oval. This commonly happens due to the high, directional forces exerted by the connecting rod during the power stroke. The journal wears slightly more in the direction of the highest load. An oval journal prevents the bearing from maintaining a consistent oil film thickness all the way around. Areas with tighter clearance experience increased friction and heat, while areas with excessive clearance allow oil to escape too easily, reducing load-carrying capacity. Both taper and ovality, even if seemingly minor, significantly impair the engine's ability to maintain proper lubrication and smooth operation, directly contributing to noise, vibration, and eventual bearing destruction if not corrected through grinding. It’s this need for geometric perfection that makes precision grinding so essential.
The "When": Recognizing the Symptoms of Crankshaft Trouble
Knowing *why* a crankshaft might need grinding is one thing; knowing *when* to suspect a problem is equally crucial for timely intervention. Often, the engine itself will provide clues, though sometimes these symptoms can be subtle initially or mimic other issues. One of the most classic indicators is an audible engine knock or rapping sound, particularly noticeable under load or during acceleration. This noise is often caused by excessive clearance between the crankshaft journals and the bearings (either main or rod bearings). As the piston changes direction, the connecting rod slams against the worn journal due to the increased gap, creating a distinct metallic knock. The pitch and location of the knock can sometimes help pinpoint whether it's a rod bearing (usually higher pitched and changes more with RPM) or a main bearing (often a deeper rumble). Another critical warning sign is consistently low oil pressure, especially when the engine is warm and idling. Worn bearings and journals create larger clearances, allowing oil to flow out more easily and reducing overall system pressure. While a faulty oil pump or pressure sender can also cause low pressure, it should always prompt an investigation that includes checking bearing clearances if other causes are ruled out. Excessive or unusual engine vibration can also point towards crankshaft issues, potentially stemming from imbalance caused by uneven wear or even a slightly bent crankshaft. Finally, finding significant amounts of metallic particles or flakes (often copper or Babbitt material from the bearings) in the engine oil during an oil change is a major red flag. This indicates severe wear is occurring, and the crankshaft journals are likely compromised. Any combination of these symptoms warrants immediate professional diagnosis. Ignoring them is, frankly speaking, asking for catastrophic engine failure.
Diagnostic Steps: Confirming the Need for Grinding
Suspecting a crankshaft issue based on symptoms is the first step; confirming the problem and determining if grinding is the appropriate solution requires careful diagnostic procedures. This typically happens once the engine is at least partially disassembled, allowing access to the crankshaft. A thorough visual inspection is the starting point. Technicians look for obvious signs of damage like scoring (scratches or grooves), heat discoloration (bluing, indicating overheating), galling (where metal has transferred between surfaces due to friction), or visible cracks. However, visual inspection alone is insufficient because critical wear like taper and ovality isn't usually visible. The definitive assessment comes from meticulous measurement using precision micrometers. Each main and rod journal is measured at several points along its length and at different rotational orientations (typically 90 degrees apart) to check for taper and ovality. These measurements are then compared against the manufacturer's specifications for standard size and allowable wear limits. If the measurements reveal wear exceeding the limits, or significant taper/ovality, grinding is usually necessary. Another critical step, especially if overheating or sudden failure is suspected, is checking for cracks using methods like magnafluxing (magnetic particle inspection) or dye penetrant testing. These techniques can reveal hairline cracks invisible to the naked eye, which would render the crankshaft unsafe to reuse, even if the journals could theoretically be ground. Finally, analyzing the condition of the bearings removed from the engine provides valuable clues about the type and severity of the problem affecting the crankshaft journals. Wiped, scored, or embedded bearings correlate directly with journal damage.
The Crankshaft Grinding Process: Restoring Precision
Once diagnostics confirm that grinding is necessary and feasible (i.e., the crankshaft isn't cracked or excessively worn), the process itself begins. It's a highly specialized machining operation requiring dedicated crankshaft grinding machines and skilled operators. The fundamental goal is to remove just enough material from the damaged journal surfaces to eliminate imperfections like scoring, taper, and ovality, restoring them to a perfectly round, dimensionally accurate state with a specific surface finish. The crankshaft is mounted securely in the grinding machine, which rotates the crank while a large abrasive grinding wheel, spinning at high speed, is brought into contact with the journal. Coolant floods the contact area constantly to prevent overheating and wash away metal particles. The operator carefully removes material in small increments, frequently stopping to measure the journal diameter with micrometers, until the target undersize dimension is reached. It's crucial to understand that grinding removes material, making the journal diameter smaller. Therefore, undersize bearings must be used during engine reassembly to compensate for the reduced journal size and maintain the correct oil clearance specified by the engine manufacturer. Crankshafts can often be ground to several undersize increments (e.g., 0.010", 0.020", 0.030" or 0.25mm, 0.50mm, 0.75mm smaller than standard), depending on the initial amount of wear and the manufacturer's limits. After grinding, the journals are typically polished (often using fine abrasive belts) to achieve the precise, smooth surface finish required for optimal bearing performance and oil film retention. Fillet radii (the curved transition between the journal and the crank web) are also carefully inspected and often re-dressed, as these are critical stress points. The entire process demands exceptional accuracy to ensure the engine performs reliably after the rebuild.
Benefits of Timely and Professional Crankshaft Grinding
Opting for crankshaft grinding when necessary offers significant advantages over neglecting the issue or resorting prematurely to costly replacements. The primary benefit is the restoration of proper engine function and reliability. By correcting journal geometry (eliminating taper and ovality) and providing a smooth surface finish, grinding allows new undersize bearings to function correctly, re-establishing the critical oil film. This eliminates knocking noises, restores proper oil pressure, reduces friction, and allows the engine to produce its designed power smoothly and efficiently. In my experience, a properly ground crankshaft, paired with quality bearings and correct assembly, can perform just as well as a new one. Another major benefit is often cost-effectiveness. While grinding isn't inexpensive due to the specialized equipment and labor involved, it's frequently significantly cheaper than purchasing a brand-new crankshaft from the manufacturer, especially for larger or less common engines. Reusing the existing, repaired crankshaft saves on material costs and reduces waste. Furthermore, timely grinding is a form of preventative maintenance against catastrophic failure. Addressing journal wear before it leads to bearing seizure or connecting rod failure prevents much more extensive (and expensive) damage to the engine block, connecting rods, and potentially other components. It contributes directly to extending the overall service life of the engine. Have you ever weighed the cost of a proactive grind against a full engine replacement? For many situations, the math heavily favors grinding. Ensuring the grinding is performed by a reputable machine shop with the right equipment and expertise is, of course, paramount to realizing these benefits.
Limitations: When Grinding Isn't the Answer
While crankshaft grinding is a valuable and common engine repair procedure, it's not a universal solution for all crankshaft problems. There are definite situations where grinding is either impossible or ill-advised. The most critical limitation is the presence of cracks. As mentioned earlier, processes like magnafluxing are essential because even small cracks, particularly in high-stress areas like journal fillets or main bearing webs, can propagate under load and lead to sudden, catastrophic crankshaft failure. A cracked crankshaft should never be ground; it must be replaced. Another absolute limit is excessive wear or damage. Crankshafts can typically only be ground down to specific undersize limits set by the manufacturer. If the wear or scoring is so deep that cleaning it up would require grinding beyond the final allowable undersize dimension, the crankshaft is generally considered scrap. There simply wouldn't be compatible bearings available, and removing too much material could compromise the structural integrity of the journals. Similarly, a crankshaft that is significantly bent or twisted, perhaps due to severe overheating or a major mechanical failure (like hydraulic lock), may be beyond economical or safe repair. While minor bends can sometimes be straightened, severe distortion often makes the crankshaft unusable. In some cases, particularly for common high-volume engines, the cost difference between grinding the old crank and purchasing a new or reconditioned aftermarket crankshaft might be small enough that replacement becomes a more appealing option, especially considering the warranty often included with a replacement unit. It's crucial to have a thorough inspection and measurement performed by a qualified machinist to determine the true condition and decide the best course of action.
Ensuring Precision: Our Commitment to Crankshaft Services
Understanding the critical nature of crankshaft geometry and the precision required for a successful engine rebuild underscores the importance of choosing the right partner for grinding services or sourcing the necessary equipment. At our company, we recognize that the difference between a long-lasting, powerful engine and one plagued by premature failure often lies in the accuracy of the crankshaft machining. Whether providing state-of-the-art crankshaft grinding machines known for their rigidity, accuracy, and user-friendliness, or offering expert grinding services ourselves, our focus is unwavering: achieving exacting tolerances and superior surface finishes. We've found that investing in high-quality equipment and employing skilled technicians who understand the nuances of different engine types and crankshaft materials is non-negotiable. Our machinery incorporates advanced features designed to minimize vibration, ensure precise control over material removal, and facilitate accurate measurement throughout the process. For businesses performing their own engine rebuilds, our equipment provides the reliability and precision needed to handle demanding crankshaft restoration tasks confidently. For those seeking outsourced services, our machining capabilities ensure that crankshafts are returned to service meeting or exceeding original equipment manufacturer specifications for dimension, roundness, taper, and surface finish. We help solve the core problem discussed – the need for precise restoration of worn or damaged crankshafts – enabling reliable engine repairs and rebuilds. We believe that uncompromising quality in this critical area is fundamental to engine performance and longevity.
Conclusion: The Vital Role of Crankshaft Grinding
In conclusion, crankshaft grinding is far more than just a routine machining task; it's a critical restorative process essential for maintaining the health, performance, and longevity of internal combustion engines. The core theme remains consistent: understanding when and why this procedure is necessary is key. The "why" stems from the inevitable wear and potential damage inflicted upon the crankshaft journals due to immense operational stresses, friction, and occasional lubrication or overheating issues. Wear patterns like taper and ovality, along with scoring, compromise the precise clearances needed for effective lubrication, leading to reduced performance and potential failure. The "when" is signaled by symptoms such as engine knocking, low oil pressure, excessive vibration, or metal debris in the oil, prompting diagnostic measurements that confirm journal dimensions are outside acceptable limits. Grinding addresses these issues by precisely removing damaged material, restoring geometric accuracy, and preparing the journals for appropriate undersize bearings. While not suitable for cracked or excessively worn cranks, professional grinding is often the most effective and economical solution for salvaging a usable crankshaft, preventing catastrophic failure, and ensuring the engine runs smoothly and reliably for many more miles or hours. Ultimately, recognizing the significance of crankshaft condition and addressing wear through timely, precise grinding is fundamental to successful engine repair and rebuilding.
