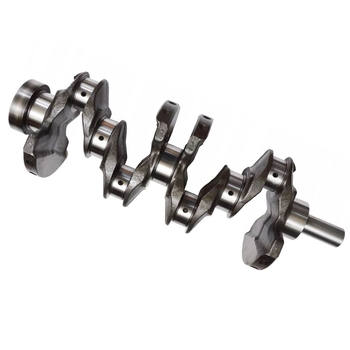

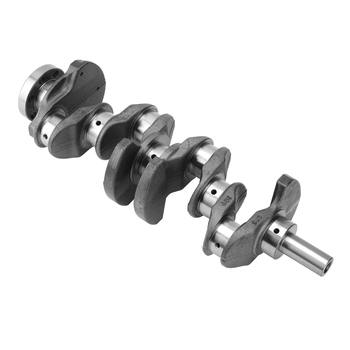

Have you ever stopped to consider what truly makes an engine roar to life, translating combustion into rotational power? At its very core lies the crankshaft, an engineering marvel responsible for converting the linear motion of pistons into the rotational motion that drives your vehicle. To be honest, without a perfectly crafted crankshaft, an engine is nothing more than a collection of static parts. The journey of creating this critical component, known as crankshaft manufacturing, is a fascinating blend of metallurgy, precision machining, and rigorous quality control. It's a process that demands absolute perfection, as any flaw can lead to catastrophic engine failure.

Frankly speaking, the complexity involved in producing a crankshaft is often underestimated. From selecting the right raw materials to the final balancing act, each stage of crankshaft manufacturing is a testament to advanced engineering and meticulous craftsmanship. In my experience, understanding this journey gives you a profound appreciation for the power plants that propel our world. Let's embark on this detailed exploration, uncovering the secrets behind the creation of one of the most vital components in any internal combustion engine.

The Foundation: Raw Materials and Initial Forming

The first, and arguably most crucial, step in crankshaft manufacturing is the selection of the raw material. A crankshaft endures immense stress, including high temperatures, torsional forces, and bending moments. Therefore, the material must possess exceptional strength, fatigue resistance, and ductility. Typically, high-strength steel alloys are chosen, such as carbon steel, alloy steel (like chrome-molybdenum steel), or even nodular cast iron for less demanding applications. Interestingly enough, the choice between forging and casting for the initial shape largely dictates the material and subsequent manufacturing processes.

Forging: The Path of Superior Strength

Many experts agree that for high-performance engines, forged crankshafts are the gold standard. The forging process involves heating a solid steel billet to a plastic state and then shaping it using immense pressure, often with hammers or presses. This process refines the grain structure of the steel, aligning the grain flow with the shape of the crankshaft. This alignment significantly enhances the component's strength, fatigue resistance, and impact toughness. Die forging, where the hot billet is pressed into a die cavity, is common, ensuring consistent shapes and properties. Another method, continuous grain flow forging, creates an even more optimized grain structure, further boosting durability. After forging, the crankshaft blanks often undergo a normalization heat treatment to relieve internal stresses and refine the grain structure further, preparing them for subsequent machining.

Casting: Economic and Versatile

While forging offers superior strength, casting provides a more cost-effective and versatile approach for certain applications, particularly in mass production for standard automotive engines. Cast crankshafts are typically made from nodular cast iron (also known as ductile iron). This material, while not as strong as forged steel, offers good machinability, vibration damping properties, and sufficient strength for many engine designs. The casting process involves pouring molten metal into a mold that has the approximate shape of the crankshaft. After cooling, the cast blank is removed. While casting allows for more intricate shapes to be formed initially, it doesn't offer the same grain refinement benefits as forging. Consequently, cast crankshafts often require different heat treatments and sometimes a more robust design to compensate for lower inherent strength compared to their forged counterparts.

Precision Machining: Shaping the Heart of the Engine

Once the raw blank, whether forged or cast, has been prepared, the real magic of precision machining begins. This is where the crude shape is transformed into a component with tolerances measured in microns. This stage of crankshaft manufacturing is incredibly intricate, involving numerous operations that progressively refine the part's geometry and surface finish. It's worth noting that the sequence and type of machining operations can vary significantly depending on the crankshaft design and the desired level of precision.

Rough Machining: Bringing Form to the Blank

The initial machining operations focus on removing excess material and bringing the crankshaft closer to its final dimensions. This typically involves:

• Turning: Using lathes, the main journals (where the crankshaft rotates in the engine block) and pin journals (where the connecting rods attach) are rough-turned. This establishes the basic diameters and lengths.
• Milling: Specialized milling machines are used to create the counterweights, which are essential for balancing the crankshaft. This often involves complex multi-axis milling operations to achieve the precise shape and weight distribution.
• Drilling: Oil passages are critical for lubricating the main and pin bearings. These intricate holes are drilled through the crankshaft, often at compound angles, requiring highly specialized drilling machines.

Grinding and Finishing: The Quest for Perfection

After rough machining, the crankshaft undergoes a series of grinding operations to achieve the extremely tight tolerances and smooth surface finishes required for optimal performance and longevity. This is arguably the most critical phase for dimensional accuracy.

• Journal Grinding: The main and pin journals are precision-ground to their final diameters and surface finishes. This is done using specialized grinders that can handle the eccentric nature of the pin journals. The concentricity and roundness of these journals are paramount.
• Fillet Rolling: The transition areas (fillets) between the journals and the webs are often "rolled" or "shot peened." This process introduces compressive residual stresses into the surface, significantly improving the fatigue strength of the crankshaft in these high-stress areas.
• Superfinishing/Polishing: For the highest quality crankshafts, the journals may undergo a superfinishing or micro-polishing process. This removes microscopic irregularities, resulting in an exceptionally smooth surface that reduces friction and wear on the bearings.

Dynamic Balancing: The Final Harmony

Even with meticulous machining, minor imbalances can exist in a crankshaft due to material variations or slight geometric deviations. These imbalances, if left uncorrected, would lead to excessive vibrations, premature bearing wear, and a significant reduction in engine efficiency and lifespan. Therefore, dynamic balancing is a crucial final step in crankshaft manufacturing. The crankshaft is mounted on a balancing machine that spins it at high speeds. Sensors detect any imbalances, and the machine calculates the precise amount of material that needs to be removed (usually by drilling small holes in the counterweights) or added (less common) to achieve perfect balance. This ensures the crankshaft rotates smoothly and efficiently throughout its operational range.

Enhancing Durability: Heat Treatment and Surface Finishing

Once the crankshaft has been machined to its precise dimensions, it undergoes various heat treatment and surface finishing processes. These steps are vital for enhancing the material's properties, particularly its hardness, wear resistance, and fatigue strength, ensuring the crankshaft can withstand the harsh operating conditions within an engine.

Heat Treatment Processes: Fortifying the Core

The type of heat treatment applied depends on the material (forged steel vs. cast iron) and the desired properties. Common heat treatments include:

• Induction Hardening: This is a very common process for steel crankshafts. Specific areas, primarily the main and pin journals, are rapidly heated using electromagnetic induction and then quickly quenched. This creates a hard, wear-resistant surface layer (case) while maintaining a tougher, more ductile core. It's a localized hardening process, which is highly efficient.
• Nitriding: This process involves diffusing nitrogen into the surface of the steel at elevated temperatures. Nitriding creates an extremely hard and wear-resistant surface layer, often without the need for quenching, thus minimizing distortion. It also significantly improves fatigue strength and corrosion resistance. It's particularly effective for high-stress applications.
• Carburizing: Less common for crankshafts than induction hardening or nitriding, carburizing involves introducing carbon into the surface of low-carbon steel, followed by quenching and tempering. This creates a hard case and a tough core, similar to induction hardening but typically for larger parts or different steel compositions.

Each of these processes is carefully controlled to achieve the optimal balance of surface hardness and core toughness, crucial for the crankshaft's long-term performance.

Surface Finishing: The Final Polish

Beyond the heat treatment, additional surface finishing techniques are employed to further enhance the crankshaft's performance and longevity. These are often performed after hardening to achieve the ultimate surface integrity.

• Superfinishing/Micro-polishing: As mentioned earlier, this process uses abrasive stones or tapes to remove microscopic peaks and valleys from the journal surfaces. The result is an incredibly smooth, mirror-like finish that significantly reduces friction and wear on the bearings, leading to improved fuel economy and extended engine life.
• Shot Peening: While sometimes done earlier in the process, shot peening can also be a final surface treatment. It involves bombarding the surface with small, spherical media (shot) at high velocity. This creates a layer of compressive residual stress on the surface, which effectively inhibits the initiation and propagation of fatigue cracks, thereby increasing the fatigue life of the crankshaft, particularly in critical areas like fillets.

The Unseen Guardians: Quality Control and Inspection

Even with the most advanced manufacturing processes, quality control and inspection are non-negotiable in crankshaft manufacturing. Given the critical role of the crankshaft in an engine, any defect, no matter how small, can have severe consequences. This stage ensures that every crankshaft leaving the factory meets the stringent specifications for dimensions, material integrity, and performance.

Dimensional Inspection: Precision Down to Microns

Throughout the manufacturing process, and especially at the final stages, crankshafts undergo rigorous dimensional inspection. This involves using highly precise measuring equipment to verify that all dimensions, including journal diameters, lengths, run-out, concentricity, and angular relationships of the pins, are within the specified tolerances. Coordinate Measuring Machines (CMMs) are indispensable here, providing automated, highly accurate three-dimensional measurements. Manual gauges, micrometers, and specialized fixtures are also used for quick checks and specific measurements. Maintaining these tight tolerances is fundamental for proper bearing fit and smooth engine operation.

Non-Destructive Testing (NDT): Uncovering Hidden Flaws

Beyond dimensional checks, non-destructive testing (NDT) methods are employed to detect any internal or surface flaws that could compromise the crankshaft's integrity without damaging the part itself. This is a critical aspect of ensuring the safety and reliability of the component.

• Magnetic Particle Inspection (MPI): This method is used to detect surface and near-surface cracks in ferromagnetic materials like steel crankshafts. The crankshaft is magnetized, and a fine magnetic powder (wet or dry) is applied. Any cracks will cause magnetic flux leakage, attracting the particles and making the flaw visible.
• Ultrasonic Testing (UT): UT uses high-frequency sound waves to detect internal flaws such as voids, inclusions, or internal cracks. The sound waves are transmitted into the crankshaft, and reflections from any discontinuities are analyzed to pinpoint the location and size of the flaw.
• Eddy Current Testing (ECT): ECT is often used for surface crack detection and material sorting, particularly on hardened surfaces. It uses electromagnetic induction to detect surface and near-surface defects.

Fatigue Testing: Proving Endurance

While not performed on every production crankshaft, prototype crankshafts and samples from production batches often undergo rigorous fatigue testing. This involves subjecting the crankshaft to repeated cyclic loads that simulate engine operating conditions, often exceeding them. The goal is to determine the crankshaft's fatigue limit and ensure it can withstand millions of stress cycles without failure. This data is crucial for validating design and manufacturing processes and for continuous improvement in crankshaft manufacturing techniques.

Innovations and the Road Ahead in Crankshaft Manufacturing

The world of crankshaft manufacturing is far from stagnant. As engine designs evolve towards higher power densities, stricter emission standards, and demands for improved fuel efficiency, the manufacturing processes for crankshafts continue to innovate. Many experts agree that the future will see even greater integration of advanced materials, automation, and sophisticated analytical tools.

Advanced Materials and Design Optimization

Research into new steel alloys with even higher strength-to-weight ratios and improved fatigue properties is ongoing. Composites, while not yet mainstream for crankshafts, are being explored for potential lightweighting benefits in niche applications. Furthermore, advancements in computational fluid dynamics (CFD) and finite element analysis (FEA) allow engineers to optimize crankshaft designs with unprecedented precision, predicting stress points and material behavior before a single piece of metal is cut. This simulation-driven design reduces development time and costs, leading to more robust and efficient crankshafts.

Automation, Robotics, and Industry 4.0

The trend towards greater automation and robotics in crankshaft manufacturing is accelerating. Robotic arms are increasingly used for material handling, loading/unloading machines, and even performing some machining operations, improving consistency and reducing human error. The integration of sensors, data analytics, and artificial intelligence, often referred to as Industry 4.0, is transforming factories into smart environments. This allows for real-time monitoring of manufacturing processes, predictive maintenance of machinery, and immediate identification of quality deviations, leading to higher efficiency and superior product quality. Frankly speaking, the level of interconnectedness in modern crankshaft production lines is truly remarkable.

Additive Manufacturing: A Glimpse into the Future

While not yet a primary method for mass-producing crankshafts due to material property limitations and cost, additive manufacturing (3D printing) holds immense potential for prototyping and creating highly complex internal structures that are impossible with traditional methods. Imagine a crankshaft with internal cooling channels or optimized weight distribution achieved through intricate lattice structures. While the technology needs to mature significantly for such critical components, it represents an exciting frontier for future crankshaft design and manufacturing possibilities.

Conclusion: The Unsung Hero of Engine Performance

The crankshaft, often hidden deep within the engine block, is truly an unsung hero. Its creation through the meticulous process of crankshaft manufacturing is a testament to the pinnacle of engineering and production excellence. From the careful selection of raw materials and the transformative power of forging or casting, through the incredible precision of multi-stage machining, to the vital heat treatments and exhaustive quality control, every step is critical. It's a continuous pursuit of perfection, ensuring that this vital component can withstand the immense forces it faces, day in and day out, for millions of cycles.

The next time you hear an engine purr or feel the surge of acceleration, take a moment to appreciate the intricate dance of precision and power that the crankshaft orchestrates. The art and science of crankshaft manufacturing are continually evolving, pushing the boundaries of what's possible, ensuring that the heart of our engines beats stronger, longer, and more efficiently than ever before.
