Have you ever peered under the hood of a car, perhaps while it's being serviced, and wondered about the intricate dance of components happening within the engine? Among the myriad of parts working tirelessly in concert, one stands out as absolutely fundamental, the unsung hero responsible for turning the explosive power generated by combustion into the rotational energy that ultimately propels your vehicle forward. This critical component is the crankshaft. It's the very backbone of most internal combustion engines, orchestrating the complex conversion of the pistons' up-and-down motion into the continuous spinning movement that drives the wheels. Understanding the crankshaft isn't just for mechanics or engineers; it provides a fascinating glimpse into the core mechanics of the engines we rely on every day, whether it's in a car, truck, boat, or even a generator. Frankly speaking, without a properly functioning crankshaft, the engine as we know it simply couldn't operate. Its design, material, and precision are paramount to an engine's performance, reliability, and lifespan. Let's delve deeper into what makes this component so vital and how it performs its essential task.
At its most basic level, the function of a crankshaft is ingeniously simple yet profound: it converts the reciprocating (back-and-forth) motion of the pistons into rotary (circular) motion. Think of it like pedaling a bicycle. Your legs move up and down (reciprocating), but the crank arms and chainring turn in a circle (rotary), driving the wheel. In an engine, the power stroke occurs when a mixture of fuel and air ignites in a cylinder, pushing the piston down with tremendous force. This force is transmitted through a connecting rod to a journal on the crankshaft. As the piston moves down, the connecting rod pushes on the crank journal, which is offset from the crankshaft's axis of rotation. This offset creates leverage, causing the crankshaft to rotate. This rotation, in turn, pulls other pistons up during their intake and compression strokes and pushes them down during exhaust. It’s a perfectly timed, continuous cycle. This transformation is arguably the most critical step in harnessing the energy released by combustion, turning potential energy into kinetic energy that can be used to do work, like spinning an alternator, powering a transmission, and eventually turning your wheels. Understanding this fundamental conversion process is key to appreciating the engineering marvel that is the internal combustion engine and the central role the crankshaft plays within it.
Anatomy and Design of a Crankshaft

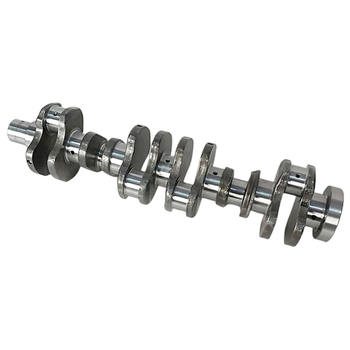

To understand how the crankshaft achieves this vital conversion, it helps to look closely at its structure. A typical crankshaft isn't just a simple rod; it's a complex series of bends and counterweights. The main journals are the parts that rest within the engine block's main bearings, supporting the crankshaft and allowing it to rotate smoothly around its central axis. Extending outward from the main journals are the crank arms or webs. These webs connect the main journals to the crankpin journals (also sometimes called rod journals). It's on the crankpin journals that the big end of the connecting rods attach. Because these crankpin journals are offset from the main axis, as the connecting rod pushes or pulls, it forces the crankshaft to spin. The distance between the main journal axis and the crankpin journal axis determines the stroke of the engine – the distance the piston travels up and down in the cylinder. A longer stroke generally means more torque. Interestingly enough, crankshafts also feature counterweights. These are heavy masses strategically placed opposite the crankpin journals. Their purpose is crucial: they balance the inertial forces created by the moving pistons and connecting rods. Without proper counterweighting, the engine would experience severe vibrations, leading to premature wear and potential damage. Finally, one end of the crankshaft usually has a flange to connect to the flywheel or flexplate (which links to the transmission), while the other end typically drives components like the timing gear, oil pump, and sometimes accessory belts via a pulley or harmonic balancer. Every part of this intricate design is optimized for strength, balance, and smooth operation under immense stress.
The materials used to manufacture crankshafts are chosen for their incredible strength, durability, and resistance to fatigue under cyclic loading – the constant pushing and pulling from the pistons. The two primary materials are forged steel and cast iron. Forged steel crankshafts are generally considered stronger and more durable, making them the preferred choice for high-performance engines, heavy-duty applications, and many modern production engines. The forging process involves heating solid steel and shaping it under immense pressure, aligning the grain structure of the metal for maximum strength. Cast iron crankshafts, while less expensive to produce, are still widely used in many standard passenger car engines. They are typically made from ductile iron, which has better properties than standard grey cast iron. The casting process involves pouring molten metal into a mold. After the basic shape is formed, whether by forging or casting, the crankshaft undergoes extensive machining. This involves grinding the journals to extremely precise dimensions and surface finishes to ensure smooth rotation within the bearings. Balancing is another absolutely critical step in the manufacturing process. Both static and dynamic balancing are performed to minimize vibrations. This involves carefully removing small amounts of material from the counterweights or adding small weights. A precisely balanced crankshaft is essential for engine longevity and smooth operation. The entire process, from raw material to finished product, requires meticulous attention to detail and advanced engineering to create a component capable of withstanding millions of revolutions under extreme conditions.
Types of Engine Crankshafts and Their Characteristics
While the fundamental principle remains the same, the specific design of a crankshaft varies significantly depending on the engine's configuration and the number of cylinders. One of the most common distinctions is based on the engine layout: inline engines (cylinders in a single row) use a relatively straightforward crankshaft design with all main and rod journals aligned along a single plane or varying planes depending on the number of cylinders and firing order. V-engines (cylinders in two banks forming a 'V') require a more complex crankshaft, often sharing crankpin journals between opposing cylinders in the 'V'. Flat or boxer engines (cylinders horizontally opposed) also have unique crankshaft designs tailored to their layout. Furthermore, within these configurations, there are crucial design choices like single-plane versus cross-plane crankshafts, particularly relevant for V8 engines. A single-plane crankshaft has crankpin journals arranged in a single plane (180 degrees apart), resulting in a distinct, higher-pitched exhaust note often associated with racing engines. A cross-plane crankshaft, on the other hand, has crankpin journals arranged in two planes 90 degrees apart, resulting in the smoother, lower rumble typical of many production V8s. The choice between these types affects engine balance, firing order, and exhaust characteristics. Understanding these different types of engine crankshafts highlights the specialized engineering required to optimize the crankshaft for various engine architectures, demonstrating that this seemingly simple part is highly adapted to its specific application. The number of cylinders and their arrangement directly dictate the complexity and layout of the crankshaft.
Given the immense forces and speeds involved, crankshafts are naturally subject to wear and potential failure, though they are designed to be incredibly robust. Common reasons for crankshaft failure include fatigue cracking, often starting at stress concentration points, particularly if the engine has been subjected to excessive loads or vibrations. Improper or insufficient lubrication is a major culprit; the crankshaft journals rely on a thin film of oil within the bearings to prevent metal-on-metal contact. If oil pressure drops, oil quality is poor, or the oil level is too low, excessive friction and heat can rapidly damage the journals and bearings, leading to catastrophic failure. Bearing failure, whether main bearings supporting the crankshaft or rod bearings connecting it to the pistons, puts immense stress on the crankshaft itself and is a leading cause of damage. Out-of-balance conditions, either from manufacturing defects or subsequent damage, can induce severe vibrations that accelerate wear and can eventually lead to fracture. External factors like hydro-lock (liquid entering the cylinder, preventing the piston from reaching the top of its stroke) can transmit shock loads strong enough to bend or even break a crankshaft. While crankshafts are built tough, they are not indestructible, and failures, though relatively rare in well-maintained engines, are almost always severe and costly. Recognizing the potential failure points is crucial for proper engine care and maintenance.
Diagnosing and Addressing Crankshaft Issues
So, how do you know if your crankshaft might be having trouble? While a complete crankshaft failure usually happens suddenly and dramatically, often with loud knocking noises and loss of power, there can be warning signs. One of the most common symptoms of impending crankshaft or bearing trouble is unusual engine noise, particularly a deep knocking sound that may change with engine speed. This often indicates excessive clearance in the main or rod bearings, allowing the crankshaft or connecting rod to pound against the bearing surface. Increased engine vibration, especially at certain RPM ranges, can also point to issues with crankshaft balance or alignment. Low oil pressure is another critical warning sign, as insufficient lubrication directly impacts crankshaft health. Metal shavings found in the engine oil or oil filter are a strong indicator of internal wear, potentially from bearings or the crankshaft journals themselves. Diagnosing crankshaft problems typically involves checking engine oil pressure, inspecting oil for contaminants, and listening carefully to engine noises. In more severe cases, it may require removing the oil pan to inspect the bearings directly or using specialized diagnostic equipment to analyze vibrations. Addressing these issues promptly is vital. Ignoring early symptoms can quickly lead to irreversible damage, turning a potentially repairable bearing problem into a complete engine rebuild or replacement due to crankshaft damage. Proactive checks, especially monitoring oil health and engine sounds, are your first line of defense.
Preventative maintenance plays a massive role in extending the life of your crankshaft and avoiding costly repairs. The single most important factor is maintaining a proper lubrication system. This means regular oil changes using the correct type and viscosity of oil recommended by the manufacturer. High-quality oil ensures a robust protective film between the journals and bearings, minimizing friction and heat. Always checking your oil level and keeping it within the recommended range is equally critical. Low oil levels can lead to insufficient oil pressure, starving the bearings and crankshaft of lubrication. Avoiding sustained high engine speeds or operating the engine under extreme loads for extended periods can also reduce stress on the crankshaft and bearings. Ensuring that the engine's cooling system is functioning correctly is important too, as excessive heat can degrade oil properties and lead to thermal expansion issues within the engine components, including the crankshaft and bearings. For those involved in engine assembly or repair, ensuring that the crankshaft and bearings are installed with the correct tolerances and torque specifications is paramount. Using proper assembly lubricants during installation is also a best practice. Essentially, treating your engine with care, sticking to maintenance schedules, and using quality fluids are the most effective ways to protect this vital component from premature wear and failure. Good maintenance is the best insurance policy for your engine's longevity.
High Performance and Crankshaft Repair
For enthusiasts and performance builders, the crankshaft is a key area for enhancement. High performance crankshaft design focuses on achieving greater strength, reduced weight, and improved balance to withstand higher engine speeds and loads. Materials like specialized forged steel alloys (e.g., chromoly) or even billet steel (machined from a solid block) are often used for maximum durability. Billet crankshafts, while more expensive, allow for greater flexibility in design and often result in a stronger, more precisely balanced component. Lightening the crankshaft through strategic machining can reduce rotating mass, allowing the engine to accelerate more quickly and reach higher RPMs, although care must be taken not to compromise strength. Balancing becomes even more critical in high-performance applications; precise dynamic balancing ensures smooth operation at extreme rotational speeds, minimizing harmful vibrations that can lead to failure. Stiffening the crankshaft design, sometimes by increasing journal overlap or web thickness, helps resist flex under high loads, which is essential for maintaining bearing health and overall engine integrity. These specialized crankshafts are a significant investment, but they are fundamental to unlocking the full potential of a high-performance engine, providing the robust foundation needed to handle increased power output and higher operational limits. The engineering behind these components is a fascinating blend of material science, stress analysis, and rotational dynamics.
When a crankshaft experiences wear, particularly on the journals, a decision must be made: repair or replace? For many standard applications with minor wear or scoring on the journals, crankshaft repair services, specifically regrinding, can be a viable option. Regrinding involves machining the journals down to a smaller, undersized diameter and then polishing them to the correct surface finish. This process requires specialized machinery and expertise to ensure the journals are perfectly round, straight, and within tight tolerances. If a crankshaft is reground, it must then be paired with corresponding undersized bearings to maintain the proper oil clearance. Regrinding is often cost-effective compared to replacing the entire crankshaft, especially for older or less common engines where new crankshafts may be expensive or difficult to source. However, regrinding is only possible if the wear is within certain limits and if the crankshaft hasn't suffered from severe damage like bending, cracking, or extreme heat damage. A crankshaft that is bent or cracked is generally irreparable and must be replaced. The decision to repair or replace depends on the extent of the damage, the cost difference, and the intended use of the engine. For high-performance applications or significantly damaged crankshafts, replacement with a new or professionally remanufactured unit is often the safer and more reliable choice to ensure engine integrity.
Addressing crankshaft-related problems, whether through precise repair or providing high-quality replacements, is something our company understands deeply. We recognize the critical role the crankshaft plays and the devastating consequences of its failure. Our expertise lies in providing solutions that restore engine integrity and performance. This could involve supplying meticulously manufactured replacement crankshafts that meet or exceed OEM specifications, ensuring durability and precise fitment. For situations where repair is the appropriate path, our services or recommended procedures emphasize the absolute necessity of precision machining and proper balancing. We understand that the clearances, finishes, and balance must be perfect to prevent accelerated wear and potential failure. Our focus is on using quality materials and adhering to stringent manufacturing or repair processes that address the root causes of crankshaft stress and wear. Whether you're dealing with standard engine maintenance, a performance build, or the unfortunate event of a crankshaft failure, we aim to provide the knowledge and the parts or services needed to get your engine running reliably again. We believe that by focusing on quality and precision at this fundamental level, we can help our customers avoid future issues and ensure the longevity of their engines. It's about more than just selling a part; it's about providing a solution that restores confidence in your engine's performance.
In conclusion, the crankshaft is undeniably the mechanical heart of your engine, the component that translates raw power into usable motion. Its intricate design, robust materials, and precise manufacturing are marvels of engineering. We've explored its function, its key components, how it's made, different types for various engine configurations, common failure points, signs of trouble, and the importance of meticulous maintenance. We also touched upon the specialized world of high-performance crankshafts and the considerations involved in crankshaft repair versus replacement. Keeping your engine's lubrication system in top shape and addressing any unusual noises or vibrations promptly are the most critical steps you can take to protect this vital component. A healthy crankshaft means a healthy engine, providing reliable power for whatever task you need it for. If you encounter crankshaft issues, understanding the options for repair or replacement is essential for making informed decisions. Remember, precision is key when dealing with internal engine components like the crankshaft. For more detailed information on crankshafts, their maintenance, or available replacement and repair options, please visit our official website: crankshaft
