Have you ever wondered what truly dictates how high an engine can rev? While many components play a role, the crankshaft sits at the very heart of this limitation. Its design isn't just about converting the up-and-down motion of pistons into the rotation that drives the wheels; it's fundamentally about survival under extreme stress. The engine rev limit, often seen as a measure of performance potential, is profoundly influenced, and in many ways dictated, by the specific characteristics of its crankshaft. Frankly speaking, pushing an engine beyond the rotational speeds its crankshaft can safely handle is a recipe for catastrophic failure. Understanding the intricate relationship between crankshaft geometry, material science, balancing, and the resulting RPM ceiling is crucial for engine builders, performance tuners, and anyone fascinated by the engineering marvel that is the internal combustion engine. It’s not merely about spinning faster; it’s about spinning faster reliably and efficiently, and that journey begins deep within the engine block, with the meticulously designed crankshaft acting as the ultimate gatekeeper of engine speed.

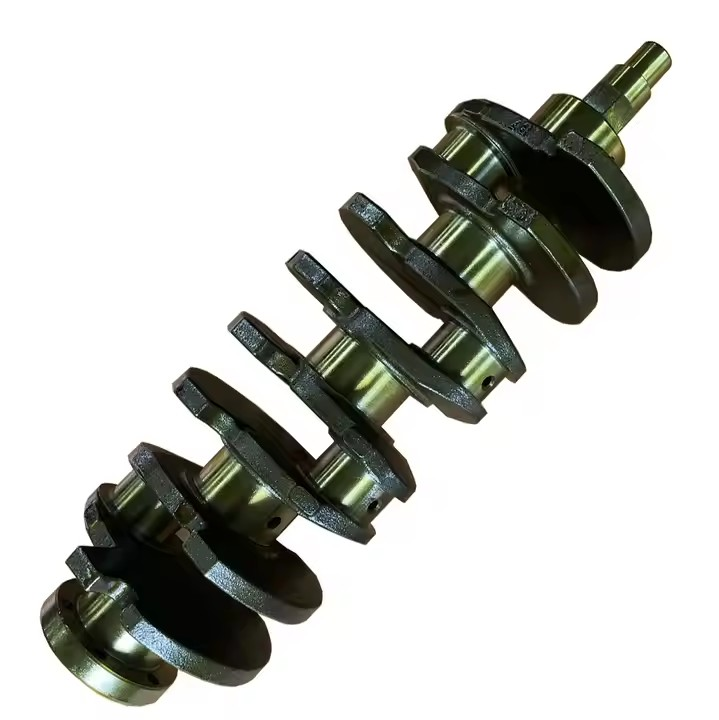

Crankshaft Fundamentals and High-RPM Challenges
At its core, the crankshaft performs a seemingly simple task: transforming the linear force generated by combustion pushing down on the pistons into useful rotational torque. However, the reality of this process, especially as engine speeds climb, is far from simple. Each power stroke imparts a significant bending load onto the crankpin and main journals, while the continuous rotation generates immense centrifugal forces, particularly from the connecting rods and pistons whipping around the crank axis. It's worth noting that inertial forces increase with the square of the engine speed – doubling the RPM quadruples these forces. This exponential increase places enormous stress on the entire crankshaft structure. Furthermore, the firing impulses from each cylinder don't arrive smoothly; they create torsional vibrations, essentially trying to twist the crankshaft back and forth along its length. This twisting action, if not properly accounted for and dampened, can lead to fatigue failure, especially at specific resonant frequencies. The challenge for engineers is to design a crankshaft that is strong enough to resist bending, stiff enough to minimize deflection (which affects bearing life), light enough to allow rapid acceleration, and balanced precisely enough to prevent destructive vibrations, all while operating reliably at potentially very high rotational speeds. The interplay of these forces – bending, torsion, inertia – defines the hostile environment the crankshaft must endure, making its design a critical factor in setting a safe and sustainable engine rev limit.
Core Crankshaft Design Parameters and RPM Potential
Several fundamental design parameters directly influence a crankshaft's ability to withstand high rotational speeds, thereby affecting the engine's maximum rev limit. One of the most critical is material selection and strength. Common crankshafts might be made from cast iron or nodular iron, suitable for lower-RPM, moderate-stress applications. However, for high-performance and high-RPM engines, stronger materials are essential. Forged steel offers significantly higher tensile strength and fatigue resistance compared to cast iron. Steels like 4340 or EN40B are popular choices. For extreme applications, such as top-tier motorsport, billet steel crankshafts are often employed. Machined from a solid piece of high-grade steel alloy, billet cranks offer the ultimate in strength, dimensional precision, and design flexibility, though at a considerable cost increase. Beyond steel, exotic materials like titanium have been used in cost-no-object racing engines to drastically reduce weight while maintaining strength, further pushing RPM potential. The chosen material's ability to resist deformation under load, withstand cyclic stress without fatiguing, and maintain its integrity at operating temperature directly impacts how much rotational speed the crankshaft can reliably handle. In essence, a stronger, more fatigue-resistant material provides a higher ceiling for the forces generated at extreme RPMs, forming the bedrock upon which a high-revving engine is built. Frankly speaking, skimping on material quality is asking for trouble when chasing high RPMs.
Another absolutely crucial parameter is the stroke length – the distance the piston travels from top dead center (TDC) to bottom dead center (BDC), determined by the offset of the crankpin journal from the crankshaft's centerline. This single dimension has a profound impact on piston speed and inertial forces. For any given engine RPM, a longer stroke means the piston must travel a greater distance in the same amount of time, resulting in higher average and peak piston speeds. Since inertial forces are proportional to the square of velocity, longer strokes generate significantly higher stresses on the piston, connecting rod, and crankshaft itself as RPM increases. This is why engines designed for high torque at lower speeds, like those in large trucks or industrial equipment, typically feature long strokes. Conversely, engines designed for high RPM operation, such as those found in racing motorcycles or Formula 1 cars, utilize very short strokes. This minimizes piston speed and inertial loads at high rotational velocities, allowing the engine to rev much higher before stresses become critical. There's a direct trade-off: a shorter stroke generally reduces displacement (and potentially torque) for a given bore size but enables a higher rev limit. Engineers must carefully balance stroke length against the desired powerband characteristics and the mechanical limitations imposed by piston speed and component stress, making stroke a primary determinant of an engine's RPM ceiling.
Beyond material and stroke, counterweights and balancing are paramount for high-RPM stability and longevity. As the pistons and connecting rods reciprocate and rotate, they create significant inertial forces and moments that shake the engine. Counterweights, strategically placed opposite the crankpins, are designed to offset these forces, primarily the rotating mass of the connecting rod's big end and a portion of the reciprocating mass (piston, pin, rings, small end of the rod). The goal is to achieve dynamic balance, ensuring the crankshaft rotates smoothly without inducing harmful vibrations throughout the engine structure and into the vehicle. Precise balancing becomes exponentially more critical as RPMs increase. Even minor imbalances can generate destructive shaking forces at high speeds, leading to bearing failure, component fatigue, and potentially catastrophic crankshaft breakage. Balancing can be internal (all counterweights on the crank itself) or external (using counterweights on the flywheel/flexplate and harmonic damper). High-performance engines often require meticulous balancing, sometimes to within a fraction of a gram. Techniques like knife-edging counterweights (shaping them aerodynamically) can reduce windage losses within the crankcase at high RPM, though the primary focus remains achieving perfect dynamic balance. An improperly balanced crankshaft acts as a major mechanical fuse, severely limiting the usable rev range long before material strength might become the limiting factor. In my experience, overlooking the precision of crankshaft balancing is one of the quickest ways to limit an engine's potential RPM.
Beyond the Basics: Geometry, Weight, and Vibration Control
Delving deeper into crankshaft design reveals further subtleties that impact high-RPM capability, including overall mass and rotational inertia. A lighter crankshaft inherently requires less energy to accelerate its rotation, allowing the engine to rev up more quickly and potentially reach higher speeds faster. This reduction in rotational inertia contributes to a more responsive engine feel. Lightweighting can be achieved through material choice (like using billet steel or even titanium instead of forged steel or cast iron), optimized counterweight design (removing unnecessary mass while maintaining balance), gun-drilling main or rod journals (creating hollow sections), and using smaller journal diameters where feasible without compromising strength or bearing capacity. However, reducing mass isn't without its trade-offs. A lighter crank might be less stiff, potentially leading to greater deflection under load if not designed carefully. It can also sometimes make achieving perfect balance more challenging or require denser (and often more expensive) Mallory metal slugs within the counterweights. Furthermore, while reduced inertia aids acceleration, it also means the crankshaft stores less rotational energy, which can sometimes affect idle stability or smoothness in certain applications. The quest for lower mass must always be balanced against the requirements for strength, stiffness, durability, and smooth operation, especially when targeting very high engine speeds where forces are magnified.
The geometric stiffness of the crankshaft itself is another critical factor, heavily influenced by features like journal overlap and stiffness. Journal overlap refers to the extent to which the main bearing journals and the connecting rod journals (crankpins) overlap when viewed from the end of the crankshaft. Greater overlap effectively creates a thicker, more robust bridge between the journals, significantly increasing the crankshaft's resistance to bending and torsional deflection under the immense forces of combustion and inertia. A stiffer crankshaft deflects less, which is crucial for maintaining proper alignment between the journals and their respective bearings. Excessive deflection can lead to uneven bearing wear, oil film breakdown, increased friction, and ultimately, bearing failure – a common failure mode in engines pushed beyond their designed limits. Crankshaft stiffness isn't just about the crank itself; it's part of a system. The design of the engine block's main bearing supports (e.g., 2-bolt vs. 4-bolt vs. 6-bolt main caps, deep skirt blocks, bedplates) also plays a vital role in supporting the crankshaft and preventing flex. For high-RPM engines, maximizing crankshaft stiffness through generous journal overlap, appropriate journal diameters, and robust main bearing support structures is essential for survival and reliability. It's a less visible aspect than stroke or material, but fundamentally important for handling the stresses of high rotational speeds.
Finally, controlling crankshaft twist, or torsional vibration damping, is indispensable for high-revving engines, particularly those with longer crankshafts like inline-six or V8 configurations. Each time a cylinder fires, it imparts a torque impulse onto the crankshaft. These impulses don't just spin the crank; they also excite torsional vibrations, causing the crankshaft to twist slightly back and forth along its axis. At certain engine speeds (resonant frequencies), these vibrations can amplify dramatically, leading to excessive stress concentrations, often near the front or rear of the crank, or at flywheel bolts. Uncontrolled torsional vibration can cause noise, accelerated wear on timing drives (gears or chains), and in severe cases, fatigue failure resulting in a snapped crankshaft. This is where the harmonic damper (often incorrectly called a harmonic balancer, though it contributes to balance too) comes in. Mounted on the front snout of the crankshaft, its purpose is to absorb and dissipate this torsional energy, typically using elastomer elements or viscous fluid shear. The effectiveness of the damper in controlling vibrations across the engine's intended speed range is critical. An inadequate or failing damper can effectively lower the engine's safe rev limit by allowing torsional stresses to reach dangerous levels. Choosing the right type and correctly tuned damper is thus a key consideration in enabling an engine to operate reliably at high RPMs. Many experts agree that neglecting torsional vibration control is a common oversight in performance engine builds.
Real-World Examples and Optimization Strategies
The dramatic effect of crankshaft design on rev limits becomes crystal clear when comparing vastly different engine applications. Consider a modern Formula 1 engine crankshaft versus a heavy-duty diesel truck crankshaft. The F1 crank is an exercise in extremity: it features an extremely short stroke to minimize piston speed, is likely machined from exotic high-strength billet steel or even a specialized alloy, incorporates meticulously optimized and often heavily undercut counterweights (sometimes using dense Mallory metal inserts for maximum effect in minimum space), features large journal diameters relative to the stroke for stiffness, and is balanced to incredible precision. The entire design philosophy revolves around minimizing mass and inertia while maximizing strength and stiffness to reliably withstand rotational speeds exceeding 15,000 RPM. In stark contrast, the diesel truck crankshaft prioritizes durability and torque production at low speeds. It will have a very long stroke to maximize leverage and displacement, be made from robust forged steel or even ductile iron, possess large, heavy counterweights designed for smooth operation under heavy load at low RPM (typically below 3,000 RPM), and prioritize sheer bulk and strength over lightweighting. Its rev limit is dictated not just by strength but by the rapidly escalating inertial forces from its long stroke and heavy reciprocating components. These two examples perfectly illustrate how design choices – material, stroke, balancing strategy, weight optimization – are tailored to the intended operating range, directly shaping the achievable and safe engine rev limit.
Understanding these intricate design principles is not just academic; it allows for targeted optimization and component selection to achieve specific performance goals. For instance, if an engine builder aims to increase the reliable rev limit of a performance engine, they must systematically address the potential crankshaft-related bottlenecks. This might involve selecting a crankshaft made from a stronger material (upgrading from cast to forged or billet steel), possibly choosing a shorter stroke configuration if packaging allows, investing in extremely precise dynamic balancing, ensuring adequate journal overlap and main bearing support, and selecting an appropriate high-performance harmonic damper capable of controlling torsional vibrations at the target higher speeds. Our company's expertise plays a crucial role here. We leverage advanced material science knowledge and state-of-the-art precision manufacturing techniques to produce crankshafts optimized for demanding high-RPM applications. Whether it's developing custom crankshaft designs tailored to unique engine builds or providing high-strength, meticulously balanced aftermarket crankshafts engineered to exceed OEM specifications, our products and services directly address the challenges of increasing an engine's rev limit safely and reliably. We help clients translate theoretical understanding into tangible performance gains. Have you ever considered how much untapped RPM potential might be locked away in your engine due to crankshaft limitations?
Conclusion: The Crankshaft as the Engine's RPM Gatekeeper
In conclusion, it's abundantly clear that the crankshaft is far more than just a component converting linear motion to rotation; it acts as the fundamental gatekeeper determining an engine's ultimate rotational speed capability. The effect of crankshaft design on the engine rev limit is direct, profound, and multifaceted. Every key design parameter – from the inherent strength and fatigue resistance of the chosen material, the crucial influence of stroke length on piston speed and inertial forces, the absolute necessity of precise counterweights and balancing for high-speed stability, to the subtler but equally critical aspects of overall mass, geometric stiffness provided by journal overlap, and the control of potentially destructive torsional vibrations – plays a vital role. Pushing engine speeds higher demands a crankshaft specifically engineered to withstand the exponentially increasing stresses involved. As we've seen, design choices vary dramatically based on the intended application, from low-revving torque monsters to high-strung racing engines. Optimizing a crankshaft for a higher rev limit requires a holistic approach, carefully considering all these interconnected factors. Ultimately, unlocking an engine's peak RPM potential while ensuring its longevity hinges significantly on the quality, precision, and tailored design of this critical internal component. What's the single most important crankshaft characteristic you believe limits RPM in most street performance engines?
