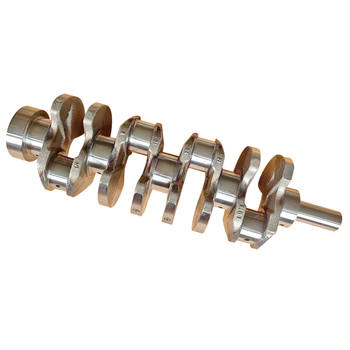

The crankshaft is often called the backbone of an internal combustion engine, and for good reason. It's the crucial component that converts the linear motion of the pistons into the rotational force needed to power a vehicle or machine. Given its central role and the immense stresses it endures, a crankshaft failure is almost always catastrophic, leading to extensive engine damage, costly repairs, significant downtime, and potentially dangerous situations. Frankly speaking, the history of engine development is punctuated by instances where crankshafts failed unexpectedly, sometimes with widespread consequences. However, these failures, while unfortunate, have been invaluable learning opportunities. By meticulously analyzing famous crankshaft failures—understanding the why and how—engineers and manufacturers have gleaned critical lessons that have profoundly shaped modern engine design, material science, manufacturing processes, and maintenance protocols. Studying these case histories isn't just an academic exercise; it's a vital part of ensuring the reliability and safety of engines we depend on daily. It's through understanding past mistakes that we build more robust and dependable machines for the future, highlighting the importance of continuous learning in engineering.
Understanding the Stresses and Failure Mechanisms
Before diving into specific case studies, it's essential to appreciate the incredibly demanding environment a crankshaft operates within. Have you ever truly considered the forces at play inside a running engine? Each power stroke delivers a tremendous, sudden force onto the connecting rod and, subsequently, the crankshaft journal. This creates significant bending stresses. Simultaneously, the crankshaft must transmit the engine's torque, subjecting it to immense torsional stresses, essentially twisting forces. These forces aren't constant; they fluctuate rapidly with engine speed and load, occurring millions, even billions, of times over an engine's lifespan. This cyclic loading makes fatigue the most common enemy of crankshafts. Microscopic cracks can initiate at stress concentration points—like fillet radii between journals and webs, or oil holes—and propagate slowly over time until the remaining material can no longer withstand the load, leading to sudden fracture. Other failure modes include bearing failures (which can cause localized overheating and seizure or introduce debris that damages journals), material defects (like inclusions or improper heat treatment), design flaws (inadequate strength or poor stress distribution), and even improper installation or maintenance (like over-torquing bolts or using incorrect lubricants). It’s worth noting that torsional vibration, if not properly dampened, can also induce fatigue stresses far exceeding design limits, leading to premature failure, particularly in long crankshafts found in inline-six or larger engines.
Early Automotive Engine Woes: Lessons in Materials and Lubrication
Looking back at the dawn of the automotive age provides some stark examples of crankshaft challenges. While perhaps not "famous" individual failures documented like modern incidents, the collective experience of early engine builders revealed fundamental hurdles. In the era of the Ford Model T and its contemporaries, metallurgy was still relatively primitive compared to today's standards. Crankshafts were often made from basic carbon steels with less control over purity and grain structure. Manufacturing processes lacked the precision we now take for granted, leading to inconsistencies and built-in stress risers. Consequently, crankshaft breakages were, frankly speaking, far more common. Early designs often featured smaller fillet radii and less sophisticated web contouring, inadvertently creating areas where stress could concentrate. Lubrication systems were also rudimentary, often relying on splash lubrication which might not provide a consistent, pressurized oil film, especially under heavy load or at higher speeds. This increased friction, wear, and the risk of bearing failure, which could directly lead to crankshaft damage. What did the industry learn? Firstly, the crucial importance of material quality and consistency became evident, driving advancements in steel alloys and forging techniques. Secondly, the need for robust, pressurized lubrication systems was undeniable. Thirdly, designs evolved to incorporate larger fillet radii and smoother transitions to minimize stress concentrations, a foundational principle still critical today. These early struggles laid the groundwork for understanding basic crankshaft requirements.
Refining the Design Blueprint
The iterative process of design refinement spurred by these early failures was remarkable. Engineers learned to think not just about static strength but also about dynamic loads and fatigue life. Concepts like balancing became more critical as engine speeds increased; an unbalanced crankshaft creates significant vibrations that add to the cyclic stress. The shape of the crankshaft webs and counterweights evolved to provide better balance and reduce bending moments. The placement and design of oil passages were optimized to ensure adequate lubrication reached the highly loaded bearing surfaces under all operating conditions. Heat treatment methods, though basic initially, started to be employed to enhance surface hardness and wear resistance on journals. It’s a testament to early engineers that they managed to achieve workable designs despite the limitations of their tools and knowledge. The lessons learned weren't just about fixing immediate problems; they were about developing a deeper, more fundamental understanding of how these components behaved under real-world operating conditions. This empirical learning, driven by failure analysis, was the bedrock upon which more sophisticated engineering practices were built, emphasizing that failure is often a harsh but effective teacher in the world of mechanical design.
High-Performance Racing: Pushing the Limits
The world of motorsports presents a unique crucible for engine components, especially crankshafts. Here, the relentless pursuit of power and speed pushes designs and materials to their absolute limits, often resulting in spectacular, albeit instructive, failures. In racing engines, crankshafts face significantly higher rotational speeds, greater combustion pressures, and aggressive power delivery compared to passenger cars. The demand for lightweight components to improve engine response and reduce overall vehicle weight adds another layer of complexity. Failures in this arena are often related to extreme fatigue caused by phenomenal stress levels or, very commonly, destructive torsional vibrations. As engineers extract more power, the torsional pulses from combustion become stronger, potentially exciting natural resonant frequencies of the crankshaft if not properly managed. This resonance can amplify torsional stress dramatically, leading to rapid fatigue failure, sometimes in a surprisingly short amount of time. Lightweight designs, while desirable for performance, can sometimes compromise stiffness or fatigue strength if not executed flawlessly. Material selection becomes paramount, with high-strength alloy steels, sophisticated forging processes, and advanced surface treatments like nitriding becoming standard practice. Lessons learned from racing failures have significantly advanced our understanding of torsional vibration analysis, leading to the development of highly effective torsional dampers (harmonic balancers) and sophisticated crankshaft designs optimized for both strength and weight using tools like Finite Element Analysis (FEA). Frankly speaking, many technologies improving the reliability of everyday car engines originated from solving problems encountered at the racetrack.
Catastrophes in Large Diesel Engines: Scale and Endurance
When a crankshaft fails in a large marine or industrial diesel engine—powering ships, locomotives, or power plants—the consequences can be immense, both financially and logistically. These engines operate under demanding conditions, often running continuously for thousands of hours between maintenance intervals. The sheer scale of these crankshafts, sometimes weighing many tons, introduces unique challenges. Misalignment between main bearings, perhaps due to hull flexing in ships or foundation settling, can impose severe bending stresses not accounted for in the original design. Bearing failures, if undetected, can lead to rapid overheating and seizure, often resulting in catastrophic crankshaft fracture. Given the long operating cycles, fatigue remains a primary concern, initiated by undetected defects or accumulated operational stress. One famous area of concern has been fillet radii at the journals, where improper machining or grinding during manufacturing or overhaul can introduce stress raisers. Lessons from large diesel failures have heavily emphasized the importance of predictive maintenance and condition monitoring. Techniques like lubricating oil analysis (checking for wear metals), vibration analysis (detecting imbalance or bearing issues), and non-destructive testing (NDT) methods like ultrasonic or magnetic particle inspection during overhauls are now standard practice. Furthermore, strict adherence to alignment procedures during installation and after major work is critical. The high cost of failure has driven significant investment in robust design verification, quality control during manufacturing, and diligent through-life maintenance strategies. It’s worth noting that the investigation process for these large-scale failures is often incredibly thorough, yielding deep insights.
The Crucial Role of Material Science and Manufacturing Precision
Many historical crankshaft failures can be traced back to limitations in materials or manufacturing techniques available at the time. As metallurgy evolved, so did crankshaft reliability. The transition from basic cast irons or simple steels to high-strength forged steel alloys offered dramatic improvements in toughness, fatigue strength, and consistency. Forging aligns the grain structure of the metal, making it better able to resist crack propagation compared to casting. Specific alloys incorporating elements like chromium, nickel, and molybdenum were developed to enhance strength and durability under high temperatures and stresses. Heat treatment processes became far more sophisticated. Techniques like induction hardening or nitriding are now commonly used to create a very hard, wear-resistant surface on the bearing journals while maintaining a tougher, more ductile core. This combination is ideal for resisting surface wear while also handling the bending and torsional loads without becoming brittle. Manufacturing precision also took giant leaps forward. Computer Numerical Control (CNC) machining allows for incredibly tight tolerances on journal diameters, roundness, and crucially, the geometry of fillet radii. A poorly machined fillet can act as a significant stress riser, essentially a starting point for a fatigue crack. Proper grinding and polishing techniques are vital to ensure a smooth surface finish, free from microscopic defects that could initiate failure. In my experience, consistent quality control throughout the manufacturing process, from raw material inspection to final dimensional checks, is non-negotiable for producing reliable crankshafts.
Design Evolution Fueled by Analysis and Simulation
Why is modern engine design so reliant on computational tools? A large part of the answer lies in learning from past physical failures. Early crankshaft design was often iterative and empirical – build it, test it, see if it breaks, then try to make it stronger. While effective over time, this process was slow, expensive, and sometimes resulted in over-engineered, heavy components. The advent of powerful computing brought tools like Finite Element Analysis (FEA), revolutionizing the design process. FEA allows engineers to create a detailed digital model of the crankshaft and simulate how it will respond to various loads and stresses. They can pinpoint areas of high stress concentration, visualize deformation under load, and predict fatigue life with remarkable accuracy, all before cutting any metal. This enables optimization – designs can be made stronger where needed and lighter where possible, without compromising reliability. Engineers can experiment with different fillet radii, web shapes, counterweight configurations, and even material choices virtually. Simulation also plays a critical role in analyzing and mitigating torsional vibrations. Complex multi-mass torsional models can predict the engine's vibrational behavior and help engineers design effective dampers or modify crankshaft stiffness to avoid destructive resonances. Interestingly enough, these simulation capabilities are a direct result of needing better ways to understand and prevent the kinds of failures observed in earlier generations of engines. This predictive power significantly reduces the risk of unforeseen failures in new engine designs.
Learning Through Lubrication, Maintenance, and Monitoring
It's tempting to focus solely on design and materials when discussing crankshaft failures, but operational factors and maintenance practices play an equally critical role. A perfectly designed and manufactured crankshaft can still fail prematurely if not properly cared for. Lubrication is paramount. Using the correct type and grade of oil, ensuring it remains clean (regular oil and filter changes), and maintaining adequate oil pressure are fundamental. Oil doesn't just lubricate; it cools bearings and carries away wear particles. Oil analysis is a powerful diagnostic tool, allowing technicians to detect abnormal wear metals (indicating bearing distress, for instance) or coolant contamination long before catastrophic failure occurs. Vibration analysis is another key technique, particularly for larger engines or critical machinery. Changes in vibration signatures can indicate developing problems like imbalance, misalignment, or bearing defects. Regular visual inspections during maintenance can sometimes spot issues like fretting corrosion at flywheel mounting flanges or signs of overheating. Perhaps one of the most overlooked aspects is adherence to proper procedures during assembly and repair. Correctly tightening main bearing cap bolts and connecting rod bolts to the specified torque and sequence is absolutely crucial. Uneven or incorrect torque can distort bearing bores, leading to localized pressure points, oil film breakdown, and eventual bearing/crankshaft failure. Many experts agree that a significant portion of crankshaft failures seen in the field today have roots in maintenance errors rather than inherent design flaws, underscoring the importance of skilled technicians and rigorous procedures.
Applying Lessons to Ensure Future Reliability: Our Contribution
The cumulative knowledge gained from decades of analyzing crankshaft failures forms the bedrock of modern engine reliability. The core lessons are clear: meticulous design validation using advanced simulation, selection of appropriate high-quality materials, precision manufacturing with stringent quality control, and diligent, informed maintenance practices are all essential. Have you ever wondered how manufacturers translate these lessons into tangible improvements? It involves integrating this knowledge into every stage of the product lifecycle. At our company, we take these lessons to heart. Whether it's in the sophisticated engine components we supply or the advanced diagnostic and condition monitoring solutions we offer, the goal is always to preempt potential failures identified through historical analysis. Our engineering processes leverage tools like FEA to optimize component strength and durability, directly addressing historical weak points like stress concentrations at fillets. We utilize advanced materials and manufacturing techniques learned through industry experience to ensure robustness. Furthermore, our diagnostic tools and services are designed to empower users with the insights needed for effective predictive maintenance, helping to catch issues like lubrication breakdown or bearing wear—common culprits in past crankshaft failures—before they escalate. By incorporating these hard-won lessons, we strive to provide solutions that enhance engine longevity and operational safety, contributing to the ongoing evolution of more reliable power systems.
Conclusion: Learning from the Breaks
In conclusion, the study of famous crankshaft failures offers far more than just historical anecdotes. Each fracture, each seizure, each vibration-induced break represents a critical data point in the ongoing quest for engine perfection. From the rudimentary challenges faced by early automotive pioneers to the complex issues encountered in high-performance racing and massive industrial engines, the lessons learned have been instrumental. They have driven advancements in material science, fostered revolutions in manufacturing precision, spurred the development of powerful analytical tools like FEA, and underscored the undeniable importance of rigorous maintenance and monitoring. Understanding why crankshafts failed in the past allows engineers, manufacturers, and maintenance professionals to proactively implement strategies that prevent similar failures in the future. It's a continuous cycle of analysis, innovation, and improvement. While crankshaft failures can be dramatic and costly, the knowledge gleaned from them is invaluable, ultimately leading to the safer, more powerful, and remarkably reliable engines we often take for granted today. The legacy of these failures is, paradoxically, the enhanced strength and endurance of their successors.
