Have you ever peered into the depths of an engine block, marveling at the intricate dance of moving parts, and felt slightly overwhelmed by the jargon used to describe them? For many engine enthusiasts, the crankshaft remains one of the most critical yet potentially confusing components. It’s the veritable backbone of the internal combustion engine, responsible for the fundamental task of converting the up-and-down motion of the pistons into the rotational force that ultimately powers the vehicle. Understanding the language used to describe this vital part is not just for professional mechanics; it empowers hobbyists, builders, and tuners to make informed decisions, diagnose issues more effectively, and truly appreciate the engineering marvel that is the modern engine. This guide aims to cut through the complexity, breaking down essential crankshaft terminology into understandable concepts. We'll explore the various parts, measurements, and processes associated with crankshafts, providing clarity and building confidence for anyone passionate about what happens inside the heart of an engine. Frankly speaking, getting to grips with these terms opens up a deeper level of understanding and appreciation for engine mechanics.

The Foundation: What Exactly is a Crankshaft?

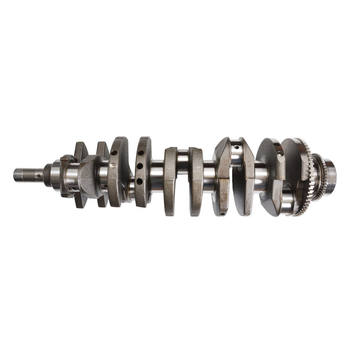

　　At its core, the crankshaft is a precisely engineered shaft featuring a series of cranks and crankpins, designed to perform that magical conversion of linear motion into rotary motion. Think of it like the crankset on a bicycle, where your legs pushing down (linear motion) turn the pedals and crank arms (the 'cranks') to rotate the chainring (rotary motion). In an engine, the pistons, driven down by combustion pressure, push on connecting rods, which are attached to offset journals on the crankshaft. This downward force makes the crankshaft spin. It resides within the engine block, typically supported by several main bearings. Its rotation not only drives the wheels (via the transmission) but also operates the camshaft(s) (via a timing chain or belt) which control the engine's valves, and powers auxiliary components like the oil pump, water pump, and alternator. The geometry of the crankshaft, specifically the distance the connecting rods move away from the crankshaft's central axis, directly determines the engine's stroke, a fundamental factor in calculating engine displacement. It’s worth noting that the loads placed on a crankshaft are immense – torsional stresses from converting power, bending forces from combustion, and inertial loads from the reciprocating mass – demanding incredible strength and precision engineering.

Decoding the Anatomy: Core Crankshaft Components

　　To really understand crankshafts, we need to dissect their anatomy. Several key features define its structure and function. First are the Main Journals. These are the perfectly cylindrical surfaces that align with the crankshaft's central axis of rotation. They sit within the main bearings housed in the engine block (and sometimes a main bearing girdle or cap structure), allowing the crankshaft to rotate smoothly while being securely supported. The number of main journals typically corresponds to the number of cylinders plus one in inline engines, or follows specific patterns in V-engines to ensure stability. Then, offset from this main axis, are the Rod Journals, often called crankpins. These are the journals to which the 'big end' of the connecting rods attach. As the crankshaft rotates, the rod journals prescribe a circular path around the main journal axis, pulling and pushing the connecting rods and pistons. The precision ground finish and specific diameter of both main and rod journals are critical for maintaining proper oil film thickness and bearing life. Oil passages are intricately drilled through the crankshaft, delivering pressurized oil from the main bearings to the rod bearings, a vital lubrication pathway. Any imperfections here can lead to catastrophic engine failure. Many experts agree that journal integrity is paramount.

Webs and Counterweights: Balancing the Act

　　Connecting the main journals to the rod journals are the Webs, sometimes referred to as crank cheeks or arms. These sections form the 'throw' of the crank – the lever arm that translates the force. The shape and thickness of the webs are crucial for the crankshaft's overall strength and rigidity, designed to withstand the immense bending and torsional forces during operation. Integral to, or attached to, the webs opposite the rod journals are the Counterweights. Imagine the forces involved: pistons and connecting rods accelerating rapidly, stopping, and changing direction thousands of times per minute. This creates significant inertial forces and vibrations. The counterweights are strategically placed masses designed to offset the mass of the piston/rod assembly connected to the corresponding rod journal. Their purpose is to balance these forces, ensuring smoother engine operation, reducing stress on the main bearings, and minimizing harmful vibrations that could otherwise shake the engine apart. The design and placement of counterweights are carefully calculated based on the weight of the pistons, pins, rings, and connecting rods (specifically, the rotating and reciprocating portions). In high-performance applications, counterweight shaping (like knife-edging) can also be employed to reduce windage – the parasitic drag caused by the crank churning through oil mist in the crankcase at high RPMs. To be honest, proper balancing is non-negotiable for engine longevity and performance.

Geometry Matters: Stroke, Throw, and Overlap

　　The geometry of a crankshaft dictates several fundamental engine characteristics. Perhaps the most talked-about dimension is the Stroke. As mentioned earlier, this is the total distance the piston travels from its highest point (Top Dead Center or TDC) to its lowest point (Bottom Dead Center or BDC) within the cylinder. The stroke is determined directly by the crankshaft's design, specifically by twice the distance between the centerline of the main journals and the centerline of the rod journals. This distance itself is known as the Throw. So, Stroke = 2 x Throw. Changing the stroke (usually by using a crankshaft with a different throw, often called a 'stroker' crank) is a common way to increase engine displacement (since Displacement = Bore Area x Stroke x Number of Cylinders), which generally leads to more torque. Another critical geometric aspect, especially concerning strength, is Journal Overlap. This refers to the amount by which the main journal diameter and the rod journal diameter overlap when viewed from the end of the crankshaft. Greater overlap means there's more material connecting the main and rod journals through the web, significantly increasing the crankshaft's torsional rigidity and resistance to bending. This is particularly important in engines designed for high power output or high RPMs, where the stresses are magnified. Insufficient overlap can make a crankshaft feel 'whippy' and prone to failure under load.

Materials and Manufacturing: Forged vs. Cast

　　Not all crankshafts are created equal, and much of the difference lies in how they are made and what they are made from. The two primary manufacturing methods are casting and forging. Cast crankshafts are typically made from ductile iron or nodular iron. Molten metal is poured into a mold shaped like the crankshaft. This process is relatively inexpensive and suitable for most standard passenger car engines where stresses are moderate. Cast cranks offer good vibration damping but generally have lower tensile strength and fatigue resistance compared to forged units. In contrast, Forged crankshafts are made from a solid billet of steel alloy (like 4340 or 5140 steel). This billet is heated and then pounded or pressed into shape using powerful hydraulic presses or hammers. This forging process aligns the steel's internal grain structure, resulting in a component with significantly higher tensile strength, ductility, and fatigue resistance. Forged cranks are the preferred choice for high-performance, racing, diesel, and forced induction engines where they endure much higher combustion pressures and RPMs. Interestingly enough, while stronger, forged cranks can sometimes transmit more vibration than cast ones. Surface treatments are also common, such as Nitriding (a heat treatment process diffusing nitrogen into the surface) or induction hardening, applied primarily to the journal surfaces to increase hardness and wear resistance, extending the life of both the crank and the bearings.

Getting Technical: Advanced Terminology Explained

　　Beyond the basics, several other terms crop up, especially when discussing high-performance or modified crankshafts. One crucial detail is the Fillet Radius. This refers to the small, curved transition zone where a journal surface meets the crank web. Instead of a sharp 90-degree corner, which would create a major stress riser (a point where stress concentrates and cracks are likely to form), a smooth radius is machined. The size and quality of this fillet radius are critical for fatigue life. Some performance cranks feature larger radii or special 'rolled fillets' (a cold-working process) to further enhance strength. Undercut fillets are sometimes used to provide clearance for bearing edges but need careful design. Another term is Cross-Drilling. Standard crankshaft oiling typically feeds oil from the main journals to the rod journals through angled passages. Under high G-forces (like hard cornering or acceleration/deceleration), oil flow could potentially be interrupted. Cross-drilling involves adding an additional intersecting oil passage within the main journal feeding the rod journal passage. This ensures the rod bearing is continuously supplied with oil regardless of the crank's orientation or the G-forces acting on the oil. Knife-Edging refers to machining the leading edge of the counterweights into a sharper, more aerodynamic profile to reduce windage and oil drag at high RPM, potentially freeing up a small amount of horsepower. Lastly, Balancing is critical. While counterweights provide static balance, dynamic balancing involves spinning the crankshaft on specialized equipment and adding or removing small amounts of weight (often by drilling holes in the counterweights) to ensure it rotates smoothly without vibration throughout the RPM range. Imbalance leads to destructive harmonics and bearing wear.

Reading the Specs: Understanding Clearances and Tolerances

　　When building or rebuilding an engine, simply having the right parts isn't enough; they need to fit together correctly within specified tolerances. For crankshafts, several measurements are critical. Bearing Clearance is perhaps the most vital. This is the small gap between the crankshaft journal (main or rod) and the bearing shell installed in the block or connecting rod. This space is filled with a thin film of pressurized oil, which prevents metal-to-metal contact, reduces friction, and carries away heat. The clearance must be precisely within the manufacturer's specifications (typically measured in thousandths of an inch or millimeters using tools like Plastigage or micrometers and bore gauges). Too little clearance, and the oil film can break down, leading to seizure. Too much clearance, and oil pressure drops, leading to inadequate lubrication and potential bearing damage or noise. Another key spec is Crankshaft End Play. This refers to the amount of front-to-back (axial) movement the crankshaft has within the engine block. It's controlled by the thrust bearing, usually integrated with one of the main bearings. Excessive end play can cause issues with clutch operation or timing gear alignment, while insufficient end play can lead to thrust bearing failure. This is typically checked using a dial indicator. Finally, Runout refers to how 'straight' the crankshaft is. Main journal runout is checked by supporting the crank on its end main journals and rotating it while measuring the deviation of the center main journal(s) with a dial indicator. Excessive runout (a bent crank) can cause vibrations and rapid bearing wear. In my experience, meticulously checking these clearances and specifications is non-negotiable for a reliable build.

When Things Go Wrong: Common Crankshaft Issues

　　Despite being robust components, crankshafts can suffer from various problems, especially under harsh conditions or due to other engine failures. Understanding common issues helps in diagnosis and prevention. Bearing Failure is arguably the most common problem associated with crankshafts, though often the bearing fails first, potentially damaging the journal surface. Signs include knocking or rumbling noises from the engine's bottom end, low oil pressure, and metallic debris found in the engine oil or filter. Causes range from oil starvation and contamination to improper clearances or overloading. If a bearing fails severely, it can score or overheat the journal, often requiring the crankshaft to be reground (machined to a slightly smaller diameter) or replaced. A Bent Crankshaft is less common but can result from severe detonation, hydraulic lock (liquid entering the cylinder), sudden engine stoppage, or extreme imbalance. A bent crank will cause significant vibration and rapidly destroy main bearings. Checking runout is essential if a bend is suspected. Cracking is another serious failure mode, typically originating from stress risers like fillet radii, keyways, or oil holes. Cracks can develop due to manufacturing defects, extreme stress cycles (common in racing), or previous damage. A cracked crankshaft is unsafe and requires immediate replacement. Have you ever encountered an engine failure you suspected was related to the crankshaft?

Choosing Wisely: Selecting the Right Crankshaft

　　Understanding all this terminology becomes particularly practical when selecting a crankshaft for an engine build or upgrade. The choice between cast and forged depends heavily on the intended application. For a stock rebuild or a mild street performance engine operating at moderate RPM and power levels, a high-quality cast crankshaft is often perfectly adequate and cost-effective. However, for engines seeing forced induction (turbocharging or supercharging), nitrous oxide, high compression ratios, or sustained high-RPM use (like in racing), the superior strength and fatigue resistance of a forged steel crankshaft become essential for reliability. Considerations like stroke length (stock vs. stroker), journal sizes (standard or undersized for reground cranks), material specification (e.g., 4340 steel), and the quality of manufacturing (machining tolerances, fillet radii quality, balancing) are all critical factors informed by the terminology we've discussed. Ensuring compatibility with your chosen connecting rods, pistons, and bearings is paramount. Our company prides itself on providing components manufactured to exacting standards, recognizing that the crankshaft is the foundation of a powerful and reliable engine. Making the right choice here, based on a solid understanding of the terms and specifications, prevents costly failures down the road. It’s about matching the component capability to the demands that will be placed upon it.

Conclusion: Empowering the Engine Enthusiast

　　Demystifying crankshaft terminology does more than just expand your technical vocabulary; it deepens your understanding of how engines work and empowers you as an enthusiast. From recognizing the function of main and rod journals, appreciating the balancing act of counterweights, understanding the implications of stroke and journal overlap, to discerning the difference between cast and forged manufacturing, each term unlocks a piece of the complex puzzle that is the internal combustion engine. Knowing about clearances, runout, and potential failure modes allows for more informed building, tuning, and troubleshooting. Whether you're rebuilding a classic V8, tuning a modern turbocharged four-cylinder, or simply curious about the heart of your machine, grasping this language transforms complex mechanics into accessible knowledge. It allows for better communication with machinists and parts suppliers, aids in diagnosing problems, and ultimately enhances the enjoyment and success of any engine-related project. Why is this understanding so valuable? Because the crankshaft, while often hidden from view, is fundamental to performance, reliability, and the very character of an engine. Continued learning in this area truly pays dividends for any dedicated engine enthusiast.
