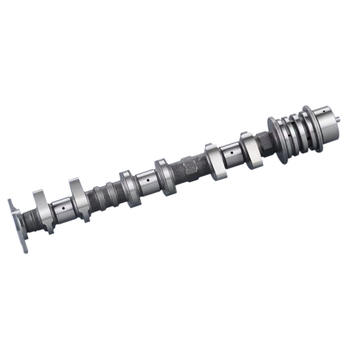

Have you ever truly considered the intricate dance of components happening inside an internal combustion engine every time you turn the key or hit the throttle? At the very heart of this mechanical symphony lies a component of remarkable strength and precision: the crankshaft. It's often called the backbone or the heart of the engine, and for good reason. This meticulously engineered shaft performs the critical task of converting the linear, up-and-down motion of the pistons into the rotational force needed to power a vehicle, generator, or any other machine driven by such an engine. Without a properly functioning crankshaft, the engine simply cannot operate. Its design must withstand immense forces, including the explosive pressure from combustion and the inertial loads from rapidly accelerating and decelerating pistons and connecting rods, all while spinning thousands of times per minute. Understanding the crankshaft isn't just for mechanics or engineers; it offers fascinating insight into the very essence of how power is generated and delivered in the engines that shape much of our modern world. Its reliability is paramount, influencing everything from fuel efficiency and smoothness of operation to the overall lifespan of the engine itself.
The Fundamental Role: Converting Motion into Power
So, how exactly does this conversion happen? It's a beautiful example of mechanical ingenuity. The pistons, driven downwards by the expanding gases during the power stroke, are connected to the crankshaft via connecting rods. These rods attach not to the main axis of the crankshaft, but to offset journals called crankpins or rod journals. Think of it like pedaling a bicycle: your leg pushes down (linear motion), but because the pedal is offset from the central hub, it creates rotation. Similarly, as the piston pushes the connecting rod down, the offset crankpin forces the crankshaft to rotate. This process repeats for each cylinder in its firing order, creating a continuous rotational output. The main sections of the crankshaft rotate within the engine block, supported by main bearings, while the crankpins rotate within the big end of the connecting rods, supported by rod bearings. Proper lubrication in these areas is absolutely critical, forming a thin film of oil that prevents metal-on-metal contact despite the huge forces involved. Frankly speaking, understanding the engine crankshaft function is key to appreciating the entire power generation cycle. The precision of the offsets (determining the engine's stroke), the smoothness of the journals, and the overall rigidity of the shaft are all vital for efficient and reliable power conversion.
Materials Matter: The Foundation of Strength
The immense stresses placed upon a crankshaft demand materials of exceptional strength and durability. The choice of material significantly impacts the crankshaft's performance, longevity, and, naturally, its cost. Historically, and still common in many standard production engines, cast iron (specifically nodular or spheroidal graphite cast iron) has been widely used. Casting involves pouring molten metal into a mold shaped like the crankshaft. This method is relatively cost-effective for mass production and offers good vibration damping properties. However, cast crankshafts generally have lower tensile strength and fatigue resistance compared to their forged counterparts. For higher performance applications, or engines subjected to greater loads (like diesel engines or racing engines), forged steel is the preferred material. Forging involves shaping a solid billet of steel alloy under extreme pressure, often using multiple hammer blows or presses. This process aligns the grain structure of the steel, resulting in significantly higher strength, toughness, and fatigue resistance. Various steel alloys, often containing chromium, nickel, molybdenum, or vanadium, are used to achieve specific properties. It's worth noting that the difference isn't always just cast versus forged; the specific alloy and the quality of the forging or casting process play huge roles. The heat treatment process applied after initial shaping is also crucial, hardening the bearing surfaces (journals) to resist wear while maintaining some ductility in the core to prevent catastrophic brittle failure.
The Art and Science of Crankshaft Manufacturing
Beyond the base material, the manufacturing process itself is a complex sequence ensuring the final product meets incredibly tight tolerances. Whether starting from a casting or a forging, the raw crankshaft shape requires extensive machining. Lathes are used to turn the main journals and crankpins to their precise diameters and ensure they are perfectly concentric. Grinding operations follow, achieving the final dimensions and the extremely smooth surface finish required for proper bearing function – often measured in micrometers! Oil passages must be drilled through the crankshaft webs and journals to deliver pressurized lubricant directly to the bearings, a critical feature for longevity. Balancing, which we'll discuss next, is another integral manufacturing step. Furthermore, processes like fillet rolling are often employed at the transition points between the journals and the webs. These fillets are areas of high stress concentration, and rolling them under pressure introduces compressive stresses that significantly improve fatigue life. Modern manufacturing employs sophisticated CNC (Computer Numerical Control) machinery and precise measuring tools like coordinate measuring machines (CMMs) to guarantee consistency and accuracy. Honestly, the level of precision required in crankshaft manufacturing is astonishing, as even tiny imperfections can lead to vibrations, premature wear, or failure under load.
The Critical Importance of Balancing
Imagine a washing machine on its spin cycle with an unbalanced load – the violent shaking is hard to miss. Now, scale that up to the speeds and forces inside an engine, and you can understand why crankshaft balancing is absolutely non-negotiable. An unbalanced crankshaft creates significant vibrations that ripple through the entire engine and vehicle structure. These vibrations are not just annoying; they accelerate wear on bearings, seals, and other engine components, lead to driver fatigue, and can even cause catastrophic failure at high speeds. Balancing involves ensuring that the weight distribution around the axis of rotation is perfectly even. This is achieved primarily through the use of counterweights, which are cast or forged as part of the crankshaft opposite the crankpins. These counterweights offset the mass of the crankpins, the big ends of the connecting rods, and a portion of the reciprocating mass (pistons and upper part of the rods). Fine-tuning the balance often involves drilling small holes into or adding heavy metal plugs (like Mallory metal) to the counterweights after the initial machining. There are two main types of balancing: static (balancing at rest) and dynamic (balancing while spinning), with dynamic balancing being crucial for high-speed engines as it accounts for couples or wobbles along the length of the shaft. Many experts agree that meticulous balancing is one of the key factors separating a smooth, reliable engine from a rough, short-lived one.
Decoding Crankshaft Design: Journals, Webs, and Counterweights
A crankshaft isn't just a simple rotating bar; its geometry is carefully optimized for strength, balance, and function. Let's break down the key features. The main journals are the sections that run along the central axis of the crankshaft and sit within the main bearings in the engine block, supporting the entire assembly. The rod journals, or crankpins, are offset from the main journals and provide the attachment points for the connecting rods. The distance of this offset determines the engine's stroke, which, along with the cylinder bore, dictates the engine's displacement. Connecting these journals are the webs, which essentially form the "arms" of the crank throws. The shape and thickness of the webs are critical for strength and rigidity. Integral to the webs, or attached to them, are the counterweights, strategically placed and sized to counteract the forces generated by the pistons and connecting rods, ensuring smoother rotation and reducing load on the main bearings. At one end of the crankshaft, there's typically a flange for attaching the flywheel (which smooths out power pulses and provides a surface for the clutch or torque converter), and at the other end (the "nose"), there's often a provision for mounting the crankshaft pulley (driving accessories like the alternator and water pump) and the timing gear or sprocket. In high-performance crankshaft design, features like knife-edged counterweights (to reduce windage resistance as they slice through oil mist) or lightening holes might be incorporated to reduce rotational inertia, allowing the engine to rev faster, though sometimes at the expense of low-speed smoothness.
Variations on a Theme: Crankshaft Configurations
While the fundamental principle remains the same, crankshaft designs vary significantly depending on the engine's configuration and number of cylinders. For an inline-four engine (I4), the crankpins are typically arranged in a flat plane, often 180 degrees apart (e.g., pins 1 & 4 rise together, while 2 & 3 rise together). This leads to inherent secondary vibrations that often require balance shafts in larger displacement I4 engines for smoothness. In contrast, a V6 or V8 engine requires a more complex crankshaft design to accommodate the V-angle between the cylinder banks and achieve an even firing interval. V8 crankshafts, for instance, commonly feature a cross-plane design (crankpins at 90-degree intervals when viewed from the end), which provides excellent balance and results in the characteristic V8 burble. However, high-performance V8s often use a flat-plane crank (like two inline-fours joined together), which allows for higher RPMs and a different exhaust note but typically sacrifices some smoothness. The number of main bearings also varies; generally, more main bearings provide better support and rigidity for the crankshaft, which is crucial in longer engines like inline-sixes or engines subjected to high loads. There are also monolithic (one-piece) crankshafts, common in most automotive applications, and assembled crankshafts (built from multiple pieces pressed together), which are sometimes found in motorcycle engines or very large industrial engines, offering potential advantages in specific manufacturing or design scenarios.
When Things Go Wrong: Common Crankshaft Problems
Despite being built for toughness, crankshafts are not indestructible. Several issues can arise, often stemming from lubrication problems, excessive stress, or manufacturing defects. Bearing wear is perhaps the most common issue. If the oil film breaks down due to low oil pressure, oil contamination, or overheating, the crankshaft journals (both main and rod) can come into direct contact with the bearings, leading to scoring, rapid wear, and eventual seizure. This underscores the importance of regular oil changes and maintaining proper oil levels and pressure. Fatigue failure is another concern, especially in high-mileage or highly stressed engines. Microscopic cracks can initiate, often at stress concentration points like the fillet radii, and gradually propagate over time until the crankshaft fractures – a catastrophic failure. Detonation or pre-ignition (abnormal combustion) can put immense, sharp pressure spikes on the pistons and connecting rods, potentially bending or even breaking the crankshaft. Improper assembly during an engine rebuild, such as incorrect bearing clearances or improperly torqued bolts, can also lead to premature failure. Inspecting a used crankshaft during an engine rebuild is crucial. Technicians look for visible cracks (using methods like magnafluxing), measure journal diameters and out-of-roundness, and check for straightness. Some minor wear might be addressable through specific crankshaft repair techniques like grinding the journals to an undersize dimension and fitting corresponding undersize bearings, but significant damage often necessitates replacement.
Keeping the Heart Healthy: Maintenance and Inspection Insights
Direct maintenance on the crankshaft itself isn't typically part of routine vehicle service, as it's deeply embedded within the engine. However, its health is intrinsically linked to overall engine care. The single most important factor is proper lubrication. Using the correct specification and viscosity of engine oil, maintaining the proper oil level, and adhering to recommended oil change intervals are paramount. Clean, high-quality oil ensures the hydrodynamic film that protects the journals and bearings remains effective. Avoiding engine abuse is also key. Consistently revving the engine to its limit, lugging the engine at low RPM in high gears, or ignoring signs of detonation puts undue stress on the crankshaft and related components. Pay attention to warning signs: a persistent knocking or rumbling sound from the bottom end of the engine can indicate worn main or rod bearings. Excessive engine vibration could point towards a balance issue, though other causes are also possible. During any major engine work or rebuild, a thorough inspection of the crankshaft is essential. This involves meticulous cleaning, visual inspection for any damage or cracks (sometimes requiring non-destructive testing like magnetic particle inspection), and precise measurement of all journal diameters, roundness, taper, and runout using micrometers and dial indicators. In my experience, neglecting a thorough crankshaft inspection during a rebuild is asking for trouble down the road; it's a component where skimping on diligence simply isn't worth the risk.
Performance Tuning and the Crankshaft's Role
For those seeking more power or tailoring an engine for specific applications like racing, the crankshaft becomes a key component in performance tuning. One major factor is the stroke – the distance the piston travels, determined by the offset of the crankpins. Increasing the stroke (using a "stroker" crankshaft) increases engine displacement, which generally leads to more torque. However, a longer stroke also increases piston speed for a given RPM, potentially limiting the engine's maximum safe rotational speed. Conversely, a shorter stroke allows for higher RPMs but may sacrifice some low-end torque. Material choice becomes even more critical in performance scenarios. While forged steel is common, extreme applications might utilize billet crankshafts machined from a solid chunk of very high-quality steel alloy. Billet cranks offer maximum strength and design flexibility but come at a significantly higher cost. Reducing rotational mass is another goal in performance tuning. Lighter crankshafts, achieved through material choice, gun-drilling main journals, or more aggressive counterweight profiling (like knife-edging), allow the engine to accelerate and decelerate more quickly. However, reducing mass, especially in the counterweights, can compromise balancing and smoothness if not done expertly. Achieving perfect dynamic balance is absolutely crucial for high-RPM performance engines to ensure longevity and prevent destructive vibrations. When building a performance engine, selecting the right crankshaft involves balancing desired power characteristics, RPM range, durability requirements, and budget. This is where consulting with experts and choosing components from reputable sources, like our company which specializes in high-quality engine components, becomes invaluable.
Conclusion: The Enduring Importance of the Crankshaft
From its fundamental role in converting linear force to rotational power, to the intricacies of its design, materials, and manufacturing, the crankshaft stands as a testament to engineering precision and resilience. It truly is the mighty rotating core upon which engine performance and reliability depend. We've explored how it works, the critical nature of materials like cast iron and forged steel, the absolute necessity of precise manufacturing and balancing, and the various design features that allow it to withstand incredible forces cycle after cycle. We've also touched upon common failure modes and the importance of indirect maintenance through proper lubrication and careful engine operation. Whether you're dealing with a standard passenger car engine or a high-performance racing machine, the health and integrity of the crankshaft are paramount. Understanding its function and the factors that influence its durability can help appreciate the complexity of the engines we rely on daily. If you're rebuilding an engine or experiencing potential bottom-end issues, what's your next step? Always ensure a thorough inspection by qualified professionals and choose high-quality replacement parts if needed. Investing in a well-made, correctly specified crankshaft is investing in the heart of your engine's future performance and longevity.
