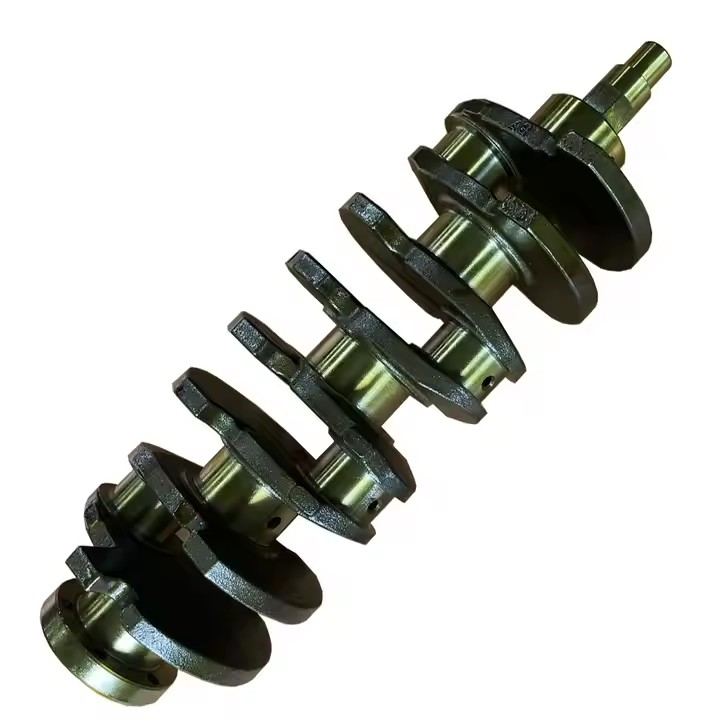

The crankshaft, often considered the backbone of any reciprocating engine, is responsible for converting the linear motion of pistons into rotational force, ultimately powering vehicles and machinery across countless applications. Within this critical component, the crankshaft journals play a pivotal role. These are the precisely machined bearing surfaces upon which the crankshaft rotates within the engine block. The size of these journals, seemingly a simple dimensional specification, has a profound and multifaceted impact on the engine's overall reliability and longevity. Understanding this impact is crucial for engine designers, manufacturers, and anyone interested in the intricate workings of internal combustion engines. From the subtle nuances of friction and lubrication to the more overt considerations of load bearing capacity and material stress, crankshaft journal size is a key determinant of an engine's ability to withstand the rigors of operation over thousands of hours.
Fundamentals of Crankshaft Journal Design
To truly appreciate the impact of crankshaft journal size, it’s essential to grasp the fundamental principles governing their design. Essentially, the journal size, both diameter and width, dictates the bearing surface area available to support the crankshaft. A larger journal diameter inherently provides a greater surface area. This increased surface area is directly related to the distribution of load from the combustion process and reciprocating masses across the bearing. Think of it like this: spreading weight over a larger area reduces the pressure at any single point. In the context of an engine, this translates to lower bearing pressure for a given load. Lower bearing pressure is generally beneficial as it reduces friction, wear, and the potential for bearing failure. Conversely, smaller journal diameters, while potentially offering advantages in terms of reduced friction and weight, concentrate the same load over a smaller area, leading to higher bearing pressures. This delicate balance between journal size and load distribution is at the heart of ensuring optimal engine reliability. The design process involves intricate calculations and simulations to determine the ideal journal size that can withstand the expected engine loads throughout its operational lifespan.
The Merits of Smaller Crankshaft Journals
Interestingly enough, opting for smaller crankshaft journals isn't always a compromise on reliability; in certain engine designs, it can offer distinct advantages. One primary benefit is the reduction of frictional losses. Smaller journals, having a smaller circumference, inherently result in less surface area in contact with the bearing at any given time. This reduced contact area translates to lower frictional drag, particularly at higher engine speeds. This can contribute to improved engine efficiency and fuel economy. Furthermore, smaller journals can contribute to a reduction in the overall weight of the crankshaft and engine assembly. Lighter rotating components can improve engine responsiveness and potentially allow for higher engine speeds, as inertia is reduced. In applications where engine weight and responsiveness are paramount, such as in high-performance sports cars or racing engines designed for shorter lifespans and maximum power output, smaller journal sizes might be a deliberate design choice. However, it's crucial to remember that these advantages come with caveats and require careful consideration of other design parameters to maintain acceptable levels of engine reliability.
The Drawbacks of Undersized Journals and Reliability Concerns
While smaller crankshaft journals offer certain benefits, the potential downsides, especially concerning engine reliability, are significant if not carefully managed. The most prominent concern is the increased bearing pressure we touched on earlier. With a smaller bearing surface area, the same engine load is concentrated onto a smaller region, leading to higher pressure between the journal and the bearing. Elevated bearing pressure can accelerate wear and tear on the bearing material, potentially leading to premature bearing failure. Furthermore, higher pressure can compromise the oil film that lubricates the bearing surfaces. If the oil film is squeezed too thin or breaks down under excessive pressure, it can result in metal-to-metal contact, leading to rapid wear, increased heat generation, and ultimately, catastrophic engine failure. Engines with undersized journals might be more susceptible to issues under high load conditions or sustained periods of demanding operation. Therefore, while smaller journals might be acceptable in specific, carefully engineered applications, they generally require higher precision manufacturing, advanced bearing materials, and sophisticated lubrication systems to mitigate the inherent reliability risks associated with increased bearing stress.
The Advantages of Larger Crankshaft Journals for Durability
Conversely, larger crankshaft journals are often favored in engine designs where long-term reliability and durability are paramount, particularly in heavy-duty applications like diesel engines in trucks, construction equipment, and generators. The primary advantage of larger journals is the increased bearing surface area. This larger area allows for the distribution of engine loads over a wider region, significantly reducing bearing pressure. Lower bearing pressure translates directly into reduced stress on the bearing material, minimizing wear and extending bearing life. Furthermore, the thicker oil film typically maintained in larger journal bearings provides enhanced protection against metal-to-metal contact, even under high loads and demanding operating conditions. Engines with larger journals are generally more tolerant of variations in operating conditions, such as fluctuating oil pressure or occasional overloading. This robustness makes them ideal for applications where consistent performance and minimal downtime are critical, even under harsh and unpredictable environments. In essence, larger journal sizes offer a more conservative design approach, prioritizing longevity and reliability over ultimate performance or weight reduction.
Potential Disadvantages of Oversized Journals
It’s worth noting that simply increasing crankshaft journal size indefinitely is not a universally beneficial solution. Oversized journals also come with potential drawbacks. One notable concern is increased frictional losses. Larger journals, with their greater circumference and surface area, inherently generate more friction compared to smaller journals, especially at higher engine speeds. This increased friction can lead to a slight reduction in engine efficiency and potentially higher fuel consumption. Furthermore, larger journals contribute to increased crankshaft weight and overall engine bulk. Heavier rotating components can reduce engine responsiveness and potentially limit the maximum achievable engine speed. In some engine designs, particularly those aiming for compact dimensions or weight optimization, oversized journals can pose packaging challenges and increase the overall size and weight of the engine. Therefore, the selection of crankshaft journal size is always a balancing act, considering the trade-offs between reliability, performance, efficiency, and packaging constraints. Engine designers must carefully analyze the intended application and operating conditions to determine the optimal journal size that strikes the right balance for each specific engine design.
Material Science and Journal Size Synergies
The impact of crankshaft journal size on engine reliability is not isolated to geometry alone; it's intricately linked to the materials used for both the crankshaft itself and the bearings. Advancements in material science have played a significant role in enabling the design of more reliable engines, even with variations in journal size. For instance, the development of high-strength crankshaft materials, such as forged steel alloys, allows for the crankshaft to withstand higher stresses, which can be particularly beneficial when using smaller journal sizes where bearing pressures are higher. Similarly, bearing materials have evolved considerably, with modern engine bearings often incorporating multi-layer constructions and advanced alloys that offer superior wear resistance, fatigue strength, and load-carrying capacity. These advanced bearing materials can effectively mitigate some of the reliability risks associated with higher bearing pressures in engines with smaller journals. The synergy between journal size and material selection is crucial. Engine designers must carefully consider the material properties of both the crankshaft and bearings in conjunction with the chosen journal size to ensure that the entire bearing system can withstand the anticipated loads and operating conditions while maintaining long-term reliability. The selection process often involves extensive testing and analysis to validate the material and size choices.
The Critical Role of Lubrication in Journal Bearing Performance
Lubrication is the lifeblood of any journal bearing system, and its effectiveness is profoundly influenced by crankshaft journal size. The primary function of engine oil in journal bearings is to create a thin film between the rotating journal and the stationary bearing, preventing metal-to-metal contact and minimizing friction and wear. Journal size plays a crucial role in determining the effectiveness of this lubrication. Larger journals, with their greater surface area, generally facilitate the formation and maintenance of a more robust oil film. The increased surface area allows for better heat dissipation, preventing oil temperatures from rising excessively, which can degrade oil viscosity and lubrication effectiveness. Moreover, larger journals tend to operate with lower bearing pressures, which reduces the risk of oil film breakdown under load. In contrast, smaller journals, with their higher bearing pressures, demand more robust lubrication systems and higher quality engine oils to maintain adequate oil film thickness and prevent boundary lubrication, where metal-to-metal contact occurs. The design of the lubrication system, including oil pump capacity, oil cooler effectiveness, and oil gallery design, must be carefully matched to the crankshaft journal size and the anticipated engine operating conditions to ensure reliable long-term performance and prevent bearing failures due to lubrication issues.
Manufacturing Precision and Tolerances: Key to Reliability
Regardless of the chosen crankshaft journal size, manufacturing precision and tight tolerances are absolutely paramount for ensuring engine reliability. The journals must be machined to extremely precise dimensions, with minimal deviations in diameter, roundness, and surface finish. Any imperfections or inaccuracies in journal geometry can lead to uneven load distribution, localized stress concentrations, and premature bearing wear. Similarly, the bearing housings in the engine block must be machined with equally high precision to ensure proper bearing fit and alignment. Excessive clearances or misalignments can disrupt the oil film, leading to inadequate lubrication and increased wear. The manufacturing processes involved in producing crankshafts and engine blocks for high-reliability engines are typically very sophisticated, employing advanced machining techniques and rigorous quality control measures. These measures are essential to guarantee that the journal sizes and bearing surfaces meet the stringent tolerances required for optimal performance and long-term durability. Even minute deviations from specified dimensions can have a cumulative negative impact on engine reliability over extended operating hours. Therefore, precision manufacturing is not just a desirable attribute but a fundamental requirement for engines designed for high reliability, irrespective of crankshaft journal size considerations.
Practical Examples and Design Considerations
Looking at practical engine designs across various applications reveals the diverse approaches taken regarding crankshaft journal size and their impact on reliability. For instance, consider high-revving, naturally aspirated sports car engines. These engines often employ smaller journal diameters to minimize friction and rotating mass, enhancing responsiveness and achieving high power outputs at elevated engine speeds. However, these engines typically utilize premium bearing materials, sophisticated lubrication systems, and are often designed for shorter service intervals and more frequent maintenance compared to engines prioritizing ultimate longevity. Conversely, heavy-duty diesel engines found in commercial trucks or industrial machinery often feature significantly larger crankshaft journals. These engines are designed for maximum durability and long service life under continuous heavy loads. The larger journals, combined with robust bearing materials and heavy-duty lubrication systems, ensure reliable operation for hundreds of thousands, or even millions, of miles or operating hours. The choice of journal size is thus a direct reflection of the intended application, performance targets, and reliability requirements of the engine. Engine designers meticulously weigh these factors, often employing advanced simulation and testing methodologies, to determine the optimal journal size that balances performance, efficiency, and, most importantly, long-term engine reliability for each specific application.
Our Commitment to Engine Reliability through Quality Components
At our company, we understand the critical importance of engine reliability, and we are committed to providing high-quality components that contribute to the durability and longevity of engines across various industries. Our expertise lies in the design and manufacturing of precision engine components, including high-performance bearings and crankshafts. We recognize that crankshaft journal size is a key factor in engine reliability, and our products are engineered to meet the demanding requirements of modern engine designs. Whether it's bearings designed to withstand high bearing pressures in engines with smaller journals or robust crankshafts manufactured to exacting tolerances for engines with larger journals, our components are built to perform reliably under demanding conditions. We utilize advanced materials, state-of-the-art manufacturing processes, and rigorous quality control procedures to ensure that our products meet the highest standards of performance and durability. By partnering with engine manufacturers and engineers, we strive to contribute to the development of engines that are not only powerful and efficient but also exceptionally reliable, minimizing downtime and maximizing the operational lifespan of critical machinery and vehicles. Our dedication to quality and precision engineering directly addresses the challenges related to crankshaft journal size and its impact on engine reliability.
Conclusion: Balancing Journal Size for Optimal Engine Performance and Longevity
In conclusion, the size of crankshaft journals is undeniably a critical factor influencing engine reliability. It's a delicate balancing act, where smaller journals offer potential benefits in terms of reduced friction and weight, but demand careful engineering to mitigate the risks associated with increased bearing pressure. Larger journals, on the other hand, prioritize durability and load-carrying capacity, making them ideal for heavy-duty applications, albeit potentially at the expense of some frictional efficiency and weight. The optimal journal size is not a one-size-fits-all solution but rather a design choice deeply intertwined with engine application, performance targets, material selection, lubrication system design, and manufacturing precision. Ultimately, achieving optimal engine reliability requires a holistic approach, where journal size is considered in conjunction with all these interconnected factors. By understanding the nuances of crankshaft journal design and its implications, engineers can create engines that deliver both exceptional performance and unwavering reliability, ensuring dependable power across a spectrum of applications. The ongoing advancements in materials, manufacturing techniques, and lubrication technologies continue to push the boundaries of engine design, allowing for increasingly sophisticated and reliable engines, regardless of the specific choices made regarding crankshaft journal size.
