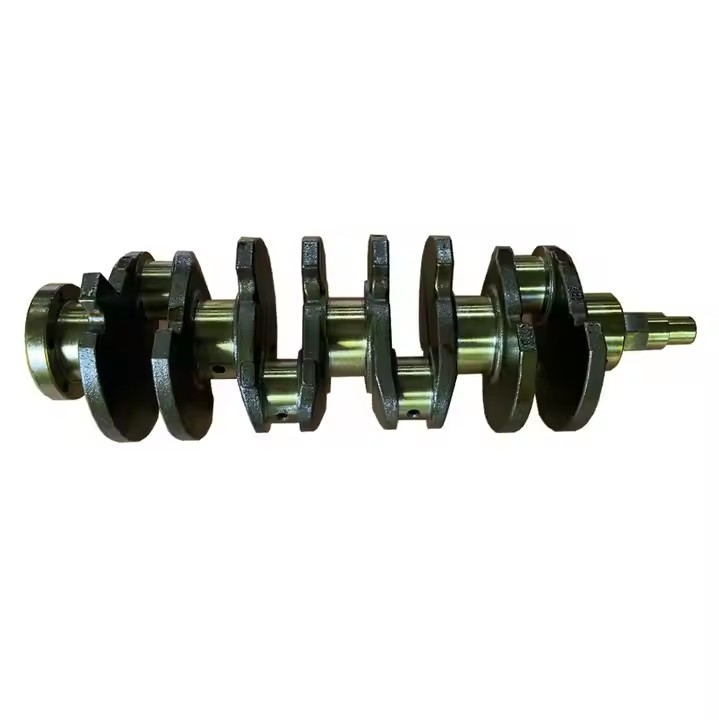

In the intricate world of internal combustion engines, the crankshaft stands as a vital component, tirelessly converting the linear motion of pistons into rotational power that drives our vehicles and machinery. However, this crucial process is not without its challenges. One of the most significant, yet often overlooked, issues is crankshaft torsional vibration. This phenomenon, if left unaddressed, can lead to a cascade of problems, ranging from increased noise and wear to catastrophic engine failure. Understanding the root causes of torsional vibration and implementing effective solutions is paramount for ensuring engine longevity, performance, and overall reliability. This article delves into the depths of crankshaft torsional vibration, exploring its origins, consequences, and the diverse strategies employed to mitigate its impact.
Understanding Torsional Vibration: A Twisting Force
To truly grasp crankshaft torsional vibration, it's essential to differentiate it from the more commonly understood linear vibration. Linear vibration, as the name suggests, involves movement in a straight line – think of a shaking washing machine. Torsional vibration, on the other hand, is a twisting or rotational vibration that occurs along the axis of a rotating component, in this case, the crankshaft. Imagine twisting a rubber band back and forth; that twisting motion, albeit on a much grander and more complex scale, is analogous to torsional vibration in a crankshaft. This twisting motion is not a smooth, continuous rotation; instead, it's characterized by oscillations – periods of acceleration and deceleration superimposed on the crankshaft's primary rotational motion. These oscillations, even if seemingly small, can exert significant stresses on the crankshaft and connected components, leading to fatigue and potential failure over time. It's this subtle yet powerful twisting force that makes torsional vibration such a critical concern in engine design and operation.
The Combustion Process: A Primary Source of Excitation
The very heart of an internal combustion engine – the combustion process – is a primary instigator of torsional vibration. Unlike the smooth, continuous power delivery of an electric motor, combustion engines operate in cycles, with power generated in discrete pulses. Each cylinder firing event is essentially a small explosion, imparting a sudden, powerful force onto the piston and, consequently, the crankshaft. This force is not applied uniformly; it's intermittent and uneven, depending on the engine's firing order and the specific cylinder that’s firing at any given moment. For instance, in a four-cylinder engine, the power pulses occur sequentially, but there are still gaps between each pulse. This pulsating nature of power delivery creates fluctuating torque on the crankshaft, initiating and sustaining torsional vibration. The more cylinders an engine has, and the more balanced the firing order, the smoother the torque delivery *can* be, but even in multi-cylinder engines, the inherent cyclical nature of combustion remains a significant source of torsional excitation.
Inertia and Elasticity: The System's Response
While the combustion process provides the initial excitation, the crankshaft itself, with its inherent properties of inertia and elasticity, plays a crucial role in how torsional vibration manifests. Inertia, in this context, refers to the crankshaft's resistance to changes in its rotational motion. A heavier crankshaft, or one with more rotating mass (like counterweights), will have higher inertia. Elasticity, on the other hand, describes the crankshaft's ability to twist and deform under load and then return to its original shape. Think of a spring; it resists compression and extension but springs back once the force is removed. The crankshaft, while incredibly strong, also possesses a degree of elasticity. These two properties, inertia and elasticity, interact to create a resonant system. Just like a tuning fork vibrates at a specific frequency when struck, a crankshaft has natural frequencies at which it is prone to vibrate torsionally. When the frequency of the combustion pulses coincides with or is near one of the crankshaft's natural torsional frequencies, resonance occurs. Resonance amplifies the vibration, leading to significantly increased stress levels. This is why understanding and managing the crankshaft's natural frequencies is critical in mitigating torsional vibration.
The Detrimental Effects of Uncontrolled Torsional Vibration
The consequences of allowing torsional vibration to run rampant within an engine are far-reaching and potentially devastating. Firstly, increased noise and vibration are common symptoms. This can manifest as a noticeable rumble, whine, or even knocking sound, detracting from the vehicle's refinement and potentially causing discomfort to occupants. More critically, torsional vibration accelerates wear and tear on various engine components. Bearings, gears, and even the crankshaft itself can experience increased friction and fatigue due to the oscillating stresses. This leads to reduced component lifespan and the need for more frequent maintenance or replacements. Perhaps the most serious consequence is fatigue failure of the crankshaft. The repeated twisting and untwisting cycles induce stress concentrations, particularly at stress risers like fillets and keyways. Over time, these stresses can lead to fatigue cracks, which can propagate and eventually cause catastrophic crankshaft fracture. A broken crankshaft means complete engine failure, often requiring extensive and costly repairs. Therefore, addressing torsional vibration is not just about noise reduction; it's fundamentally about ensuring engine durability and preventing potentially catastrophic failures.
Detecting and Measuring the Invisible Twisting
Before solutions can be implemented, it’s essential to accurately detect and measure torsional vibration. Unlike linear vibration, which can often be felt or visually observed, torsional vibration is more elusive. Specialized techniques and equipment are required to quantify it. One common method involves using torsional vibration sensors. These sensors, often based on optical or magnetic principles, are mounted on the crankshaft or other rotating components and are designed to detect minute variations in rotational speed. By analyzing the signals from these sensors, engineers can determine the amplitude and frequency of the torsional vibrations. Another approach involves strain gauges. These gauges are bonded directly to the crankshaft surface and measure the strain induced by the twisting motion. The strain data can then be converted to stress levels, providing valuable insights into the severity of the vibration. Furthermore, sophisticated vibration analysis software is used to process the sensor data. This software can perform frequency analysis, identifying the dominant vibration frequencies and helping to pinpoint the sources of excitation and resonance. Through these advanced detection and measurement techniques, engineers gain a clear picture of the torsional vibration characteristics of an engine, paving the way for effective mitigation strategies.
Torsional Dampers: The Primary Line of Defense
When it comes to mitigating crankshaft torsional vibration, torsional dampers, also known as harmonic balancers, are the most widely employed and effective solution. These devices are strategically mounted at the front of the crankshaft, opposite the flywheel, and are designed to absorb and dissipate the energy associated with torsional vibrations. There are several types of torsional dampers, each with its own operating principle. Viscous dampers are perhaps the most common. They consist of a housing filled with a viscous fluid, typically silicone, and an internal inertia ring. When torsional vibrations occur, the inertia ring oscillates relative to the housing, and the viscous fluid provides damping, converting the vibrational energy into heat. Rubber dampers utilize a rubber element bonded between an inner hub and an outer inertia ring. The rubber element provides damping through hysteresis, absorbing vibrational energy as it deforms. Friction dampers, less common in modern engines, use friction between surfaces to dissipate vibrational energy. Regardless of the specific type, the fundamental principle of a torsional damper is to introduce damping into the crankshaft system, reducing the amplitude of torsional vibrations, minimizing stress, and protecting engine components. Choosing the right type and design of torsional damper is crucial and depends on the engine's characteristics and operating conditions.
Crankshaft Design and Material: Building in Resilience
Beyond external dampers, the very design and material selection of the crankshaft itself play a significant role in managing torsional vibration. A stiffer crankshaft, meaning one that is less prone to twisting, will naturally exhibit lower torsional vibration amplitudes. Stiffness can be increased through design features such as larger diameters, optimized cross-sections, and strategically placed counterweights. The material used to manufacture the crankshaft also has a profound impact. High-strength materials, such as forged steel alloys, offer superior stiffness and fatigue resistance compared to cast iron. Careful consideration is given to the crankshaft's natural frequencies during the design phase. Engineers aim to design crankshafts with natural torsional frequencies that are well away from the primary excitation frequencies generated by the combustion process. This helps to avoid resonance and minimize vibration amplification. Furthermore, advanced finite element analysis (FEA) simulations are routinely used to predict and optimize crankshaft torsional vibration behavior before physical prototypes are even built. By meticulously considering design parameters and material properties, engineers can create crankshafts that are inherently more resilient to torsional vibration.
Engine Tuning and Control: Software Solutions to Mechanical Problems
Interestingly enough, solutions to torsional vibration are not solely confined to mechanical design; engine tuning and control strategies also offer avenues for mitigation. Optimizing the engine firing order, for example, can help to smooth out the torque pulses delivered to the crankshaft. A well-chosen firing order can minimize the fluctuations in torque, thereby reducing the excitation of torsional vibrations. Modern engine control units (ECUs) play a crucial role in managing combustion parameters. By precisely controlling fuel injection timing, ignition timing, and air-fuel ratio, the ECU can influence the combustion process and reduce the magnitude of the power pulses. Furthermore, some advanced engine control systems incorporate active vibration control strategies. These systems use sensors to monitor torsional vibration in real-time and then actively adjust engine parameters, such as ignition timing, to counteract the vibrations. While active control is more complex and computationally intensive, it offers the potential for highly effective vibration reduction. In essence, sophisticated engine management systems are increasingly being leveraged to address torsional vibration challenges, demonstrating the power of software-based solutions in enhancing engine performance and durability.
Our Contribution to Vibration Solutions
At our company, we understand the critical importance of managing torsional vibration in rotating machinery. We offer a range of products and services designed to address these challenges effectively. Our expertise in vibration analysis and diagnostics allows us to accurately assess torsional vibration issues in engines and other rotating equipment. We utilize advanced measurement techniques and analysis tools to identify the root causes of vibration and recommend tailored solutions. We also provide custom-engineered torsional dampers, designed to meet the specific requirements of diverse applications. Our dampers are meticulously crafted using high-quality materials and advanced manufacturing processes to ensure optimal damping performance and durability. Furthermore, our engineering consulting services offer expertise in crankshaft design and optimization for reduced torsional vibration. We collaborate with engine manufacturers and designers to develop crankshafts that are inherently more resistant to vibration, incorporating advanced design features and material selection strategies. We are committed to providing comprehensive solutions that help our clients mitigate torsional vibration, enhance equipment reliability, and improve overall performance. Have you ever considered how proactive vibration management could benefit your operations? It's a crucial aspect of ensuring long-term equipment health and efficiency.
Practical Applications and Real-World Examples
The principles and solutions discussed regarding crankshaft torsional vibration are not merely theoretical concepts; they have tangible applications across a wide spectrum of engines and machinery. In the automotive industry, torsional dampers are standard components in virtually all internal combustion engines, from small passenger car engines to powerful truck engines. These dampers are essential for ensuring smooth operation, reducing noise, and preventing crankshaft fatigue. In marine applications, large diesel engines used for propulsion are particularly susceptible to torsional vibration due to their size and operating conditions. Robust torsional dampers and carefully designed crankshafts are crucial for the reliability of marine engines. Industrial engines, such as those used in power generation and heavy machinery, also face torsional vibration challenges. In these applications, vibration monitoring and predictive maintenance programs, coupled with effective damping solutions, are essential for preventing costly downtime and ensuring operational continuity. Even in smaller engines, like those in motorcycles and generators, torsional vibration is a consideration, although often less critical due to lower power outputs and operating speeds. Across all these applications, the fundamental principles of understanding, measuring, and mitigating torsional vibration remain the same, highlighting the universal importance of this engineering discipline. It’s worth noting that advancements in materials science and computational analysis continue to drive innovation in torsional vibration management, leading to even more effective and efficient solutions.
Conclusion: Ensuring Engine Harmony and Longevity
In conclusion, crankshaft torsional vibration is a complex yet critical phenomenon in internal combustion engines. Understanding its causes, from the pulsating nature of combustion to the inherent inertia and elasticity of the crankshaft, is the first step towards effective management. The detrimental effects of uncontrolled torsional vibration, ranging from noise and wear to catastrophic crankshaft failure, underscore the importance of implementing robust solutions. Torsional dampers stand as the primary mechanical defense, while advancements in crankshaft design, material selection, and engine control strategies offer further avenues for mitigation. By proactively addressing torsional vibration, we can ensure engine harmony, enhance performance, and significantly extend engine lifespan. It's not just about silencing vibrations; it's about safeguarding the heart of our machines and ensuring their reliable operation for years to come. Frankly speaking, neglecting torsional vibration is a risk no engine operator can afford to take.
