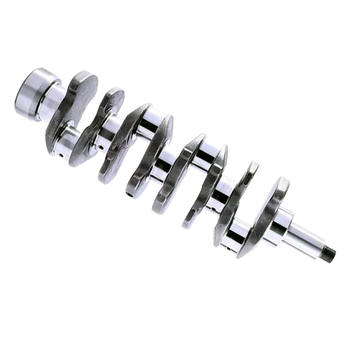

The crankshaft, the heart of any internal combustion engine, translates the reciprocating motion of pistons into rotational force. Achieving optimal engine performance, longevity, and reliability hinges significantly on the precision and durability of this vital component. Advanced crankshaft manufacturing techniques are constantly evolving, pushing the boundaries of what's possible in terms of material science, machining processes, and quality control. This article delves into some of these cutting-edge methods, exploring how they contribute to the creation of crankshafts that are not only incredibly precise but also capable of withstanding immense stresses and prolonged use.
Material Selection and Preparation
The journey toward a high-performance crankshaft begins long before any machining takes place – with the careful selection and preparation of materials. Traditionally, crankshafts were often made from forged steel, but advancements in material science have introduced options like alloy steels, micro-alloyed steels, and even titanium alloys for specialized applications. The choice depends heavily on the desired strength-to-weight ratio, fatigue resistance, and thermal stability. Furthermore, the preparation stage involves processes like heat treatment and surface hardening to enhance the material's inherent properties. For instance, nitriding, a surface hardening technique, introduces nitrogen into the steel's surface, creating a hard, wear-resistant layer without significantly affecting the core's ductility. This is crucial for withstanding the constant frictional forces experienced by the crankshaft journals.
Advanced Forging Techniques
Forging remains a cornerstone of crankshaft manufacturing, but the techniques employed have become far more sophisticated. Precision forging, also known as net-shape or near-net-shape forging, aims to create a crankshaft blank that closely resembles the final desired geometry. This minimizes the amount of subsequent machining required, reducing material waste and production time. Isothermal forging, where the die and the workpiece are maintained at the same temperature during deformation, allows for greater control over the metal's flow, leading to improved grain structure and mechanical properties. Interestingly enough, computer simulations are now routinely used to optimize forging die designs and process parameters, ensuring consistent quality and minimizing the risk of defects.
Precision Machining and Grinding
Even with advanced forging techniques, machining is still necessary to achieve the required dimensional accuracy and surface finish. Computer Numerical Control (CNC) machining centers are the workhorses of modern crankshaft production, capable of performing complex operations like milling, drilling, and turning with incredible precision. Grinding is another critical process, especially for the crankshaft journals and pins, where extremely tight tolerances and smooth surfaces are essential for proper bearing function. Crankshaft grinding machines are often equipped with advanced sensors and feedback systems to ensure consistent quality and prevent errors. Furthermore, techniques like superfinishing and polishing are employed to further refine the surface finish, reducing friction and wear.
Balancing and Vibration Dampening
An unbalanced crankshaft can lead to significant vibrations, which can not only reduce engine performance but also cause premature wear and fatigue of other engine components. Therefore, dynamic balancing is a critical step in the manufacturing process. This involves precisely measuring the crankshaft's imbalance and then removing or adding material to correct it. Advanced balancing machines utilize sophisticated sensors and algorithms to identify and correct even the smallest imbalances. In some cases, vibration dampeners, such as torsional vibration dampers, are integrated into the crankshaft design to further reduce vibrations caused by torsional oscillations. Have you ever wondered why some high-performance engines seem to run so smoothly, even at high RPMs? The answer often lies in the meticulous balancing and vibration dampening techniques employed during crankshaft manufacturing.
Surface Treatment and Coating Technologies
To further enhance the durability and performance of crankshafts, a range of surface treatment and coating technologies are employed. As mentioned earlier, nitriding is a common surface hardening technique. However, other options include chrome plating, phosphate coating, and even diamond-like carbon (DLC) coatings. These coatings provide a protective layer that reduces friction, wear, and corrosion. DLC coatings, in particular, are gaining popularity due to their exceptional hardness and low friction coefficient. They can significantly extend the life of the crankshaft, especially in high-performance applications where the engine is subjected to extreme conditions. Frankly speaking, the investment in advanced surface treatments can pay dividends in terms of improved engine reliability and reduced maintenance costs.
Quality Control and Inspection
Throughout the entire crankshaft manufacturing process, rigorous quality control and inspection procedures are essential to ensure that every crankshaft meets the required specifications. This involves a combination of dimensional measurements, non-destructive testing (NDT), and material analysis. Coordinate Measuring Machines (CMMs) are used to verify the accuracy of the crankshaft's dimensions, while techniques like ultrasonic testing and magnetic particle inspection are employed to detect internal flaws and surface cracks. Furthermore, material analysis is performed to ensure that the crankshaft material meets the required chemical composition and mechanical properties. It's worth noting that statistical process control (SPC) is often used to monitor and control the manufacturing process, identifying and addressing potential issues before they lead to defects. In my experience, a robust quality control system is the cornerstone of any successful crankshaft manufacturing operation.
Future Trends in Crankshaft Manufacturing
The field of crankshaft manufacturing is constantly evolving, driven by the demand for lighter, stronger, and more efficient engines. Some of the emerging trends include the increased use of additive manufacturing (3D printing) to create complex crankshaft designs with optimized geometry and internal features. This allows for greater design freedom and the potential to create crankshafts that are lighter and stronger than those made using traditional methods. Another trend is the development of new materials, such as advanced composites and high-strength aluminum alloys, which offer the potential to further reduce crankshaft weight. Furthermore, the integration of sensors and monitoring systems into crankshafts is becoming increasingly common, allowing for real-time monitoring of stress, strain, and temperature. This data can be used to optimize engine performance and prevent failures.
Applications and Examples
The impact of advanced crankshaft manufacturing techniques is evident across a wide range of applications, from high-performance racing engines to fuel-efficient passenger vehicles. In Formula 1, for example, crankshafts are subjected to extreme stresses and temperatures, requiring the use of the most advanced materials and manufacturing processes. Similarly, in the aerospace industry, lightweight and durable crankshafts are crucial for maximizing engine performance and fuel efficiency. In the automotive industry, advanced crankshaft manufacturing techniques are playing a key role in the development of more fuel-efficient and environmentally friendly engines. For instance, lightweight crankshafts made from advanced materials can reduce engine inertia, improving acceleration and fuel economy. Ultimately, the benefits of these advanced techniques translate into improved engine performance, reliability, and longevity for a wide range of applications.
