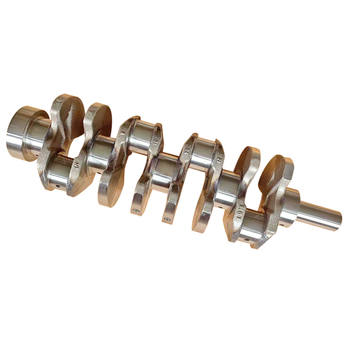

The crankshaft, often hailed as the backbone of any high-performance engine, is responsible for converting the linear motion of pistons into rotational force that ultimately drives the wheels. Designing a crankshaft for optimal performance isn't just about slapping some metal together; it's a delicate dance between material selection, balancing, and intricate geometry. Understanding the design principles involved is crucial for anyone aiming to extract maximum power and reliability from their engine build. Have you ever wondered what separates a good crankshaft design from a truly exceptional one?
Material Selection and Manufacturing Processes
The choice of material dramatically impacts the crankshaft's strength, durability, and overall performance. Forged steel crankshafts, typically made from 4340 or similar high-strength alloys, are a popular choice in high-performance applications due to their superior grain structure and fatigue resistance. Forging aligns the material's grain flow, making it incredibly strong and resilient under extreme stress. Alternatively, billet crankshafts, machined from a solid block of steel, offer even greater design flexibility and allow for more complex geometries. This can lead to lighter and stronger designs but often comes at a higher cost. It's worth noting that cast iron crankshafts, while economical, generally lack the strength required for high-performance engines. The manufacturing process itself is also critical. Processes like nitriding or tuftriding can further enhance the surface hardness and wear resistance of the crankshaft, increasing its longevity under demanding conditions. The key is to select a material and manufacturing process that aligns with the engine's power output and intended use. Interestingly enough, some manufacturers are exploring advanced materials like titanium alloys for extreme applications, though the cost remains prohibitive for most.
Balancing: A Critical Consideration
An unbalanced crankshaft can lead to excessive vibrations, reduced engine life, and a significant loss of power. Balancing is the process of distributing weight evenly around the crankshaft's axis of rotation. This involves removing or adding material to specific locations on the crankshaft to achieve perfect balance. Static balancing ensures that the crankshaft is balanced when stationary, while dynamic balancing accounts for imbalances that occur at higher rotational speeds. Dynamic balancing is crucial for high-performance engines, as it simulates the stresses and forces experienced during operation. The bobweight calculation, which determines the amount of weight needed to simulate the connecting rods, pistons, and other reciprocating components, is a critical step in the balancing process. Precision balancing equipment and experienced technicians are essential for achieving optimal results. Why is this approach so effective? Because it minimizes vibrations, reduces stress on engine components, and allows the engine to rev higher and produce more power. To be honest, skipping this step is a recipe for disaster in any high-performance build.
Stroke and Rod Ratio: Shaping Engine Characteristics
The stroke of the crankshaft, which determines the distance the piston travels within the cylinder, and the rod ratio (connecting rod length divided by stroke length) are fundamental design parameters that significantly influence engine characteristics. A longer stroke generally increases low-end torque, while a shorter stroke allows for higher engine speeds. The rod ratio affects the piston's acceleration and deceleration, impacting engine smoothness and efficiency. A longer rod ratio generally reduces piston side loading and improves engine breathing, while a shorter rod ratio can increase cylinder filling at lower RPMs. The ideal stroke and rod ratio depend on the engine's intended application. For example, a drag racing engine might benefit from a shorter stroke and higher rod ratio to maximize horsepower at high RPMs, while a street performance engine might prioritize a longer stroke and slightly shorter rod ratio for improved low-end torque. Many experts agree that carefully selecting these parameters is crucial for tailoring the engine's performance characteristics to the desired driving experience.
Torsional Dampers: Controlling Harmonics
Crankshafts are subject to torsional vibrations, which are twisting forces that can lead to fatigue failure. A torsional damper, also known as a harmonic balancer, is a device designed to mitigate these vibrations. The damper typically consists of a weighted ring that is attached to the crankshaft via a rubber or elastomer element. This element absorbs and dissipates the energy of the torsional vibrations, preventing them from reaching critical levels. High-performance engines require high-quality torsional dampers capable of handling the increased stress and vibration. Fluid dampers, which use a viscous fluid to dampen vibrations, are a popular choice for high-performance applications due to their superior damping characteristics and ability to adapt to varying engine speeds. The selection of the appropriate torsional damper is critical for ensuring the long-term reliability of the crankshaft and the engine as a whole. Frankly speaking, ignoring torsional vibrations is a common mistake that can have catastrophic consequences.
Oil Delivery and Lubrication
Proper lubrication is essential for crankshaft longevity and performance. The crankshaft incorporates oil passages that deliver pressurized oil to the connecting rod bearings and main bearings. The design of these oil passages must ensure adequate oil flow to all critical areas, even under high RPM and load conditions. Oil holes must be precisely located and sized to prevent stress concentrations and ensure optimal lubrication. Grooves and chamfers on the bearing surfaces can also improve oil distribution and reduce friction. High-performance engines often require upgraded oil pumps and oiling systems to maintain adequate oil pressure and flow. It's worth noting that the type of oil used also plays a crucial role in lubrication effectiveness. Synthetic oils, with their superior viscosity and thermal stability, are generally recommended for high-performance applications. In my experience, paying close attention to oil delivery and lubrication is one of the most important factors in preventing crankshaft failure.
Crankshaft Counterweights: Reducing Bearing Loads
Crankshaft counterweights are strategically placed weights that help to balance the rotating forces within the engine. These counterweights reduce the loads on the main bearings, minimizing friction and wear. The number and placement of counterweights depend on the engine's configuration and firing order. Inline engines typically have fewer counterweights than V-engines due to their simpler balance characteristics. Full-counterweight crankshafts, which feature counterweights opposite each connecting rod journal, provide the best balance and reduce bearing loads to the greatest extent. However, they can also increase the crankshaft's weight and inertia. Knife-edging the counterweights, a process of shaping them into a sharper profile, can reduce windage losses and improve engine breathing. The design of the counterweights is a critical aspect of crankshaft design that directly impacts engine performance and longevity. Have you ever considered how much stress these components are under?
Finite Element Analysis (FEA) and Simulation
Modern crankshaft design relies heavily on finite element analysis (FEA) and computer simulations. FEA allows engineers to model the crankshaft's behavior under various load conditions, identifying areas of high stress and potential failure points. This information can be used to optimize the crankshaft's design, ensuring that it is strong enough to withstand the stresses of high-performance operation. Simulation software can also be used to analyze the crankshaft's torsional vibrations and optimize the design of the torsional damper. By using FEA and simulation, engineers can reduce the need for costly and time-consuming physical testing, accelerating the development process and improving the reliability of the crankshaft. Our company utilizes state-of-the-art FEA software and simulation techniques to design and optimize crankshafts for a wide range of high-performance applications. These analyses allow us to tailor the crankshaft's design to the specific needs of each engine, ensuring optimal performance and reliability.
Our Solutions for High-Performance Crankshafts
At our company, we understand the critical role that crankshafts play in high-performance engines. We offer a comprehensive range of crankshaft design and manufacturing services, tailored to meet the specific needs of our clients. Our experienced engineers utilize advanced FEA and simulation techniques to optimize crankshaft designs for strength, durability, and performance. We offer a variety of material options, including forged steel and billet steel, and employ state-of-the-art manufacturing processes to ensure the highest quality. We also provide precision balancing services to minimize vibrations and maximize engine life. Our products are designed to withstand the extreme stresses of high-performance operation, delivering exceptional reliability and performance. We are committed to providing our clients with the best possible crankshaft solutions, helping them to achieve their engine building goals.
In conclusion, the design of a crankshaft for high-performance engines is a complex and multifaceted process. It requires a deep understanding of material science, balancing principles, engine dynamics, and advanced engineering techniques. By carefully considering these factors and utilizing state-of-the-art design tools, it's possible to create crankshafts that deliver exceptional performance and reliability. The quest for increased power and engine efficiency relies heavily on pushing the boundaries of crankshaft design and manufacturing.
