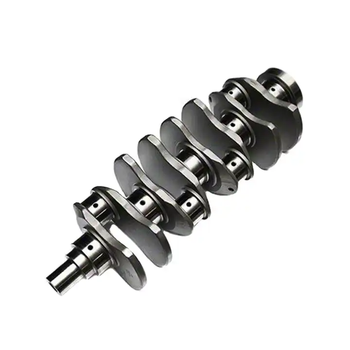

When you think about the heart of an internal combustion engine, what comes to mind? For many, it’s the pistons, maybe the valves, but arguably the most critical component is the crankshaft. This complex part takes the linear motion of the pistons and translates it into rotational motion, powering everything from cars and trucks to generators and pumps. Crafting something so vital, subjected to immense stress and requiring extreme precision, involves a series of intricate steps. To be honest, understanding how these components are brought to life is key to appreciating engine technology. This isn't just about shaping metal; it's about engineering strength, durability, and precision down to micrometer levels. Welcome to The Ultimate Guide to Crankshaft Manufacturing Processes, where we'll delve deep into the fascinating journey from raw material to finished engine part.
Laying the Foundation: Raw Materials and Initial Preparation for Crankshaft Manufacturing
Every great structure needs a solid foundation, and for crankshaft manufacturing, that starts with selecting the right raw material. Typically, crankshafts are made from high-strength steel or nodular cast iron. Steel crankshafts, often made from carbon or alloy steel grades like 4340, 5140, or 1045, are generally preferred for high-performance or heavy-duty applications due to their superior strength, toughness, and fatigue resistance. Cast iron crankshafts, specifically using nodular or ductile cast iron (like spheroidal graphite cast iron), are common in many passenger vehicles because they offer good vibration damping properties, are cheaper to produce, and can be cast closer to the final shape, reducing machining. The choice of material fundamentally impacts subsequent manufacturing steps and the final performance characteristics of the crankshaft. After selecting the material, it often undergoes initial preparation. For steel, this might involve cutting billets or bars to size. For cast iron, it involves preparing the molten metal mixture with precise alloying elements. Interestingly enough, the specific chemical composition and microstructure of the raw material are meticulously controlled at this stage, as they dictate how the material will respond to forging, casting, heat treatment, and machining processes later on. Any impurity or deviation here can compromise the integrity of the final crankshaft, potentially leading to premature failure under operational loads. Think about the immense forces a crankshaft withstands – this initial material choice isn't just important, it's absolutely critical. Have you ever considered how much engineering goes into just selecting the right metal alloy?
Forming the Shape: Forging Versus Casting in Crankshaft Manufacturing
Once the material is prepared, the next major step in The Ultimate Guide to Crankshaft Manufacturing Processes involves forming the basic shape of the crankshaft. There are two primary methods: forging and casting. Forging involves shaping solid metal through localized compressive forces, using hammers, presses, or rolling. Hot forging is most common for crankshafts, where the steel is heated to a plastic state (typically above 1000°C) before being forced into a die. This process aligns the grain structure of the metal, following the contours of the crankshaft, which significantly enhances its strength, fatigue life, and impact resistance. Forged crankshafts are renowned for their robustness and are favored in demanding applications like racing engines, heavy-duty trucks, and industrial machinery. While forging requires more initial energy and tooling costs, the resulting product is inherently stronger. On the other hand, casting involves pouring molten metal into a mold shaped like the crankshaft. Nodular cast iron is the material of choice here. Casting allows for complex shapes to be formed relatively easily and with less material waste compared to forging, as the molten metal fills the mold cavity, often closer to the final net shape. This reduces the amount of subsequent machining required, making casting a more cost-effective process for high-volume production, particularly for less stressed applications. Frankly speaking, while casting is more economical, it doesn't offer the same degree of directional strength and grain flow benefits that forging provides. The choice between forging and casting is a fundamental decision driven by performance requirements, material properties, and cost considerations.
Delving Deeper into Forging Processes for Crankshafts
Within the realm of forging, several techniques are employed in crankshaft manufacturing, each with its nuances. The conventional method involves using presses or hammers with closed dies. Heated steel billets are placed into impression dies, and the press or hammer applies significant force, shaping the metal to fill the die cavity. This requires multiple stages and potentially different dies to progressively form the complex geometry of the crankshaft, including the main journals, crank pins, webs, and counterweights. Another method, increasingly popular, is forging using rolling techniques. In radial forging, the billet is shaped between rotating dies, effectively rolling the crankshaft profile. This process can be highly automated and efficient, producing near-net shapes with good grain flow characteristics. It’s worth noting that regardless of the specific forging technique, subsequent steps like trimming flash (excess material squeezed out between die halves) and potentially straightening are necessary. The goal of forging is not just to achieve the shape but to optimize the material's internal structure for maximum strength and fatigue resistance. The control of heating temperatures, deformation speeds, and die design are paramount. In my experience, precision in the forging stage is critical; errors here can create internal stresses or undesirable grain structures that are difficult, if not impossible, to rectify in later processes, impacting the overall quality and lifespan of the finished crankshaft. Why is this initial shaping process so critical? Because it sets the stage for the crankshaft's inherent mechanical properties.
Achieving Precision: Machining and Finishing Crankshafts
Once the basic shape is formed, whether by forging or casting, the true artistry of crankshaft manufacturing begins with machining. The forged or cast blank is far from its final, precise dimensions. Machining operations are required to create the critically accurate main journals, crank pins, thrust faces, flanges, and other features. This involves removing material using various cutting tools and techniques. The main journals (where the crankshaft rotates in the engine block bearings) and crank pins (where the connecting rods attach) must be machined to extremely tight tolerances – often measured in microns – and have precise surface finishes. Grinding is a primary method used for finishing these critical bearing surfaces. Specialized grinding machines employ abrasive wheels to remove small amounts of material, achieving the required diameter, roundness, straightness, and surface finish. Turning, milling, and drilling are also used to create other features like keyways, bolt holes, oil passages, and balancing bores. The sequence of these operations is carefully planned to maintain accuracy and minimize distortion. Interestingly enough, modern crankshaft machining centers are highly automated, often using CNC (Computer Numerical Control) technology to ensure repeatability and precision across large production volumes. The challenge in machining crankshafts lies in their complex, multi-axis geometry and the need to maintain concentricity and parallelism between various journals and pins. Getting this right is non-negotiable for smooth engine operation and bearing longevity.
Surface Treatment and Refinement After Initial Machining
Following the main machining operations, further surface treatments and refinements are often applied to enhance the crankshaft's durability and performance. Fillet rolling is a common process applied to the radii connecting the journals/pins to the webs. This involves using hardened rollers to cold-work the surface in these high-stress areas, inducing compressive residual stresses. Compressive stresses on the surface are highly beneficial as they counteract the tensile stresses that cause fatigue cracks, significantly increasing the crankshaft's fatigue strength, particularly crucial at the stress concentration points like fillets. Another important finishing step is microfinishing or superfinishing the bearing journals and pins. This abrasive process removes microscopic surface irregularities left by grinding, producing an exceptionally smooth surface finish. A smoother surface reduces friction and wear between the crankshaft and its bearings, leading to longer bearing life and improved engine efficiency. Many experts agree that achieving the correct surface finish is just as vital as hitting the dimensional tolerances. Additionally, features like oil holes drilled through the crankshaft to lubricate the bearings require deburring and cleaning. This stage is all about perfecting the critical functional surfaces and ensuring the crankshaft can withstand millions of revolutions under load without failing. The level of surface finish and treatment applied depends heavily on the crankshaft's intended application and expected stress levels.
Ensuring Strength and Durability: Heat Treatment and Surface Hardening Processes for Crankshafts
To achieve the required mechanical properties, especially hardness and fatigue resistance, crankshafts undergo various heat treatment processes. The specific type of heat treatment depends on the material (steel or cast iron) and the desired properties. For steel crankshafts, common processes include quenching and tempering. Quenching involves heating the steel to a high temperature (austenite phase) and rapidly cooling it in a medium like oil or water. This creates a hard, brittle structure (martensite). Tempering follows, where the steel is reheated to a lower temperature and held for a specific time before cooling. Tempering reduces brittleness while improving toughness and ductility, achieving the desired balance of hardness and strength throughout the bulk of the material. For specific areas like the bearing journals and pins that experience high wear and stress, surface hardening techniques are often applied. Induction hardening is a widely used method. An induction coil is placed around the journal or pin, and a high-frequency alternating current is passed through it. This rapidly heats a thin layer of the surface through electromagnetic induction. The heated layer is then quickly quenched, creating a hard, wear-resistant surface layer while the core remains tougher and more ductile. This composite structure is ideal for crankshafts, providing a hard wear surface over a strong, fatigue-resistant core.
Exploring Nitriding and Other Hardening Methods for Crankshafts
Beyond induction hardening, other surface hardening methods are also employed in crankshaft manufacturing, with nitriding being a prominent example, particularly for steel crankshafts. Nitriding is a thermochemical process where nitrogen is diffused into the surface of the steel at elevated temperatures (typically 480-580°C). This creates a very hard surface layer composed of nitrides. Nitriding provides excellent wear resistance, fatigue strength, and corrosion resistance. It is often used for high-performance or heavy-duty crankshafts where maximum durability is required. Unlike quenching and tempering or induction hardening, nitriding is performed at relatively lower temperatures, which minimizes distortion. Another method is carbonitriding, which introduces both carbon and nitrogen into the surface layer, offering similar benefits to nitriding but often applied to different steel grades or for achieving different case depths. Flame hardening is a less precise but sometimes used method for larger, less critical crankshafts, involving rapidly heating the surface with a flame followed by quenching. The selection of the specific heat treatment and surface hardening process is critical and depends on the crankshaft material, design, intended application, and performance requirements. Properly executed heat treatment is paramount; improper temperatures, times, or cooling rates can lead to cracking, excessive distortion, or failure to achieve the desired hardness profile, severely compromising the crankshaft's integrity and lifespan. It's a complex interplay of metallurgy and engineering.
The Final Check: Inspection and Testing in Crankshaft Manufacturing
Before any crankshaft leaves the manufacturing facility, it undergoes rigorous inspection and testing. This stage is absolutely non-negotiable in ensuring the quality and reliability of such a critical component. The processes in The Ultimate Guide to Crankshaft Manufacturing wouldn't be complete without verifying that every step has been executed correctly. Dimensional inspection is paramount. This involves measuring key dimensions like journal diameters, pin diameters, stroke length, overall length, runout (straightness), concentricity, and parallelism to ensure they fall within the extremely tight tolerances specified by the design. Coordinate Measuring Machines (CMMs) are often used for highly accurate dimensional checks. Surface finish is also measured on critical bearing surfaces using profilometers. Non-destructive testing (NDT) methods are employed to check for internal or surface defects. Magnetic particle inspection (MPI) is common for ferromagnetic materials (steel and cast iron) to detect surface and near-surface cracks. Dye penetrant inspection (DPI) can also be used. Ultrasonic testing might be employed to check for internal flaws or inclusions within the material. Fatigue testing is sometimes performed on sample crankshafts from a production batch to validate the design and manufacturing process's ability to withstand cyclic loading over its intended lifespan. Balancing is another critical step; crankshafts are balanced to minimize vibration during engine operation. This involves mounting the crankshaft on a balancing machine which identifies areas where material needs to be removed (typically by drilling) or added to achieve rotational balance.
Special Considerations and Addressing Challenges in Crankshaft Manufacturing Processes
Manufacturing crankshafts presents unique challenges that require specialized techniques and careful control. Their complex geometry, involving multiple offsets and journals, makes machining and handling difficult. Achieving and maintaining the extremely tight tolerances required for journals and pins, particularly regarding roundness and surface finish, demands precision machinery and skilled operators. Distortion is a constant concern throughout the manufacturing process, especially during heat treatment and even during machining due to internal stresses. Careful process control, proper clamping, and potentially intermediate stress-relieving steps are necessary to minimize distortion. Material selection is crucial, but ensuring the consistent quality of the raw material from suppliers is equally important. Variations in composition or internal defects in the initial material can lead to problems down the line, such as cracking during forging or heat treatment, or reduced performance in the finished product. The tooling used in forging, machining, and grinding undergoes significant wear due to the forces and materials involved; maintaining tool quality and replacing them promptly is essential for maintaining precision and surface finish. Furthermore, the cost of production, especially for high-performance forged crankshafts, can be substantial, driven by material costs, tooling, energy consumption (particularly in forging and heat treatment), and the complexity of the required machinery and quality control procedures. Optimizing each step to improve efficiency, reduce waste, and maintain quality is an ongoing effort in the industry. It truly takes a specialized approach to consistently produce high-quality crankshafts.
In addressing these complexities and ensuring the reliability of components like crankshafts, our company focuses on providing solutions that support precision manufacturing and quality control. Whether it's offering advanced materials tailored for high-stress applications, providing cutting-edge machining technologies that achieve micro-level tolerances, or implementing stringent inspection protocols that detect even the smallest defect, we are committed to helping manufacturers produce crankshafts that meet the highest standards of performance and durability. Our expertise spans various stages of the manufacturing lifecycle, allowing us to partner with companies to optimize their processes, improve efficiency, and ultimately deliver superior products to the market. The challenges in crankshaft manufacturing are significant, but with the right materials, technology, and quality assurance measures, they can be consistently overcome, ensuring the reliable performance of the engines that power our world.
In conclusion, The Ultimate Guide to Crankshaft Manufacturing Processes reveals a journey that is both technically demanding and metallurgically complex. From the initial choice of high-strength steel or durable cast iron, through the intense shaping of forging or the precision pouring of casting, followed by meticulous machining, surface finishing, and critical heat treatments, every step is vital. Rigorous inspection and testing provide the final assurance of quality. This isn't just a sequence of steps; it's an integrated process aimed at creating a component capable of withstanding immense cyclical loads and operating with pinpoint precision for millions of cycles. Understanding these processes highlights why crankshafts are such marvels of engineering. Did this deep dive give you a new perspective on the effort involved in creating engine components?
