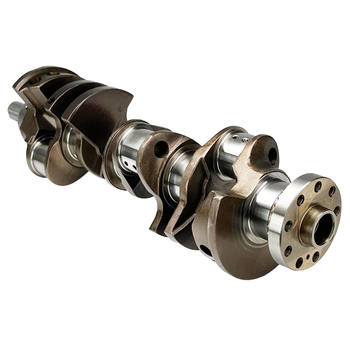

In the intricate heart of most internal combustion engines lies a component of paramount importance: the crankshaft. This mechanical marvel is responsible for converting the linear motion of the pistons into rotational motion, ultimately powering your vehicle or machinery. While various manufacturing methods exist, the cast crankshaft stands out as a widely adopted solution, particularly in mass-produced engines across the globe. Its prevalence isn't accidental; it's a direct result of a careful balance struck between manufacturing cost, design flexibility, and performance characteristics suitable for numerous applications. Have you ever stopped to think about the complex processes that bring such a critical component to life?
The Foundational Process: Crafting the Cast Crankshaft
Creating a cast crankshaft begins with a highly specialized manufacturing process. Unlike forging, which shapes metal through immense pressure, casting involves pouring molten metal into a mold designed in the precise shape of the desired crankshaft. The materials of choice for this application are typically specific grades of cast iron, most notably ductile iron (also known as spheroidal graphite iron) or, less commonly in modern engines, grey iron. The process starts with creating a detailed pattern, often using materials like wood or plastic, which is then used to form a mold, usually made from sand. This mold captures the complex geometry of the crankshaft, including journals, counterweights, and connecting rods interfaces. Pouring molten metal requires careful control of temperature and flow rate to ensure the mold fills completely without defects. The subsequent cooling process is also critical; controlled solidification is needed to achieve the desired metallurgical structure in the final component. Once cooled, the casting is removed from the mold in a step called shakeout, initiating a series of post-casting operations. Frankly speaking, achieving a defect-free casting is a sophisticated endeavor demanding significant expertise.
Intricacies of Crankshaft Mold Design and Pouring
Designing the mold for a cast crankshaft is a highly technical task that goes far beyond simply creating a cavity in the shape of the part. Engineers must meticulously plan for how the molten metal will flow into the mold, how gases will escape, and how the metal will shrink as it cools and solidifies. This involves designing intricate gating systems (channels for the metal to flow) and risers (reservoirs of molten metal that feed the shrinking areas to prevent voids or porosity). The thermal properties of the mold material and the cooling rates play a vital role in determining the final grain structure and mechanical properties of the casting. Improper design or control can lead to significant defects such as shrinkage cavities, gas porosity, or cold shuts, any of which could render the crankshaft unusable or compromise its structural integrity under engine loads. Modern casting techniques often employ advanced simulation software to predict and optimize the metal flow and solidification process before any metal is poured, drastically reducing trial and error and improving first-pass yield rates. It's this attention to detail in the early stages that ensures the foundational quality of the cast component.
Appreciating the Advantages of Cast Crankshafts
One of the most compelling reasons for the widespread adoption of the cast crankshaft is its inherent cost-effectiveness, particularly in high-volume production scenarios. The casting process is generally less expensive than forging for complex shapes, requiring less material waste and lower initial tooling costs for the complex dies needed in forging. This makes them an attractive option for mainstream passenger vehicles where cost per unit is a primary driver. Furthermore, casting offers remarkable design flexibility. Complex geometries, intricate counterweights, and even hollow sections for weight reduction or oil passages can be more easily incorporated during the casting process compared to forging. This design freedom allows engineers to optimize the crankshaft's structure for specific engine requirements and packaging constraints without the significant cost penalties often associated with complex forged designs. This ability to balance performance needs with manufacturing economy is a cornerstone of the cast crankshaft's success in the automotive industry. The advantages of cast crankshafts extend beyond just the initial manufacturing cost; they influence downstream processes as well.
Beyond manufacturing economics and design freedom, cast crankshafts possess other beneficial characteristics. The metallurgical structure achieved through controlled casting, often involving nodular graphite in ductile iron, can offer good damping properties. This means the material can effectively absorb vibrations generated during engine operation, contributing to smoother running and potentially reducing noise, vibration, and harshness (NVH) levels in the vehicle. While perhaps not possessing the ultimate strength or fatigue resistance of a forged equivalent designed for extreme conditions, the damping capacity is a valuable trait for many standard engine applications. Additionally, cast crankshafts are often easier to balance after manufacturing compared to some forged counterparts. Balancing is crucial for reducing vibration and ensuring smooth engine performance at high RPMs. The near-net shape achieved in casting requires less subsequent machining for balancing, further contributing to overall production efficiency. These combined benefits solidify the cast crankshaft's position as a viable and often preferred choice for a vast range of engines.
Cast vs. Forged Crankshafts: A Fundamental Engineering Choice
When engineers design an engine, one of the fundamental decisions involves selecting the manufacturing method for the crankshaft: casting or forging. This choice is dictated by a complex interplay of factors including expected engine load, maximum RPM, power output, intended application, cost targets, and desired lifespan. A cast crankshaft, while offering cost and design advantages, typically exhibits lower tensile strength and fatigue resistance compared to a forged crankshaft made from similar material alloys. Forging aligns the material's grain structure along the shape of the crankshaft, creating a component with superior strength and resistance to repetitive stress cycles, which are inherent in engine operation. This is why high-performance racing engines, heavy-duty diesel engines, or applications experiencing extremely high cylinder pressures and RPMs almost exclusively utilize forged crankshafts. The demands placed on the crankshaft in these environments exceed the typical capabilities of a standard cast component, necessitating the robust mechanical properties that forging provides. Understanding this fundamental difference is key to appreciating where each type fits best in the automotive landscape. It's not simply one being "better" than the other, but rather which process yields a component best suited for a specific job.
The application dictates the material and process choice. For example, a small, naturally aspirated engine in a passenger car that operates primarily at moderate speeds and loads will likely be perfectly served by a cast crankshaft, which offers sufficient durability for millions of cycles under those conditions while keeping production costs down. Conversely, a turbocharged engine producing high horsepower and torque, especially one destined for performance vehicles or constant heavy-duty use, will require the enhanced strength and fatigue life of a forged crankshaft. The higher combustion pressures and greater inertial forces at play in such engines place far greater stress on the crankshaft journals and webs. While advancements in casting technology and materials have certainly narrowed the gap in some areas, particularly with high-strength ductile iron, the fundamental difference in grain structure between casting and forging remains a critical distinction influencing the ultimate load-bearing capacity and longevity of the crankshaft. Selecting the appropriate manufacturing method is a critical engineering decision with significant implications for engine performance, reliability, and cost.
Ensuring Reliability: Quality Control for Cast Crankshafts
Manufacturing a cast crankshaft is only half the battle; ensuring its quality and reliability is paramount. Given the critical nature of the crankshaft and the immense forces it endures, rigorous quality control (QC) and testing procedures are indispensable. These processes begin early, inspecting the raw materials and continuing throughout the casting process and post-casting treatments. Non-destructive testing (NDT) methods are extensively used to detect potential flaws without damaging the component. Common NDT techniques include magnetic particle inspection (MPI), which reveals surface and near-surface cracks by applying magnetic fields and fine particles, and ultrasonic testing (UT), which uses sound waves to detect internal voids, inclusions, or shrinkage defects deep within the material. Visual inspection under magnification is also crucial for identifying surface imperfections that could act as stress concentration points. These checks are vital because even small flaws in a highly stressed component like a crankshaft can propagate under cyclic loading, leading to premature failure. Ensuring the absence of such defects is a non-negotiable step in delivering a reliable cast crankshaft.
Mechanical Testing and Precision Checks
Beyond detecting obvious flaws, the mechanical properties of the cast crankshaft must also be verified to ensure it meets performance specifications. This involves destructive testing on sample parts or test pieces cast alongside the main components. Tensile testing measures the material's strength and ductility, while hardness tests assess its resistance to deformation. Crucially, fatigue testing is performed to determine how many stress cycles the material can withstand before failure. Crankshafts are subjected to millions, if not billions, of stress cycles over their lifetime, so adequate fatigue strength is paramount. These tests provide critical data points confirming that the casting process and heat treatments have yielded a material with the required mechanical properties. Furthermore, precise dimensional checks are performed using coordinate measuring machines (CMMs) or other high-precision equipment to ensure that all journals, throws, and mounting surfaces are within extremely tight tolerances. Finally, balancing the crankshaft to minimize vibration is a critical final step, involving removing small amounts of material from the counterweights. All these QC measures, from NDT to mechanical testing and balancing, collectively guarantee the performance and longevity of the cast crankshaft under operational loads. Many experts agree that investing heavily in robust QC is far more cost-effective than dealing with field failures.
Addressing Challenges and Advancing Cast Crankshaft Technology
Like any manufacturing process, casting crankshafts presents its own set of challenges. Common issues include porosity (small voids within the metal), shrinkage defects (cavities formed as the metal cools and shrinks), inclusions (undesirable foreign particles trapped in the metal), and potential cracking during cooling if stresses are not managed properly. These defects, if not caught during quality control, can significantly weaken the crankshaft and lead to catastrophic engine failure. The intricate shape of a crankshaft, with varying section thicknesses and complex junctions, makes it particularly susceptible to issues like hot spots and differential cooling rates, which can exacerbate shrinkage and stress problems. Overcoming these challenges requires a deep understanding of metallurgy, fluid dynamics, and thermal physics, coupled with precise process control. Frankly speaking, manufacturing high-quality castings consistently is an art form backed by rigorous science and engineering.
Significant advancements have been made in overcoming the traditional limitations of cast crankshafts. Modern foundries utilize sophisticated techniques such as vacuum-assisted pouring, improved mold materials with better thermal conductivity control, and innovative gating and riser designs optimized through computational fluid dynamics (CFD) and solidification simulation software. The development of higher-strength ductile iron alloys with improved fatigue properties has also pushed the boundaries of what cast crankshafts can achieve. Furthermore, advanced post-casting processes, including specific heat treatments like austempering (resulting in austempered ductile iron, ADI), can significantly enhance the strength, wear resistance, and fatigue life of cast iron crankshafts, bringing their performance closer to certain grades of forged steel in specific applications. These continuous improvements mean that today's cast crankshafts are far more robust and reliable than those of previous generations, enabling their use in increasingly demanding engine designs. Our company has invested heavily in these modern techniques and material science advancements to ensure the highest quality output.
Selecting the Right Crankshaft and Our Expertise
Choosing between a cast and a forged crankshaft ultimately boils down to a thorough assessment of the engine's intended application and performance requirements. For standard passenger vehicles, light trucks, and many industrial applications where cost-effectiveness, good damping, and sufficient durability for typical operating loads are priorities, the cast crankshaft is often the optimal choice. For high-performance engines, heavy-duty applications, or situations involving extreme stress, high RPMs, and critical reliability demands, the superior strength and fatigue resistance of a forged crankshaft are usually necessary. Understanding the trade-offs between manufacturing cost, design complexity, material properties, and expected operational life is crucial for making an informed decision. It’s worth noting that while casting is generally more cost-effective for complex shapes in high volume, both processes require immense technical expertise and stringent quality control to produce reliable components. How can you be sure you are selecting or sourcing crankshafts that meet the exact needs of your specific engine design and application? This is where expert knowledge and manufacturing capability become indispensable.
Our company specializes in providing high-quality engine components, including expertly manufactured crankshafts. We understand the nuances of both casting and forging processes and possess the metallurgical expertise to recommend the most suitable material and manufacturing method for your specific engine project. Whether your needs call for the cost-efficiency and design flexibility of a modern cast crankshaft or the ultimate strength and durability of a forged one, we have the capability and experience to deliver components that meet the most stringent performance and reliability standards. We employ state-of-the-art casting and machining technologies, coupled with comprehensive quality control protocols, including advanced NDT and mechanical testing, to ensure every crankshaft leaving our facility performs flawlessly. Choosing the right partner for your engine component needs is critical; let us help you navigate the complexities of crankshaft selection and manufacturing to achieve optimal engine performance and longevity. We offer actionable solutions tailored to your unique requirements, ensuring you get the right crankshaft for the job.
