When enthusiasts talk about legendary engines, the Toyota 2JZ is almost invariably at the top of the list. Renowned for its incredible strength, reliability, and potential for massive power outputs, this straight-six engine has cemented its place in automotive history, particularly among the tuning and motorsports communities. But what makes the 2JZ so special, so inherently capable of handling boost levels and horsepower figures that would shatter many other engines? While the block and cylinder head certainly play crucial roles, the true heart of the 2JZ's resilience lies deep within: the crankshaft. This single component is responsible for translating the explosive energy of combustion into rotational motion, propelling the vehicle forward. Its design, materials, and manufacturing precision are critical factors that determine an engine's ultimate capability and lifespan. Understanding the nuances of the Toyota 2JZ crankshaft is essential for anyone looking to build, maintain, or simply appreciate these engineering marvels. It's not just a metal rod; it's the linchpin holding together an entire symphony of internal combustion. Without a robust crankshaft, all the carefully calibrated timing, fueling, and boost pressure would be meaningless, leading to catastrophic failure. So, let's delve into what makes this particular crankshaft so legendary.

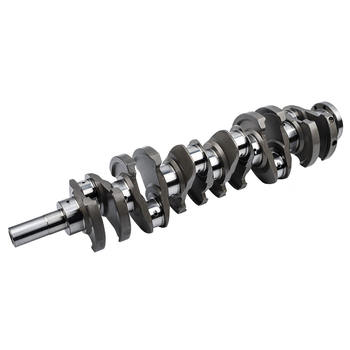

The original 2JZ engine, specifically the turbocharged 2JZ-GTE variant found in icons like the Toyota Supra Mk4, was designed with a level of over-engineering that was perhaps unexpected for a mass-produced vehicle. Toyota engineers built in significant headroom, likely anticipating potential future performance upgrades or simply aiming for bulletproof reliability under various conditions. This philosophy extended directly to the crankshaft. The factory 2JZ crankshaft, even in its stock form, is often cited as one of the strongest production crankshafts ever made. Unlike many crankshafts of its era, and even some contemporary designs, the 2JZ-GTE crankshaft was forged. Forging is a manufacturing process that involves shaping metal using localized compressive forces, typically through hammering or pressing. This process aligns the metal's grain structure along the shape of the component, resulting in significantly increased strength and fatigue resistance compared to cast crankshafts. The material used is typically a high-quality steel alloy. This combination of forging and quality material provided the factory crankshaft with an exceptional level of durability, capable of reliably supporting power levels far exceeding the stock 276 horsepower rating. Many builders pushing moderate to high boost levels are often surprised at just how much power the stock forged 2JZ crankshaft can handle before needing an upgrade. This inherent strength is a key reason why the 2JZ platform remains so popular for high-performance builds decades after its introduction.
Delving deeper into the factory 2JZ crankshaft's design, several features contribute to its robustness. It typically features generous journal overlap, meaning the main bearing journals and rod bearing journals overlap significantly when viewed from the side. This overlap increases the stiffness of the crankshaft, reducing flexing under load, which is crucial for maintaining proper bearing clearance and preventing damage. The diameter of the main and rod journals is also substantial, providing a large surface area for the bearings to support the rotating assembly. Fillet radii (the transition curves between the journals and the crank cheeks) are carefully designed and finished to minimize stress concentrations, which are common points for cracks to initiate under high stress. Furthermore, the crankshaft is precision balanced from the factory. Proper balancing is essential for smooth engine operation at high RPMs and reduces harmful vibrations that can lead to premature wear or failure of components. While factory balancing is generally good for stock power levels, performance builders often opt for more precise dynamic balancing when building an engine destined for high RPM or extreme power. The quality of the factory heat treatment also plays a role in the durability of the metal. All these factors combined make the standard Toyota 2JZ crankshaft a formidable component right off the assembly line.
Despite the impressive strength of the factory forged 2JZ crankshaft, there are limits, especially when pushing towards four-digit horsepower figures or extremely high RPM limits. For builders aiming for these levels, or simply seeking maximum insurance and reliability, upgrading the crankshaft becomes a necessary consideration. Aftermarket crankshafts for the 2JZ are typically manufactured from even higher-grade steel alloys, such as 4340 or 300M steel, and are often further processed with techniques like nitriding or counterweight profiling. Upgraded crankshafts are almost always forged, mirroring the strength benefits of the factory component but using superior materials and often more refined manufacturing processes. Some high-end aftermarket crankshafts are designed with specific modifications, such as knife-edging counterweights to reduce windage losses within the crankcase at high RPM, or incorporating different journal sizes or stroke lengths for custom engine builds (though the stock 86mm stroke is most common for the 2JZ). When considering an aftermarket 2JZ crankshaft, factors like the material grade, manufacturing method (forging quality), balancing process (internal vs. external, precision level), and surface treatments are paramount. Choosing the right aftermarket crankshaft depends heavily on the intended power output, engine usage (street, drag, circuit), and budget.
Common issues with the factory 2JZ crankshaft are relatively rare under normal operating conditions or even moderate performance upgrades. However, like any mechanical component subjected to extreme stress, failure can occur. The most common failure mode, particularly in high-horsepower applications, is often due to excessive flexing (bending) under cylinder pressure loads, especially if main bearing clearances are incorrect or the block isn't properly reinforced (e.g., with a main cap girdle). Flexing can lead to premature bearing wear, journal damage, or ultimately, catastrophic fracture of the crankshaft itself. Fatigue failure, cracking initiated at stress concentrations, is another possibility, though the factory design's attention to detail minimizes this risk. Failures can also be linked to issues originating elsewhere in the rotating assembly, such as connecting rod failure putting extreme shock loads on the rod journal, or severe detonation causing incredibly high peak cylinder pressures. Running engines with insufficient oil pressure, using the wrong oil type, or neglecting maintenance are also surefire ways to accelerate wear and potentially lead to crankshaft-related issues, even with such a robust component. Understanding the potential failure points helps builders implement preventative measures and choose appropriate components.
Choosing between a modified stock 2JZ crankshaft and an aftermarket unit for a high-performance build involves weighing several factors. For many builds targeting up to the 800-1000 horsepower range, a properly inspected, magnafluxed, and balanced stock forged crankshaft is often more than sufficient. Many experienced builders prefer the known quantity of the factory part, provided it's in good condition and prepared correctly. This preparation typically involves thorough cleaning, inspection for cracks (magnafluxing is a standard method), checking journal dimensions and ensuring they are within specification (or regrinding if necessary), and precise dynamic balancing. However, when pushing significantly beyond the 1000 horsepower mark, especially in demanding motorsports environments like drag racing or road racing where the engine sees sustained high loads and RPM, the benefits of a purpose-built aftermarket crankshaft become clearer. These aftermarket units are designed from the ground up to handle immense loads and often feature superior materials and manufacturing tolerances. The choice isn't always straightforward and depends heavily on the specific goals and budget of the project. Frankly speaking, throwing money at an aftermarket crank when a stock one will suffice for your target power is wasteful; conversely, trying to save money by using a stock crank past its safe limit is inviting disaster.
The market for 2JZ performance parts, including crankshafts and related components, is extensive. You'll find numerous manufacturers offering aftermarket crankshafts tailored to different power goals and budgets. These range from entry-level forged cranks designed for mild upgrades to high-end billet crankshafts made from solid blocks of steel, representing the pinnacle of strength and precision. Beyond the crankshaft itself, building or rebuilding a 2JZ rotating assembly requires careful selection of connecting rods, pistons, and bearings, all of which must be compatible with the crankshaft and the engine's intended use. Bearing clearance, in particular, is critically important for crankshaft longevity. Too tight, and friction will cause excessive heat and wear; too loose, and oil film strength is compromised, leading to metal-to-metal contact. Precision machining of the block's main bearing bores and the connecting rods' big ends is essential to ensure everything aligns perfectly. This is where expert machining and assembly are non-negotiable. Have you ever wondered why seemingly identical engine builds can have vastly different lifespans? Often, it comes down to the meticulous detail applied during the machine work and assembly phases, particularly concerning the rotating assembly and crankshaft installation.
Maintaining a high-performance 2JZ engine with an upgraded or even stock crankshaft capable of handling significant power requires a different level of attention compared to a standard road car engine. Regular, high-quality oil changes using appropriate performance-oriented lubricants are paramount. The oil is not just a lubricant; it's a coolant and hydraulic fluid that supports the bearings. Monitoring oil pressure is also crucial, as it's a direct indicator of the health of the bearing system supporting the crankshaft. Any significant drop in oil pressure can signal impending bearing failure. Avoiding detonation through proper tuning is also vital, as uncontrolled combustion events inflict immense stress on the crankshaft and the entire rotating assembly. Additionally, for engines used in motorsports, regular inspections and preventative maintenance are key. This might include periodic checks of bearing clearances or even disassembly and magnafluxing of components after a certain number of race hours or events. Protecting the core of your engine, the crankshaft, through diligent maintenance and careful operation is far less costly and time-consuming than replacing it after a catastrophic failure.
For those seeking to maximize the performance potential of their 2JZ engine, understanding the role and limitations of the crankshaft is the first step. Whether you plan to use a carefully prepared stock unit or invest in a high-strength aftermarket forged 2JZ crankshaft, ensuring the rest of your rotating assembly components (rods, pistons, bearings) are appropriately matched and installed with extreme precision is non-negotiable. The strength is built into the components, but the reliability comes from the quality of the machine work and assembly. This isn't a job for the faint of heart or the inexperienced. Precision matters down to thousandths of an inch. Choosing components from reputable manufacturers known for their quality control is also key. A cheap, poorly manufactured crankshaft or set of bearings can quickly lead to engine failure, no matter how skilled the assembly is. Investing in quality parts and professional labor for the machine work and assembly pays dividends in the long run, offering peace of mind and a significantly higher chance of achieving your performance goals reliably. Remember, the crankshaft is the foundation; everything else builds upon its integrity. So, what level of power are you aiming for, and what steps will you take to ensure your 2JZ's heart is up to the task?
In conclusion, the Toyota 2JZ crankshaft is undeniably a marvel of engineering, providing a solid foundation for performance builds right from the factory. Its forged construction and robust design are key contributors to the engine's legendary status. However, pushing the boundaries of horsepower requires careful consideration of its limitations and the potential benefits of upgrading to an aftermarket equivalent. Selecting the right crankshaft and ensuring it is installed correctly with high-quality, compatible supporting components is paramount for reliability at elevated power levels. Proper maintenance, including using high-quality oil and avoiding detonation, is also essential for the longevity of this critical component. Whether preserving a classic or building a high-horsepower monster, the 2JZ crankshaft deserves respect and attention. Understanding its characteristics allows enthusiasts to make informed decisions that will ultimately determine the success and durability of their build. For those embarking on such a project, sourcing high-quality engine components is a critical step. Our company specializes in providing performance-grade engine internals, including crankshafts and related rotating assembly components, designed to meet the demanding requirements of high-power 2JZ builds, offering the precision and strength needed for reliable performance. Planning your build meticulously and investing in quality parts and labor is the best way to unlock the full potential of this iconic engine platform.
