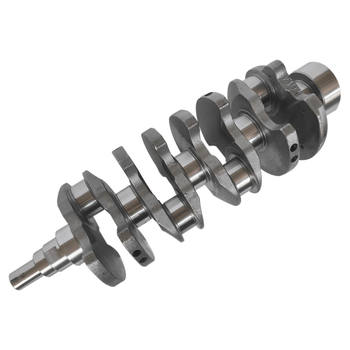

In the intricate ballet that occurs within an engine, the crankshaft plays the undisputed leading role. It’s the component that takes the linear motion of the pistons and transforms it into rotational energy, driving everything from the wheels of a car to industrial machinery. Without a robust and precisely engineered crankshaft, the engine simply cannot function. While various materials and manufacturing methods exist, the cast iron crankshaft has long held a significant place in the automotive and industrial sectors. Its prevalence isn't accidental; it stems from a combination of favorable material properties, cost-effective production, and reliable performance in a wide range of applications. Understanding the nuances of this critical component, including its composition, manufacturing, and specific advantages, is key to appreciating its widespread use and continued relevance in today's engineering landscape. To be honest, the sheer volume of engines relying on this technology is staggering, making it a topic well worth exploring in depth.
The Foundation: Why Choose Cast Iron?
The selection of material for a crankshaft is a decision fraught with engineering considerations. The component is subjected to immense and cyclical loads, including bending forces from the piston connecting rods, torsional stresses from the rotational motion, and inertial forces. The material must possess sufficient strength, fatigue resistance, stiffness, and wear resistance in the bearing areas. So, why does cast iron, particularly ductile iron, often fit the bill? Firstly, cast iron, by its nature, exhibits excellent damping properties, meaning it can absorb vibrations effectively. This is crucial in an engine environment where rapid combustion events create significant dynamic stresses. Less vibration can lead to smoother engine operation and potentially longer lifespan for other components. Secondly, the casting process itself allows for the creation of complex shapes relatively easily and cost-effectively compared to machining from a solid block or forging. This is particularly advantageous for integrating counterweights and oil passages into the crankshaft's design. Furthermore, modern metallurgical advancements have led to various grades of cast iron, especially ductile iron, that possess mechanical properties, including strength and fatigue resistance, suitable for many demanding engine applications. It's worth noting that not all cast iron is the same; the microstructure significantly impacts performance, making the choice of grade paramount.
The Manufacturing Journey: Bringing a Crankshaft to Life
Creating a cast iron crankshaft is a multi-step process that combines traditional foundry techniques with modern precision engineering. The journey typically begins with pattern making, where a replica of the desired crankshaft shape is created, often using wood, metal, or high-density foam. This pattern is then used to create a mold, commonly using sand molding techniques. The sand mixture, often bonded with resins, is compacted around the pattern to form the negative cavity of the crankshaft. Once the mold is ready, molten cast iron, heated to temperatures exceeding 1400°C (2550°F), is carefully poured into the gating system, filling the mold cavity. Controlling the cooling rate is critical, especially when producing ductile iron, to ensure the carbon forms beneficial nodules rather than detrimental flakes. After cooling and solidification, the raw casting is removed from the mold, and excess material like risers and gates are removed. At this stage, the casting is far from its final form. It requires significant machining – grinding and polishing the main journals and connecting rod journals to extremely tight tolerances, drilling oil passages, and balancing the entire assembly. Interestingly enough, the precision required in these final steps is immense, often measured in microns, ensuring smooth rotation and minimizing vibration in the running engine.
Ductile Iron: The Workhorse of Cast Crankshafts
While grey cast iron has been used historically for some less stressed components, the majority of modern cast iron crankshafts are made from ductile iron, also known as nodular cast iron. The key difference lies in the microstructure of the graphite. In grey cast iron, the graphite exists as flakes, which act as stress risers and make the material brittle under tensile load. In ductile iron, however, a small addition of elements like magnesium during the melting process causes the graphite to form small, spherical nodules. These nodules do not significantly interrupt the continuity of the metallic matrix, resulting in a material that is much stronger and, importantly, more ductile than grey cast iron. This increased ductility allows the material to yield slightly under stress before fracturing, providing better toughness and fatigue resistance – properties absolutely essential for a component subjected to constant cyclical loading. Frankly speaking, without the development and widespread adoption of ductile iron technology, the use of cast iron for crankshafts in many modern engines would be far less common, particularly in applications demanding higher performance and durability. The ability to achieve strengths comparable to some steel grades while retaining the cost advantages and casting flexibility of iron makes ductile iron a compelling choice.
Engineering Design: Shaping Strength and Performance
The design of a cast iron crankshaft is not merely about replicating a basic shape; it involves complex engineering analysis to ensure it can withstand the specific loads of the engine it will power. Every curve, fillet radius, and counterweight has a purpose, optimized to manage stresses and inertial forces. Stress concentrations are particularly concerning areas, often occurring at the transitions between journals and webs or at oil holes. Engineers use sophisticated computer simulations, such as Finite Element Analysis (FEA), to predict stress distributions and identify potential failure points under various operating conditions. The design of counterweights is also critical for balancing the rotating and reciprocating masses within the engine, minimizing vibration and ensuring smooth operation. The size and position of these counterweights are carefully calculated based on the engine's configuration and operating speed. In my experience, neglecting seemingly minor design details, like the smoothness and precise radius of fillets, can significantly compromise the fatigue life of the component. High-quality manufacturers pay meticulous attention to these details during both the design phase and the subsequent manufacturing processes, including casting and machining, to ensure the final product meets stringent performance and durability standards.
Quality Control: Ensuring Reliability from Casting to Final Product
Given the critical function of a crankshaft, rigorous quality control is paramount throughout the manufacturing process. It starts with the raw material – verifying the chemical composition of the molten iron before pouring is essential to ensure it will solidify into the desired microstructure, particularly for ductile iron. After casting, initial inspections often involve visual checks for surface defects and dimensional verification using jigs and fixtures. Non-destructive testing (NDT) methods are widely employed to detect internal flaws that are not visible externally. Techniques like magnetic particle testing can reveal surface cracks, while ultrasonic testing or radiographic inspection (X-ray) can identify internal voids or inclusions within the casting. Hardness testing is performed to confirm the material has the expected mechanical properties after heat treatment (if applicable). Furthermore, precise dimensional checks of the journals, pins, and other critical surfaces are performed using highly accurate measuring equipment. Balancing is a final, crucial step, where material may be removed from counterweights to ensure the crankshaft rotates smoothly at high speeds, minimizing potentially damaging vibrations. This multi-layered approach to quality control ensures that each cast iron crankshaft leaving the factory meets strict specifications for performance and safety.
Benefits That Drive Adoption: Why Cast Iron Reigns in Many Engines
Despite the existence of alternative materials and manufacturing methods, the cast iron crankshaft remains a dominant force in the engine world for several compelling reasons. Perhaps the most significant advantage is cost-effectiveness. The casting process, while requiring initial investment in tooling, is generally less expensive for high-volume production compared to forging or machining from billet, especially for complex designs. This makes cast iron crankshafts a highly attractive option for mass-produced vehicles and equipment where cost optimization is a key factor. As mentioned earlier, the inherent damping properties of cast iron contribute to reduced engine vibration and noise, enhancing occupant comfort and potentially increasing the lifespan of surrounding components by reducing fatigue. The casting process also allows for greater design flexibility, enabling engineers to integrate complex features like optimized counterweights and oil passages directly into the initial shape, reducing the need for extensive subsequent machining. Furthermore, modern ductile iron offers a good balance of strength, stiffness, and wear resistance, making it suitable for a wide range of engine sizes and power outputs, particularly in passenger cars, light trucks, and various industrial applications. These benefits collectively contribute to its enduring popularity.
When Alternatives Take the Stage: Forged vs. Cast
While cast iron crankshafts offer many advantages, they are not the universal solution for every engine application. In high-performance engines, heavy-duty diesel engines, or applications requiring exceptional strength and durability under extreme stress, forged steel crankshafts are often the preferred choice. Forging is a process where steel is heated and shaped under immense pressure, aligning the grain structure of the metal along the lines of stress. This results in superior fatigue strength and impact resistance compared to a cast structure, even with ductile iron. Forged crankshafts can typically withstand higher engine speeds, boost pressures, and overall power outputs before succumbing to fatigue failure. However, forging is generally a more expensive process, and the resulting shapes are often simpler, requiring more extensive machining to achieve the final form and features. Therefore, the choice between a cast iron crankshaft and a forged steel one is a careful engineering trade-off based on the specific demands of the engine, the required lifespan, the production volume, and the overall cost constraints. Understanding these differences is crucial for selecting the right component for a given application.
Real-World Applications: Where Do We Find Them?
Walk through any car dealership or industrial equipment show, and you'll likely encounter numerous examples of engines utilizing cast iron crankshafts. They are the backbone of power in countless passenger vehicles, from compact cars to SUVs, offering a reliable and cost-effective solution for everyday driving. Light and medium-duty trucks often rely on cast iron crankshafts as well, providing the necessary durability for hauling and commercial use without the higher cost of forged alternatives unless specifically designed for heavy-duty vocational applications. Beyond the automotive world, these crankshafts are integral to various industrial engines powering generators, pumps, compressors, and agricultural machinery. Their ability to be produced efficiently in high volumes makes them ideal for mass-market applications where balancing performance, durability, and manufacturing cost is critical. Have you ever wondered what spins inside the engine of your family car? Chances are, it's a precisely engineered cast iron crankshaft diligently converting the power from combustion into motion, day after day, mile after mile, proving its worth through consistent, reliable performance in diverse real-world scenarios across the globe.
Choosing the Right Crankshaft: What to Consider
Selecting the appropriate crankshaft for an engine build or replacement involves evaluating several critical factors. Firstly, the intended application and expected power output are paramount. A standard cast iron crankshaft might be perfectly adequate for a naturally aspirated passenger car engine, but a high-boost turbocharged engine or a heavy-duty industrial application might necessitate a component with higher fatigue strength, potentially leading you towards a forged steel alternative or a specially engineered high-strength cast iron variant. Operating conditions, including maximum engine speed and expected load cycles, must also be considered. Furthermore, the quality of manufacturing is non-negotiable. A poorly cast or machined crankshaft, regardless of material, will be a point of failure. Look for suppliers with a proven track record, stringent quality control processes, and expertise in the specific type of cast iron metallurgy required. Compatibility with other engine components, such as connecting rods and bearings, is also essential for proper function and longevity. Making an informed decision based on these criteria ensures the heart of your engine is built for reliable performance.
Beyond the Basics: Quality and Expertise Matter
It's easy to view a cast iron crankshaft as just another metal part, but its role and the precision required in its manufacture demand a deeper appreciation. Achieving the optimal balance of material properties in ductile iron – ensuring the graphite nodules are properly formed and distributed within a strong matrix – requires metallurgical expertise and tightly controlled foundry practices. The casting process itself, from mold design to pouring temperature and cooling rates, directly impacts the structural integrity and performance of the final product. Subsequent machining operations, including precision grinding, balancing, and surface finishing of the journals, must be executed to extremely tight tolerances to prevent premature wear on bearings and minimize vibration. This level of precision and control is the hallmark of a high-quality manufacturer. It's not just about pouring molten iron; it's about engineering the material and shaping it with meticulous accuracy. Many experts agree that the difference between a good cast iron crankshaft and a problematic one lies in the quality control and manufacturing precision employed at every single stage of production, highlighting the value of partnering with experienced professionals in the field.
Conclusion: The Enduring Legacy of Cast Iron
The cast iron crankshaft has proven itself time and again as a reliable, cost-effective, and capable component for a vast number of engine applications. Its unique combination of material properties, particularly in the form of ductile iron, coupled with the economic advantages of the casting process, ensures its continued relevance in the automotive, industrial, and agricultural sectors. While high-stress applications may demand the superior fatigue strength of forged steel, the cast iron crankshaft remains the workhorse for countless engines worldwide, powering everything from daily commutes to essential industrial operations. Choosing the right crankshaft requires careful consideration of the engine's intended use, performance demands, and, crucially, the quality of the manufacturing process. As engine technology evolves, so too does the metallurgy and precision applied to these critical components, ensuring that the cast iron crankshaft continues to deliver dependable performance. Looking ahead, the advancements in casting simulation and post-processing techniques suggest that cast iron will remain a vital material for crankshaft production. If you're seeking reliable, high-quality cast iron crankshafts engineered for performance and durability, considering a manufacturer with deep expertise in metallurgy, casting, and precision machining is the crucial next step.
