Delving into the intricate world of internal combustion engines reveals a host of critical components, each playing a specific and indispensable role. Among these, often overshadowed by more prominent parts like pistons and crankshafts themselves, lies the crankshaft thrust bearing. While perhaps not as widely discussed, understanding crankshaft thrust bearings and their function is absolutely fundamental to grasping engine mechanics, longevity, and performance. These specialized bearings are tasked with a unique and vital job: managing the fore-and-aft, or axial, movement of the crankshaft within the engine block. Without effective control of this axial play, the engine would be susceptible to significant internal damage, impacting everything from connecting rods and cylinder block integrity to the precision required for timing systems. Frankly speaking, the thrust bearing acts as a crucial positional anchor for the crankshaft along its rotational axis, absorbing forces that would otherwise cause detrimental shifting. It's a small component performing a task with massive implications for the entire engine assembly, ensuring components maintain their critical alignments under various operating loads, especially those generated during clutch operation in manual transmissions or by torque converter pressure in automatics. Neglecting its importance can lead to costly repairs and catastrophic engine failure, highlighting why a deep understanding is beneficial for technicians, engineers, and enthusiasts alike. This component truly punches above its weight in terms of significance.

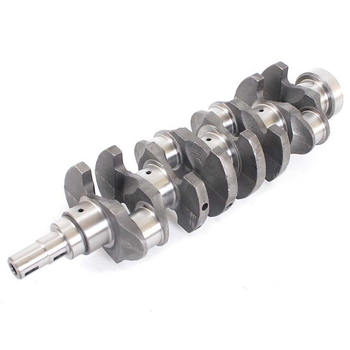

What Exactly is a Crankshaft Thrust Bearing?
So, what precisely constitutes a crankshaft thrust bearing? Unlike main bearings, which primarily handle the radial loads (forces perpendicular to the crankshaft's axis of rotation) generated by combustion and reciprocating mass, the thrust bearing is specifically designed to withstand and manage axial loads – forces acting parallel to the crankshaft's length. Visually, they often appear as flanged sections integrated into one of the main bearings (typically the center or rear main bearing, depending on engine design) or as separate, semi-circular or full-circle washers positioned adjacent to a main bearing cap and the crankshaft's dedicated thrust surface. These bearing surfaces feature precisely machined faces that press against corresponding machined faces on the crankshaft itself, usually on either side of a main journal cheek. The construction typically involves a steel backing for structural support, onto which layers of bearing material – often alloys of copper, lead, tin, or aluminum – are bonded. These materials are chosen for their conformability, embeddability (ability to absorb small debris particles), and anti-friction properties, particularly under boundary lubrication conditions which can occur momentarily. The design often incorporates intricate oil grooves or channels on the thrust faces to ensure a consistent supply of pressurized oil, forming a hydrodynamic film that separates the moving surfaces and minimizes wear. It's worth noting that the specific location and design can vary significantly between different engine manufacturers and models, but the core principle remains the same: provide a sacrificial, low-friction surface to absorb axial forces and precisely locate the crankshaft within the block.
The Critical Function: Controlling Crankshaft Axial Play
The primary, and indeed critical, function of the crankshaft thrust bearing is the meticulous control of crankshaft axial play, often referred to as end float or end play. Imagine the crankshaft spinning at thousands of revolutions per minute; even minute uncontrolled movement along its axis could have disastrous consequences. Why is this control so vital? Firstly, excessive axial movement allows the crankshaft, and subsequently the connecting rods attached to it, to shift forwards and backwards within the engine block. This can lead to the connecting rods striking the cylinder block walls or interfering with the piston skirts, causing severe damage. Secondly, precise crankshaft positioning is essential for the proper operation of timing components, whether they be timing belts, chains, or gears. Uncontrolled axial movement can affect timing accuracy, leading to poor engine performance, increased emissions, or even valve-to-piston contact in interference engine designs. Thirdly, and perhaps most commonly associated with thrust bearing issues, is the interaction with the transmission. In manual transmission vehicles, depressing the clutch pedal exerts a significant forward force on the crankshaft. In automatics, the torque converter generates hydraulic pressure that pushes the crankshaft forward. The thrust bearing absorbs these forces, preventing the crankshaft from being pushed excessively in one direction. Without this control, components like the clutch release bearing, pilot bearing, or torque converter hub could be damaged, and crankshaft position sensor readings (critical for engine management) might become unreliable. Essentially, the thrust bearing ensures the crankshaft stays exactly where it's supposed to be, maintaining the delicate spatial relationships between numerous critical engine components.
Exploring Different Thrust Bearing Designs and Materials
Interestingly enough, crankshaft thrust bearings aren't a one-size-fits-all component; their design varies to suit specific engine architectures and load requirements. One common configuration is the integrated thrust bearing, where thrust flanges are incorporated directly onto the upper and lower shells of a specific main bearing, usually the center one. This design simplifies assembly and ensures precise alignment. Another approach utilizes separate thrust washers, which are typically semi-circular or sometimes full-circle inserts placed on either side of a main bearing journal and cap. These washers engage with machined thrust faces on the crankshaft. This design offers some flexibility in material selection and replacement. Multi-piece designs combining elements of both are also encountered. The materials used are crucial for longevity and performance. Most thrust bearings feature a layered construction:
- A strong steel backing provides structural rigidity and support.
- An intermediate layer, often a copper-lead alloy, offers good load-carrying capacity and fatigue resistance.
- A softer overlay, frequently a babbitt material (tin or lead-based alloy) or an aluminum-tin alloy, provides excellent surface properties like conformability and embeddability, allowing the bearing to tolerate minor misalignments and trap small contaminant particles, preventing crankshaft damage.
Understanding the Origins and Nature of Axial Loads
To truly appreciate the thrust bearing's role, it's essential to understand where the axial loads it manages actually come from. These forces can be quite significant and originate from several sources within the powertrain. Perhaps the most widely recognized source, particularly in vehicles with manual transmissions, is the operation of the clutch. When the driver depresses the clutch pedal, the linkage activates the release bearing (throw-out bearing), which pushes against the pressure plate diaphragm spring. This action exerts a substantial force directly onto the crankshaft, pushing it forward towards the front of the engine. This load is present every time the clutch is disengaged. In vehicles equipped with automatic transmissions, a primary source of axial thrust comes from the torque converter. Hydraulic pressure generated within the converter, especially during stall conditions or acceleration, tends to push the converter, and consequently the crankshaft it's bolted to, forward. This hydraulic force can be surprisingly high. Another contributor, particularly in engines utilizing helical-cut gears for timing (camshaft drive) or oil pump drives, is the inherent axial thrust generated by the meshing of angled gear teeth. As these gears transmit torque, they naturally create a sideways force component along the axis of the shafts they are mounted on. While often less dramatic than clutch or converter forces, this load is persistent during engine operation. Even certain accessory drives, if employing helical gears or subject to specific belt tensions, can contribute minor axial forces. Have you ever considered the cumulative effect of these varied forces acting on the crankshaft throughout a typical drive cycle? The thrust bearing must constantly counteract these pushes and pulls to maintain stability.
The Indispensable Role of Lubrication for Thrust Bearing Survival
Like almost all bearing surfaces within an engine, the crankshaft thrust bearing relies heavily on a consistent and clean supply of lubricating oil for its survival and proper function. Its operation hinges on the principle of hydrodynamic lubrication, where a pressurized wedge of oil is formed between the moving crankshaft thrust face and the stationary bearing surface. This oil film physically separates the metal surfaces, preventing direct contact, drastically reducing friction, and carrying away heat generated during operation. Oil is typically supplied through strategically drilled passages originating from the main bearing oil gallery that feeds the associated main bearing journal. These passages direct oil flow specifically to the thrust faces. However, lubricating the vertical thrust faces presents unique challenges compared to the rotating main journals. Gravity doesn't assist distribution in the same way, and the relative motion is primarily sliding rather than purely rotational, making the establishment and maintenance of a robust oil film slightly more complex. This is why the design of oil grooves on the thrust bearing face is so critical – they act as channels to distribute the incoming oil effectively across the entire load-bearing surface, ensuring no area becomes starved of lubrication. The viscosity and cleanliness of the engine oil are paramount. Oil that is too thin (low viscosity) may not provide a sufficiently strong film under high loads or temperatures, while oil that is too thick (high viscosity) might impede flow, especially during cold starts. Contaminants like dirt, metal particles, or coolant can disrupt the oil film, causing abrasive wear and scoring on the delicate bearing surfaces. In my experience, many thrust bearing failures can be traced back to lubrication system issues, emphasizing the importance of regular oil changes with the correct grade and quality of oil.
Recognizing the Warning Signs: Symptoms of Thrust Bearing Failure
Detecting a failing crankshaft thrust bearing early can save an engine from catastrophic damage. Fortunately, there are several warning signs and symptoms that can indicate a problem. The most definitive indicator is excessive crankshaft end play. This is measured by mechanics using a dial indicator mounted securely to the engine block, with the indicator's plunger resting against the crankshaft nose or flywheel flange. By carefully prying the crankshaft fully forward and then fully rearward, the total axial movement can be measured. If this measurement exceeds the manufacturer's specifications (typically found in the vehicle's service manual), it strongly suggests wear on the thrust bearing surfaces. Audible symptoms can also arise. A worn thrust bearing might produce a distinct knocking or thumping sound, often most noticeable when the axial load changes – for instance, when the clutch pedal is depressed or released in a manual transmission vehicle, or during acceleration/deceleration cycles in an automatic. This noise results from the crankshaft physically moving back and forth and making contact due to the excessive clearance. In vehicles with manual transmissions, drivers might notice issues with clutch operation, such as difficulty engaging or disengaging gears, or changes in the clutch pedal feel, potentially related to the altered crankshaft position. In severe cases, if the bearing wears significantly or fails completely, the crankshaft can shift enough to cause interference between rotating and stationary components, leading to catastrophic engine failure – think damaged connecting rods, a scored crankshaft, or even a cracked engine block. Have you ever encountered an engine noise that seemed directly linked to clutch pedal movement? That could very well have been a thrust bearing crying out for attention.
Investigating the Root Causes of Thrust Bearing Failure
When a thrust bearing fails, simply replacing it isn't enough; understanding the underlying cause is crucial to prevent a repeat failure. Several factors can contribute to premature wear or catastrophic failure of this critical component. As previously mentioned, lubrication problems are a major culprit. This includes oil starvation (due to low oil level, blocked passages, or oil pump issues), oil contamination (dirt, debris, coolant leaks), or using the wrong type or viscosity of engine oil, which fails to provide adequate film strength. Another significant contributor is excessive axial load. In manual transmission vehicles, this can stem from issues like a faulty or overly stiff aftermarket pressure plate, binding clutch linkage, or even improper driving habits like "riding the clutch" (keeping the pedal partially depressed unnecessarily). For automatics, problems like torque converter "ballooning" (where internal pressure causes the converter housing to deform and push excessively on the crankshaft) or issues with the transmission's internal hydraulic pressure regulation can overload the thrust bearing. Installation errors during an engine rebuild are also surprisingly common causes. Failing to ensure the bearing shells or washers are correctly oriented (oil grooves must face the moving crankshaft surface), not cleaning components thoroughly before assembly, applying incorrect torque to the main bearing caps, or, critically, neglecting to measure the crankshaft end play after installation can all lead to rapid failure. Furthermore, significant engine modifications that increase power output can sometimes subject the stock thrust bearing to loads exceeding its design capacity. While less frequent, inherent manufacturing defects in the bearing itself can occasionally be the root cause. Identifying which of these factors led to the failure is key for a lasting repair.
Best Practices for Thrust Bearing Installation and Measurement
Proper installation and verification are non-negotiable steps when dealing with crankshaft thrust bearings during an engine build or repair. Precision and cleanliness are paramount. Before installation, all components – the crankshaft thrust faces, the engine block main bearing saddles, and the main caps – must be meticulously cleaned to remove any oil, debris, or old bearing material. The new thrust bearing shells or washers should be carefully inspected for any damage incurred during shipping or handling. Correct orientation is critical; typically, any oil grooves or specific patterns must face the moving surface of the crankshaft's thrust cheek to ensure proper lubrication delivery. The bearing shells should be gently pressed into their respective locations in the block and main cap, ensuring they are fully seated. Applying assembly lube generously to the bearing surfaces and the crankshaft journals/thrust faces is essential for initial startup protection before oil pressure builds. Once the crankshaft is laid in place and the main caps are installed, the cap bolts must be tightened progressively in the manufacturer-specified sequence and to the correct torque values using a calibrated torque wrench. This ensures the bearing clearance is set correctly and the cap isn't distorted. Perhaps the most crucial step, often overlooked by less experienced technicians, is measuring the crankshaft end play *after* the main caps are fully torqued. This is done using a dial indicator setup as described earlier. The measured value must fall within the specific range provided by the engine manufacturer (e.g., 0.004" - 0.008"). Too little end play can cause binding and rapid wear due to insufficient oil film space, while too much indicates excessive wear or incorrect parts. Using high-quality, dimensionally accurate replacement bearings, like those offered by our company, significantly simplifies achieving the correct end play and ensures reliable performance.
The Undeniable Importance of Quality Replacement Thrust Bearings
Given the critical function and the demanding environment in which crankshaft thrust bearings operate, the quality of replacement parts cannot be overstated. Opting for cheap, low-quality bearings is, frankly speaking, a recipe for disaster and false economy. Inferior materials may lack the necessary fatigue strength, wear resistance, or embeddability, leading to premature failure even under normal operating conditions. Poor manufacturing tolerances can result in incorrect clearances right from the start – either too tight, causing binding and overheating, or too loose, leading to excessive end play and the associated risks of component interference and noise. Surface finishes might be inadequate, hindering the formation of a stable hydrodynamic oil film, or oil grooves might be improperly machined, impeding lubrication flow. In contrast, high-quality thrust bearings, such as those developed and manufactured by our company, are engineered to meet or exceed stringent OEM specifications. We utilize premium materials, advanced bonding techniques, and precision manufacturing processes to ensure exceptional durability, correct dimensional accuracy, and optimal surface characteristics. This meticulous attention to detail translates directly into reliable performance, extended service life, and peace of mind. Investing in quality bearings helps mitigate the risks associated with lubrication challenges, high axial loads, and installation variables, ultimately protecting the significant investment represented by the engine itself. When tackling an engine rebuild or repair involving the crankshaft, choosing top-tier bearings is one of the smartest decisions one can make for long-term reliability and preventing the types of failures discussed earlier.
Concluding Thoughts on Thrust Bearing Significance
In conclusion, while it may be a relatively small and often hidden component, the crankshaft thrust bearing plays an undeniably vital role in the health, longevity, and proper operation of any internal combustion engine. Its core function – the precise control of crankshaft axial movement – is fundamental to preventing damaging contact between internal components, ensuring accurate timing, and managing forces generated by the clutch or torque converter. We've explored its typical designs, the critical nature of lubrication, the various sources of axial load it must withstand, and the tell-tale signs of impending failure. Understanding the potential causes of failure, from lubrication issues to installation errors and excessive loads, highlights the importance of careful diagnosis and preventative maintenance. Emphasizing best practices during installation, particularly the verification of end play, and choosing high-quality replacement components are key takeaways for ensuring a reliable and lasting repair. Ultimately, a deeper appreciation for Understanding Crankshaft Thrust Bearings and Their Function equips technicians and enthusiasts alike with the knowledge to better diagnose issues, perform repairs correctly, and recognize the significance of this essential engine component. It’s a testament to how even seemingly minor parts contribute massively to the complex symphony of mechanical motion within an engine.
