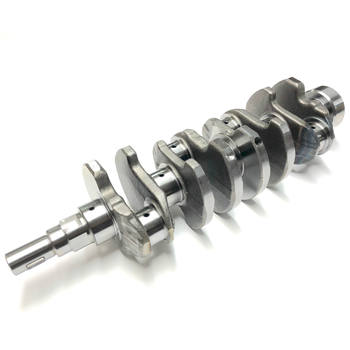

Have you ever truly considered the mechanical marvel humming away under the hood of your vehicle? At the very core of nearly every internal combustion engine lies a component of immense importance, yet often overlooked: the crankshaft. It's the backbone of the engine's rotating assembly, the master translator converting the explosive, linear force of pistons into the smooth, rotational power needed to turn the wheels. Frankly speaking, without a properly functioning crankshaft, an engine simply cannot operate. It's a highly stressed, precision-engineered piece of metal subjected to incredible forces cycle after cycle. Understanding the fundamental crankshaft function is key to appreciating engine design, performance, and maintenance. It’s not just a lump of metal; it’s the conductor of the engine's mechanical orchestra, ensuring every movement is powerful and synchronized. Its design intricacies, from material selection to balancing, directly impact engine longevity, smoothness, and overall efficiency. Think of it as the bridge between combustion energy and usable torque.
Converting Power: The Reciprocating to Rotational Magic
The primary and most crucial role of the crankshaft is transforming the up-and-down (reciprocating) motion of the pistons into rotational motion. This conversion is the heart of how an internal combustion engine generates power that can be used to drive a vehicle or other machinery. Here's how it works: Combustion pressure forces the piston down within the cylinder. This piston is attached to a connecting rod, which, in turn, is attached to an offset section of the crankshaft known as a crankpin or rod journal. As the piston moves down, it pushes the connecting rod, causing the crankpin to move in a circular path around the crankshaft's central axis. This action effectively spins the crankshaft. Conversely, as the crankshaft rotates, it pulls the connecting rod and piston back up the cylinder, completing the cycle. This continuous conversion process happens thousands of times per minute, demanding incredible precision and strength from the crankshaft and its associated components. It's a beautifully simple concept, yet the engineering required to make it reliable under extreme conditions is quite sophisticated. The geometry of the crank throws (the offset distance of the crankpins from the main axis) determines the engine's stroke, directly influencing displacement and torque characteristics.
Connecting Rods and Journals: The Critical Links
Delving deeper into the connection points reveals the importance of journals. The crankshaft features two main types of journals: main journals and rod journals (crankpins). The main journals form the central axis around which the crankshaft rotates. They sit within main bearings housed in the engine block, supporting the crankshaft and allowing it to spin freely with minimal friction. These bearings are typically plain bearings, relying on a thin film of pressurized oil for lubrication – a concept we'll explore later. The rod journals, as mentioned, are offset from the main journals. These are the points where the "big end" of the connecting rods attach. Each connecting rod links a piston to a specific rod journal. The distance of this offset, known as the throw, dictates the length of the piston's stroke. The precise machining and surface finish of both main and rod journals are absolutely critical for engine life. Any imperfections or excessive wear can lead to catastrophic bearing failure. It's worth noting that the arrangement of these journals and the angles between throws (in multi-cylinder engines) are carefully designed to ensure proper firing order and engine balance.
Built to Endure: Crankshaft Materials and Manufacturing
Given the immense stresses – bending, torsional, and shear forces – that a crankshaft endures, its material composition and manufacturing process are paramount. You can't just make a crankshaft out of any old metal; it needs exceptional strength, fatigue resistance, and durability. The most common materials are forged steel and cast iron (specifically nodular or ductile iron). Forged steel crankshafts are generally considered stronger and more durable, making them the preferred choice for high-performance and heavy-duty applications like diesel engines or racing engines. The forging process involves heating a steel billet and shaping it using powerful hydraulic presses or hammers. This aligns the metal's grain structure, resulting in superior strength and resistance to cracking. Cast iron crankshafts, while typically less expensive to produce, are often used in standard passenger car engines where the stress levels are lower. Casting involves pouring molten iron into a mold shaped like the crankshaft. Modern casting techniques, especially with ductile iron, produce crankshafts with good strength and damping characteristics. After the initial shaping (forging or casting), extensive machining is required to achieve the precise dimensions for the journals, counterweights, snout, and flange. This includes grinding and polishing the journal surfaces to an extremely smooth finish to ensure proper bearing function and longevity. The choice between forged and cast often comes down to a balance of performance requirements and cost.
The Balancing Act: Counterweights and Engine Smoothness
Imagine a spinning object with uneven weight distribution – it would wobble violently. The same principle applies inside an engine. As the pistons and connecting rods move up and down and rotate around the crankpins, they create significant inertial forces and vibrations. To counteract these forces and ensure smooth engine operation, crankshafts incorporate counterweights. These are carefully calculated masses located opposite the rod journals (crankpins). Their purpose is to offset the mass of the piston and connecting rod assembly associated with that particular crank throw. By balancing these rotating and reciprocating masses, counterweights minimize engine vibration, reduce stress on the main bearings, and contribute to overall engine refinement and longevity. Without effective counterbalancing, an engine would shake uncontrollably, leading to poor performance, increased wear, driver discomfort, and potentially catastrophic failure. Balancing can be internal (where the counterweights on the crank handle all balancing) or external (where additional weight is added to the flywheel/flexplate and harmonic balancer at the ends of the crank). The specific design and placement of counterweights depend heavily on the engine configuration (inline-4, V6, V8, etc.) and the mass of the pistons and rods. Achieving perfect balance is a complex engineering challenge, critical for a smooth-running powertrain.
Why Engine Vibration is the Enemy
So, why is minimizing vibration through effective counterweighting so incredibly important? It's not just about driver comfort, although a smooth engine certainly makes for a more pleasant driving experience. Excessive engine vibration transmits unwanted forces throughout the entire vehicle structure. This constant shaking can lead to premature wear and tear on numerous components, from engine mounts to exhaust systems and even interior trim pieces developing rattles. More critically, within the engine itself, vibration puts immense stress on bearings, the crankshaft itself, and the engine block. This accelerates wear, increases the risk of fatigue failure (cracks developing over time), and can compromise the integrity of seals and gaskets, potentially leading to leaks. High levels of vibration can also negatively impact combustion efficiency and power delivery. Furthermore, torsional vibration – a twisting and untwisting of the crankshaft along its length due to the periodic firing impulses – requires specific damping, often handled by a harmonic balancer mounted on the crankshaft snout. Uncontrolled torsional vibration can lead to crankshaft breakage. In my experience, chasing down vibration issues often leads back to imbalances in the rotating assembly, highlighting the foundational importance of well-designed counterweights and proper overall engine balance.
The Lifeline: Crankshaft Lubrication System Work
Metal-on-metal contact at the speeds and loads experienced by crankshaft journals would lead to immediate seizure and catastrophic failure. Therefore, a constant supply of clean, pressurized oil is absolutely essential – it's the lifeblood of the crankshaft assembly. Understanding how the crankshaft lubrication system works is critical. The engine's oil pump sends pressurized oil through galleries (passages) in the engine block to the main bearings. These bearings have grooves and holes that align with corresponding holes drilled into the crankshaft's main journals. Oil flows through these holes into passages drilled diagonally through the crankshaft webs, leading to the rod journals. This ensures that both the main bearings (supporting the crankshaft) and the rod bearings (connecting the rods to the crank) receive a continuous supply of pressurized oil. This oil creates a hydrodynamic film – a thin, high-pressure wedge of oil – that separates the journal surface from the bearing surface, preventing direct contact and minimizing friction and wear. It also plays a crucial role in cooling these critical components, carrying away heat generated by friction and combustion. Any interruption to this oil supply, whether due to low oil level, a failing oil pump, blocked passages, or incorrect oil viscosity, can quickly destroy the bearings and render the engine inoperable. Regular oil changes with the correct type of oil are paramount for maintaining this vital lubrication.
Beyond the Basics: Other Key Crankshaft Features
While the journals, throws, and counterweights are central to the crankshaft's primary function, several other features are essential for its integration into the complete engine system. At the front of the engine, the crankshaft typically extends slightly, forming the crankshaft snout. This area provides mounting surfaces for crucial components like the crankshaft timing gear or sprocket (which drives the camshaft), the oil pump drive (in some designs), accessory drive pulleys (for alternator, power steering pump, A/C compressor), and, very importantly, the harmonic balancer (also known as a vibration damper). The harmonic balancer, often mistaken for a simple pulley, is specifically designed to absorb and counteract harmful torsional vibrations inherent in the crankshaft's operation. At the opposite end, the rear of the crankshaft features a flange. This robust, flat surface provides a mounting point for the engine's flywheel (in manual transmission vehicles) or flexplate (in automatic transmission vehicles). The flywheel stores rotational energy, smooths out power pulses, and provides the friction surface for the clutch, while the flexplate connects the engine to the torque converter. Internally, as previously touched upon, intricate oil passages are drilled throughout the crankshaft to ensure lubrication reaches all main and rod bearings. The precise design and integration of these features are vital for the engine's overall functionality and reliability.
The Symphony of Motion: Timing and Power Transmission
The crankshaft doesn't just rotate; it acts as the prime mover for other critical engine systems, ensuring everything operates in perfect synchrony. One of its most important secondary roles is driving the camshaft(s). Through a connection via a timing chain, timing belt, or sometimes gears, the rotating crankshaft turns the camshaft. The camshaft, with its precisely shaped lobes, controls the opening and closing of the engine's intake and exhaust valves. The relationship between crankshaft and camshaft is fixed and absolutely critical; typically, the camshaft rotates at exactly half the speed of the crankshaft in a four-stroke engine. This precise timing ensures that valves open and close at the correct points in the piston's stroke for efficient combustion and exhaust scavenging. Any deviation in this timing (e.g., a stretched timing chain or slipped belt) can severely impact performance, cause rough running, or even lead to catastrophic engine damage if valves collide with pistons. Furthermore, the crankshaft often drives the engine's oil pump, either directly off the snout or via an intermediate gear. This guarantees that oil pressure is generated as soon as the engine starts turning. Thus, the crankshaft acts as the central power distributor for the engine's essential mechanical subsystems, orchestrating their movements in a tightly coordinated dance.
When Things Go Wrong: Common Crankshaft Issues
Despite being robustly designed, crankshafts are not immune to problems, particularly under harsh conditions or due to poor maintenance. One of the most common failures related to the crankshaft involves the bearings. Lack of lubrication, oil contamination (with dirt, metal particles, or coolant), engine overheating, or excessive loads can cause main or rod bearings to wear rapidly or seize, often damaging the corresponding journal surfaces on the crankshaft. Repairing journal damage typically requires removing the crankshaft and regrinding the journals to an undersize dimension, then fitting appropriate undersize bearings – a costly procedure. Another potential issue is the development of cracks, often initiated by stress risers (sharp corners, machining marks) or caused by severe detonation, excessive RPMs, or improper balancing. Cracks can eventually lead to complete crankshaft fracture, which is catastrophic engine failure. Bending or twisting of the crankshaft can also occur due to extreme events like hydraulic lock (liquid entering a cylinder) or severe detonation. Finally, issues with the snout keyway (where the harmonic balancer mounts) or the rear flange seal can lead to oil leaks or balancer/flywheel mounting problems. Recognizing symptoms like knocking sounds (indicative of bearing failure), excessive vibration, or unexplained oil leaks is crucial for addressing potential crankshaft-related issues before they escalate. Have you ever encountered strange noises from your engine bay?
Ensuring Reliability: The Role of Quality Components
It should be abundantly clear by now that the crankshaft is far more than just a rotating shaft; it's a highly stressed, precision component central to engine operation, longevity, and performance. The demands placed upon it – converting immense combustion forces into smooth rotation, enduring constant stress cycles, maintaining precise dimensions for bearing operation, and driving other critical systems – mean that quality is non-negotiable. This is where the importance of using high-quality materials and adhering to stringent manufacturing processes comes into play. At our company, we understand the critical nature of the crankshaft function. We focus on providing components engineered for durability and precision. Whether it's ensuring the correct material properties through meticulous forging or casting, achieving exacting tolerances during machining and grinding, or implementing rigorous quality control checks, the goal is always to deliver a crankshaft that meets or exceeds OEM specifications. Using subpar components can lead to premature failures, costly repairs, and significant downtime. Investing in quality engine internals, especially foundational parts like the crankshaft, provides peace of mind and ensures the engine can perform reliably under demanding conditions for years to come. It's the bedrock upon which dependable engine performance is built.
Conclusion: Appreciating the Engine's Backbone
In summary, the crankshaft function is multifaceted and absolutely essential for any internal combustion engine. It masterfully converts the linear power of the pistons into the rotational force that ultimately drives the vehicle. It supports the connecting rods, provides pathways for critical lubrication, counteracts inherent vibrations for smooth operation, and synchronizes the motion of other vital engine components like the camshaft and oil pump. From the choice of materials like forged steel or cast iron to the precision grinding of journals and the careful calculation of counterweights, every aspect of crankshaft design and manufacturing is geared towards strength, durability, and efficiency. Understanding its role helps appreciate the complexity and ingenuity of engine design. Neglecting its health through poor maintenance, especially lubrication, can have dire consequences. What steps can you take today to ensure your engine's rotating assembly stays healthy? Perhaps learning more about oil types or recognizing the early signs of bearing wear could be beneficial next steps. Maintaining this core component is key to long-term engine reliability.
