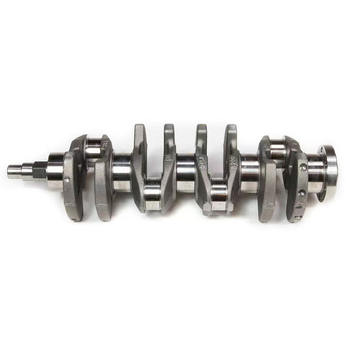

The crankshaft, often hailed as the backbone of any reciprocating engine, plays a pivotal role in converting linear piston motion into rotational force, the very essence of power generation in countless machines, from automobiles to massive industrial engines. Its robust design and seemingly simple function belie a component subjected to immense stresses – bending, torsional, and shear forces – operating in a harsh environment of high temperatures and pressures. Given these demanding conditions, crankshaft failure, while undesirable, is a reality that engineers and maintenance professionals must confront. However, each instance of failure, rather than being viewed as a setback, should be approached as a valuable learning opportunity. By meticulously analyzing crankshaft failures, we can uncover critical insights into design flaws, material weaknesses, manufacturing imperfections, or operational oversights. This proactive approach, centered on learning from mistakes, is not just about fixing the immediate problem; it’s about enhancing future designs, improving maintenance protocols, and ultimately, bolstering the reliability and longevity of engines across various applications. The process of crankshaft failure analysis is thus a cornerstone of continuous improvement in mechanical engineering, allowing us to transform setbacks into stepping stones towards greater engineering excellence.
Understanding the Multifaceted Nature of Crankshaft Failures
Crankshaft failures are rarely monolithic events with singular, easily identifiable causes. Instead, they typically arise from a complex interplay of factors, often accumulating over time until culminating in catastrophic breakage or malfunction. To effectively analyze these failures, it’s crucial to appreciate the multifaceted nature of potential culprits. Material fatigue, perhaps the most prevalent cause, stems from the cyclic loading that crankshafts endure with every engine revolution. These repeated stress cycles, even if seemingly minor, can initiate microscopic cracks that propagate over time, eventually weakening the structure to the point of failure. Beyond fatigue, torsional vibration, a phenomenon where the crankshaft twists and untwists along its axis, can induce high stresses, particularly at resonant frequencies. Insufficient lubrication, leading to metal-to-metal contact and excessive friction, can generate localized hotspots and accelerate wear, predisposing the crankshaft to seizing or fatigue cracking. Manufacturing defects, such as inclusions, porosity, or improper heat treatment, can introduce inherent weaknesses within the material, making it more susceptible to failure under operational stresses. Finally, operational factors, including overloading, sudden stops, and inadequate maintenance, can exacerbate existing vulnerabilities or introduce new stress concentrations, significantly increasing the risk of crankshaft failure. A comprehensive failure analysis must therefore consider all these potential contributing factors, piecing together the puzzle to pinpoint the root cause or, more often, the confluence of causes that led to the component's demise.
Delving into Common Crankshaft Failure Modes
To effectively conduct a crankshaft failure analysis, it's essential to be familiar with the common failure modes that these critical components typically exhibit. Fatigue failure, as mentioned earlier, is a primary concern. It often manifests as cracks initiating at stress concentration points, such as fillets, keyways, or oil holes, and propagating across the section. These fatigue cracks can be identified by their characteristic smooth, beach-mark like fracture surfaces. Torsional fatigue, a specific type of fatigue failure, is induced by twisting stresses and can lead to spiral fractures along the crankshaft length. Bending fatigue, on the other hand, results from bending moments and often causes fractures perpendicular to the crankshaft axis. Wear, another significant failure mode, can occur in bearing journals due to inadequate lubrication or contamination. Excessive wear reduces bearing clearances, leading to increased vibrations and potential seizure. Fracture due to overload, while less common in properly designed and operated engines, can occur if the crankshaft is subjected to stresses exceeding its ultimate tensile strength. Such fractures are typically characterized by a rough, irregular fracture surface, often with evidence of plastic deformation. Corrosion, especially in marine or humid environments, can weaken the crankshaft material and initiate cracks. Fretting corrosion, occurring at contacting surfaces under vibration, can also be a localized source of damage. Understanding these distinct failure modes allows analysts to narrow down the potential causes and focus their investigation on the most relevant factors, ultimately leading to a more accurate and insightful failure analysis.
The Arsenal of Failure Analysis Techniques
Crankshaft failure analysis is not a guessing game; it's a methodical, scientific process that employs a range of sophisticated techniques to dissect the failed component and uncover the underlying causes of its demise. These techniques can be broadly categorized into non-destructive and destructive methods. Non-destructive testing (NDT) methods are employed initially to assess the crankshaft without causing further damage. Visual inspection, often the first step, can reveal macroscopic features like fracture surfaces, cracks, wear patterns, and corrosion. Dye penetrant testing can detect surface cracks that may not be visible to the naked eye. Magnetic particle inspection is effective for identifying surface and near-surface cracks in ferromagnetic materials. Ultrasonic testing can detect internal flaws and discontinuities. Radiographic testing, using X-rays or gamma rays, can reveal internal defects and material density variations. Destructive testing, performed after NDT, involves sectioning and further examination of the crankshaft. Fractography, the detailed analysis of fracture surfaces using microscopy (optical and scanning electron microscopy), provides crucial information about the fracture mode, crack initiation site, and crack propagation direction. Metallography involves preparing and examining polished and etched cross-sections of the crankshaft material to assess its microstructure, grain size, and presence of any defects or anomalies. Chemical analysis determines the material composition and verifies if it conforms to specifications. Mechanical testing, such as tensile testing, hardness testing, and fatigue testing, evaluates the material's mechanical properties and compares them to design requirements. By strategically combining these techniques, failure analysts can build a comprehensive picture of the failure event, identifying the root cause and paving the way for effective corrective actions.
Case Studies: Lessons Learned from Real-World Crankshaft Failures
While theoretical knowledge of failure modes and analysis techniques is crucial, nothing quite solidifies understanding like examining real-world case studies of crankshaft failures. Consider, for instance, a scenario involving a large diesel engine crankshaft that failed prematurely in a power generation plant. Initial visual inspection revealed a fatigue fracture originating from a fillet radius at a main bearing journal. Further investigation, including fractography and metallography, uncovered that the fillet radius was smaller than specified in the design drawings, leading to a higher stress concentration in that area. Additionally, material testing revealed that the crankshaft material, while conforming to specifications in terms of chemical composition, exhibited slightly lower fatigue strength than expected. The combination of a sharper fillet radius and marginally lower fatigue strength, coupled with the engine's demanding operational cycle, resulted in fatigue crack initiation and propagation, ultimately leading to failure. Corrective actions included revising the design drawings to specify a larger fillet radius, implementing stricter quality control measures during manufacturing to ensure dimensional accuracy, and potentially exploring alternative crankshaft materials with enhanced fatigue resistance for future engines. Another case involved a crankshaft failure in an automotive engine, where analysis revealed evidence of severe wear on the main bearing journals. Lubrication analysis indicated oil contamination with abrasive particles, suggesting inadequate oil filtration or infrequent oil changes. The wear led to increased bearing clearances, vibrations, and ultimately, fatigue cracking in the crankshaft. In this case, the lesson learned was the critical importance of proper lubrication and maintenance practices in preventing premature crankshaft failures. These examples underscore the invaluable insights gained from analyzing past failures, guiding improvements in design, manufacturing, and operational procedures to enhance engine reliability and prevent future occurrences.
Preventative Measures: Proactive Strategies for Crankshaft Longevity
Crankshaft failure analysis, while crucial for understanding past mistakes, should ultimately serve as a catalyst for implementing proactive preventative measures to avoid future failures. Prevention starts at the design stage. Robust crankshaft design, incorporating generous fillet radii, optimized oil hole placement, and careful consideration of stress concentrations, is paramount. Finite element analysis (FEA) can be a powerful tool to simulate operating stresses and identify potential weak points in the design, allowing for design optimization before physical prototypes are even manufactured. Material selection plays a critical role. Choosing crankshaft materials with high fatigue strength, wear resistance, and adequate toughness for the intended application is essential. Proper heat treatment processes are crucial to achieve the desired material properties and minimize residual stresses. Manufacturing processes must be tightly controlled to ensure dimensional accuracy, surface finish, and freedom from defects like inclusions or porosity. Rigorous quality control inspections throughout the manufacturing process, including non-destructive testing, are vital to detect and eliminate any manufacturing flaws. During engine assembly, proper bearing clearances, alignment, and tightening torques must be meticulously adhered to. Effective lubrication is the lifeblood of a crankshaft. Ensuring adequate oil supply, proper oil filtration, and regular oil changes with high-quality lubricants is non-negotiable. Regular maintenance, including vibration monitoring, oil analysis, and periodic inspections, can detect early signs of wear or distress, allowing for timely intervention before a catastrophic failure occurs. Operating engines within their design limits and avoiding overloading or sudden stops also contributes significantly to crankshaft longevity. By implementing these preventative measures across the entire lifecycle of an engine, from design to operation and maintenance, we can significantly reduce the risk of crankshaft failures and ensure reliable and durable engine performance.
The Indispensable Role of Expert Failure Analysis
While in-house maintenance teams often possess valuable experience in troubleshooting engine issues, crankshaft failure analysis frequently demands a level of specialized expertise and sophisticated equipment that may not be readily available internally. This is where the role of expert failure analysis services becomes indispensable. Professional failure analysis laboratories are equipped with state-of-the-art facilities and staffed by experienced engineers and metallurgists who specialize in diagnosing mechanical failures. They possess in-depth knowledge of various failure modes, analysis techniques, and material properties. Expert analysts can conduct a comprehensive investigation, utilizing a wide array of NDT and destructive testing methods, to pinpoint the root cause of crankshaft failure with a high degree of accuracy. Their expertise extends beyond simply identifying the failure mode; they can also delve into the contributing factors, such as design deficiencies, manufacturing flaws, material issues, or operational errors. Furthermore, expert failure analysis reports provide not only a diagnosis but also actionable recommendations for corrective actions and preventative measures. These recommendations can range from design modifications and material changes to improved manufacturing processes and enhanced maintenance protocols. Engaging expert failure analysis services offers several key advantages. It ensures an objective and unbiased assessment of the failure, free from internal biases or preconceived notions. It provides access to specialized knowledge and equipment that may not be available in-house. It delivers a comprehensive and scientifically sound analysis, leading to more effective and targeted corrective actions. Ultimately, investing in expert crankshaft failure analysis is a strategic decision that can save significant costs in the long run by preventing future failures, improving engine reliability, and enhancing overall operational efficiency. It's a testament to the adage that learning from mistakes, especially with the guidance of experts, is the surest path to progress and improvement.
Turning Setbacks into Stepping Stones: Embracing a Culture of Learning
Crankshaft failure, while undoubtedly disruptive and costly, should not be perceived solely as a negative event. Instead, it presents a valuable opportunity for learning and improvement. Embracing a culture of learning from mistakes is crucial for organizations that rely on rotating machinery. This culture begins with viewing every failure as a potential source of knowledge, rather than simply a problem to be fixed and forgotten. It involves a commitment to thorough and systematic failure analysis, not just to identify the immediate cause, but to understand the chain of events and contributing factors that led to the failure. It requires open communication and information sharing, ensuring that the lessons learned from one failure are disseminated across the organization and applied to prevent similar incidents in the future. This learning culture extends beyond individual failures to encompass a proactive approach to risk management and continuous improvement. It involves regular reviews of maintenance practices, design procedures, and manufacturing processes to identify potential weaknesses and areas for enhancement. It encourages a questioning attitude, challenging assumptions and seeking better ways of doing things. It fosters a collaborative environment where engineers, maintenance personnel, and operators work together to understand and address potential failure risks. By embracing a culture of learning from mistakes, organizations can transform setbacks into stepping stones, continuously improving their engineering practices, enhancing equipment reliability, and achieving greater operational excellence. Crankshaft failure analysis, in this context, becomes not just a reactive problem-solving tool, but a proactive driver of continuous improvement and a cornerstone of a robust and resilient engineering organization.
Our company understands the critical importance of reliable engine performance and the significant impact that crankshaft failures can have on operations. We offer a comprehensive suite of services designed to support our clients in preventing and analyzing crankshaft failures. Our expert team provides advanced failure analysis services, utilizing state-of-the-art techniques to accurately diagnose failure modes and identify root causes. We also offer proactive preventative maintenance solutions, including vibration monitoring, oil analysis, and condition-based maintenance programs, to detect early warning signs and prevent failures before they occur. Furthermore, our engineering consultants can assist in design reviews and material selection to ensure robust and reliable crankshaft performance from the outset. By partnering with us, you gain access to the expertise and resources needed to minimize the risk of crankshaft failures, optimize engine reliability, and learn valuable lessons from any incidents that may occur, turning potential setbacks into opportunities for continuous improvement and operational excellence.
