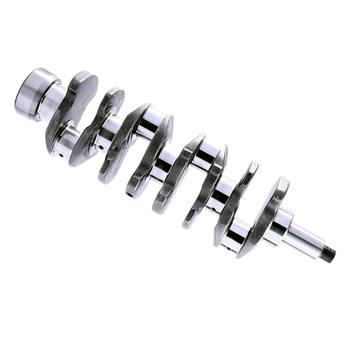

The crankshaft, the backbone of any reciprocating engine, is responsible for converting linear piston motion into rotational power. Its robust design and precise manufacturing are paramount for engine performance, reliability, and longevity. Two primary manufacturing processes dominate crankshaft production: forging and casting. Each method offers distinct advantages and disadvantages, impacting the final component's material properties, structural integrity, and cost-effectiveness. Understanding the nuances of forging versus casting is crucial for engineers, manufacturers, and anyone involved in the automotive, aerospace, or power generation industries. This article will delve into a comprehensive comparison of these two vital manufacturing techniques, shedding light on their processes, applications, and the critical factors influencing process selection.
Understanding Crankshaft Forging
Forging is a manufacturing process where metal is shaped by compressive forces. In crankshaft forging, a heated billet of steel or alloy is subjected to intense pressure, typically using hammers or presses, within specially designed dies. This process aligns the metal's grain structure, creating a continuous flow that follows the crankshaft's contours. This grain flow is a critical advantage of forging, significantly enhancing the crankshaft's strength and fatigue resistance. Imagine kneading dough – the continuous working of the material strengthens its internal structure. Forging essentially does the same for metal at a much larger scale and with far greater precision. The process can be further categorized into hot forging, warm forging, and cold forging, each influencing the material properties and the final product's characteristics. Hot forging, conducted at elevated temperatures, is the most common method for crankshafts, allowing for significant deformation and optimal grain flow.
The Forging Process in Detail
The crankshaft forging process begins with heating a steel billet to a forging temperature, typically in the range of 1100-1250°C for steel. This makes the steel pliable enough to be shaped under pressure. The heated billet is then placed into forging dies, which are precisely machined molds that replicate the desired crankshaft shape. Massive forging presses, capable of exerting thousands of tons of force, then close the dies, forcing the metal to conform to the die cavity. This intense pressure not only shapes the crankshaft but also refines its microstructure, eliminating internal voids and improving overall density. Multiple forging steps might be involved, using different die sets to progressively achieve the final complex crankshaft geometry. After forging, the crankshaft undergoes trimming to remove excess material (flash) and heat treatment processes like quenching and tempering to achieve the desired hardness and mechanical properties. It’s a rigorous process, but the resulting crankshaft is exceptionally strong and reliable.
Exploring Crankshaft Casting
Casting, conversely, is a process where molten metal is poured into a mold cavity that takes the shape of the desired component. For crankshafts, various casting methods can be employed, including sand casting, investment casting, and die casting. Sand casting is perhaps the most common and cost-effective method for larger crankshafts, while investment casting (also known as lost-wax casting) can produce more intricate and precise shapes, albeit at a higher cost. Die casting, typically used for non-ferrous metals, is less common for steel crankshafts due to the high melting point of steel and the demands on die materials. Unlike forging, casting does not involve the same level of compressive force and grain flow manipulation. The metal solidifies within the mold, taking its shape, but the resulting microstructure is fundamentally different from that of a forged component. Have you ever made a gelatin mold? Casting metal is somewhat analogous – pouring liquid into a shape and letting it solidify.
The Casting Process for Crankshafts
The casting process for crankshafts starts with creating a mold, typically from sand or a ceramic material. For sand casting, a pattern of the crankshaft is made, and this pattern is used to create the mold cavity in sand, which is then hardened. For investment casting, a wax pattern is created, coated with a ceramic slurry, and then the wax is melted out, leaving a ceramic mold. Molten metal, usually cast iron or steel alloys, is then carefully poured into the mold cavity. The molten metal is heated to a temperature significantly above its melting point to ensure proper flow and filling of the mold. Once the metal has solidified and cooled, the mold is broken away, and the cast crankshaft is extracted. Subsequent processes include cleaning, fettling (removing excess material), and machining to achieve the final dimensions and surface finish. While casting can produce complex shapes efficiently, it's worth noting that the solidification process can sometimes lead to porosity or internal defects if not carefully controlled.
Forging vs. Casting: A Detailed Comparison
When directly comparing forging and casting for crankshaft manufacturing, several key factors come into play. Firstly, strength and durability are significantly higher in forged crankshafts. The aligned grain structure achieved through forging imparts superior tensile strength, fatigue resistance, and impact toughness. This makes forged crankshafts ideal for high-performance engines and demanding applications where reliability is paramount. Casted crankshafts, while offering adequate strength for many applications, generally exhibit lower mechanical properties due to their cast microstructure, which can be more prone to porosity and less uniform grain structure. Secondly, cost is a major differentiator. Casting often presents a lower initial cost, especially for complex shapes and large production volumes. Forging typically involves higher tooling costs and more processing steps, leading to a potentially higher per-unit cost. However, the longer lifespan and enhanced performance of forged crankshafts can sometimes offset the higher upfront cost in the long run, particularly in critical applications.
Material Properties and Performance
The inherent material properties achieved through forging and casting directly impact the performance of the crankshaft. Forging refines the metal's microstructure, leading to a denser, more homogenous material with fewer internal defects. This translates to improved fatigue life, which is crucial for crankshafts that endure millions of cycles of stress during engine operation. Forged crankshafts are also better equipped to withstand high stresses and temperatures, making them suitable for high-output engines and racing applications. Casted crankshafts, while capable, may exhibit some degree of porosity and less uniform microstructure, which can potentially reduce fatigue strength and overall durability, especially under extreme conditions. However, advancements in casting technologies, such as squeeze casting and continuous casting, are continually improving the quality and performance of cast components, narrowing the gap with forged parts in certain applications. It's truly a constant evolution in materials engineering.
Design Complexity and Manufacturing Efficiency
In terms of design complexity, casting generally offers greater flexibility. Intricate shapes and complex geometries can be more easily achieved through casting, as the molten metal can flow into intricate mold cavities. Forging, while capable of producing complex shapes, is often constrained by the die design and the flow of metal under pressure. Very intricate internal features or undercuts might be challenging to forge directly and may require subsequent machining operations. Regarding manufacturing efficiency, casting can be highly efficient for large-volume production, especially for simpler crankshaft designs. The mold-making process can be streamlined, and multiple crankshafts can sometimes be cast in a single mold. Forging, while also scalable, may involve more complex setups and longer cycle times, particularly for complex crankshaft geometries. Therefore, the choice between forging and casting also often hinges on the desired design complexity and the required production volume. Have you ever considered how much design freedom each process actually offers?
Applications and Industry Examples
The applications for forged and cast crankshafts are largely determined by their respective strengths and limitations. Forged crankshafts are predominantly used in high-performance engines, racing cars, heavy-duty trucks, aircraft engines, and other demanding applications where maximum strength, reliability, and fatigue resistance are critical. Think of Formula 1 engines or large diesel engines in ships – these almost exclusively rely on forged crankshafts. They are also favored in engines subjected to high stress and vibration, ensuring long-term durability. Cast crankshafts find widespread use in standard passenger vehicles, commercial vehicles, agricultural machinery, and industrial engines where cost-effectiveness and adequate performance are prioritized. For everyday driving and less extreme operating conditions, cast crankshafts provide a reliable and economical solution. Interestingly enough, even within the automotive industry, there's a spectrum; high-end sports cars often utilize forged crankshafts, while economy cars typically employ cast versions.
Choosing the Right Process: Forging or Casting?
Selecting between forging and casting for crankshaft manufacturing is a multifaceted decision that depends on a careful evaluation of performance requirements, cost considerations, design complexity, and production volume. For applications demanding ultimate strength, durability, and fatigue resistance, especially in high-stress environments, forging is undeniably the superior choice. While potentially more expensive upfront, the enhanced performance and extended lifespan of forged crankshafts often justify the investment in critical applications. Conversely, for applications where cost-effectiveness and moderate performance are acceptable, and especially for complex designs or large production runs, casting offers a viable and often more economical alternative. Advancements in casting technology are continually improving the properties of cast components, making them increasingly competitive in a wider range of applications. Ultimately, the optimal choice is a balance between performance needs and economic constraints, carefully considered within the context of the specific application and engine design.
