The crankshaft, often hailed as the backbone of any reciprocating engine, plays a pivotal role in converting linear piston motion into rotational force, the very essence of power generation. Its robust nature belies the immense stresses and strains it endures constantly, operating under high loads, extreme temperatures, and relentless friction. Consequently, maintaining the crankshaft in optimal condition is not merely a maintenance task; it's a cornerstone of ensuring engine longevity, efficiency, and overall operational safety. A compromised crankshaft can lead to catastrophic engine failure, resulting in costly repairs, significant downtime, and potentially dangerous situations. Therefore, understanding how to effectively inspect and evaluate the condition of a crankshaft is an indispensable skill for mechanics, engineers, and anyone responsible for engine maintenance and performance.
Understanding the Critical Role of the Crankshaft
To truly appreciate the importance of crankshaft inspection, it's essential to understand its operational environment and the stresses it faces. Imagine the crankshaft as the central conductor in an orchestra, synchronizing the movements of pistons, connecting rods, and bearings with precision. Each combustion cycle imparts tremendous force onto the pistons, which is then transmitted through the connecting rods to the crankshaft journals. These journals, rotating within the main bearings, experience constant cyclical loading, bending, and torsional stresses. Furthermore, the crankshaft is subjected to significant thermal stresses due to its proximity to combustion chambers and frictional heat generation within bearings. These combined factors, over time, can lead to various forms of degradation, including wear, fatigue cracking, bending, and surface damage. Ignoring the early signs of crankshaft deterioration is akin to ignoring a ticking time bomb within the engine, potentially leading to sudden and severe failures that could have been prevented with timely inspection and evaluation.
Visual Inspection: The First Line of Defense
The initial step in evaluating crankshaft condition is a thorough visual inspection. This process, while seemingly straightforward, is crucial for identifying obvious signs of damage or wear that might indicate more serious underlying issues. Begin by carefully cleaning the crankshaft to remove any oil, grease, or debris that could obscure surface imperfections. Using a bright light and magnification, meticulously examine all critical areas, including the main journals, rod journals, crankpins, counterweights, and fillet radii. Look for visible cracks, scratches, scoring, pitting, corrosion, and signs of overheating, such as discoloration or bluing of the metal. Pay particular attention to the fillet radii, the curved transitions between journals and crank arms, as these are stress concentration points and common locations for fatigue cracks to initiate. Also, check for any signs of bearing material transfer, which might indicate bearing failure or inadequate lubrication. Remember, a keen eye and a systematic approach during visual inspection can often reveal significant problems early on, saving considerable time and resources in the long run.
Checking for Cracks and Surface Imperfections
Delving deeper into visual inspection, the primary focus should be on detecting cracks and surface imperfections. Cracks, even hairline ones, are critical defects that can propagate under operational stress and lead to catastrophic failure. Use a magnifying glass or a crack detection dye penetrant kit to enhance visibility. Dye penetrant testing involves applying a visible dye to the cleaned surface, allowing it to seep into any cracks, removing excess dye, and then applying a developer that draws the dye back to the surface, making cracks more easily visible. Beyond cracks, look for surface imperfections such as scratches, gouges, and pitting. While minor scratches might be acceptable, deep scratches or gouges can act as stress raisers, increasing the likelihood of fatigue cracking. Pitting, often caused by corrosion or cavitation, weakens the surface and can also lead to crack initiation. Document all observed imperfections, noting their location, size, and severity. This detailed record will be invaluable for subsequent evaluation steps and for tracking the progression of any defects over time. It's worth noting that in some cases, even experienced inspectors might miss subtle cracks during visual inspection alone, highlighting the importance of complementary non-destructive testing methods.
Dimensional Measurements: Ensuring Geometric Accuracy
Beyond visual inspection, dimensional measurements are essential to assess the geometric accuracy of the crankshaft and identify any deviations from manufacturer specifications. Key dimensional checks include journal diameter, journal taper, journal ovality (out-of-roundness), and crankshaft runout (straightness). These measurements are typically performed using precision measuring instruments such as micrometers and dial indicators. Journal diameter measurements should be taken at multiple points along each journal's length to detect taper and ovality. Taper refers to a gradual decrease in diameter along the journal, while ovality refers to a journal being egg-shaped rather than perfectly round. Excessive taper or ovality can lead to uneven bearing contact, increased wear, and reduced bearing life. Crankshaft runout, also known as total indicator reading (TIR), measures the amount of bend or warp in the crankshaft. This is typically checked by mounting the crankshaft on V-blocks and rotating it while measuring the deflection at various points along its length using a dial indicator. Excessive runout can cause vibrations, bearing misalignment, and premature wear. Comparing these measured dimensions to manufacturer specifications is crucial to determine if the crankshaft is within acceptable tolerances. Deviations outside these tolerances indicate wear, distortion, or damage that may necessitate repair or replacement.
Utilizing Precision Measuring Tools
The accuracy of dimensional measurements hinges on the use of appropriate precision measuring tools and proper measurement techniques. For journal diameter, taper, and ovality measurements, outside micrometers are the instrument of choice. Ensure the micrometer is properly calibrated and used according to the manufacturer's instructions. Take multiple measurements at different locations around the circumference and along the length of each journal to accurately assess taper and ovality. For crankshaft runout measurements, a dial indicator mounted on a stable base is required. The crankshaft should be supported on precision V-blocks, ensuring it rotates freely and concentrically. Position the dial indicator tip perpendicular to the crankshaft surface and rotate the crankshaft slowly and smoothly, observing the total indicator reading. Proper technique involves ensuring the crankshaft is clean, the measuring instruments are calibrated, and measurements are taken carefully and consistently. Inaccurate measurements can lead to misdiagnosis and inappropriate maintenance decisions. Therefore, investing in quality measuring tools and ensuring technicians are properly trained in their use are vital for accurate crankshaft evaluation.
Non-Destructive Testing (NDT): Unveiling Subsurface Flaws
While visual inspection and dimensional measurements provide valuable insights into the surface condition and geometry of the crankshaft, they may not detect subsurface flaws or internal defects. This is where Non-Destructive Testing (NDT) methods become indispensable. NDT techniques allow for the evaluation of material integrity without causing damage to the component itself. Several NDT methods are applicable to crankshaft inspection, including Magnetic Particle Testing (MPT) and Ultrasonic Testing (UT). MPT is particularly effective for detecting surface and near-surface cracks in ferromagnetic materials like steel crankshafts. UT, on the other hand, can detect both surface and subsurface flaws, including cracks, inclusions, and voids, and can also be used to assess material thickness and integrity. Selecting the appropriate NDT method depends on the specific application, the type of material, and the type of defects being sought. Often, a combination of NDT methods is used to provide a comprehensive assessment of crankshaft condition, ensuring no critical flaws are overlooked. NDT methods are crucial for identifying hidden defects that could lead to premature failure, enhancing the reliability and safety of engine operation.
Magnetic Particle Testing (MPT) and Ultrasonic Testing (UT)
Let's delve deeper into Magnetic Particle Testing (MPT) and Ultrasonic Testing (UT), two commonly used NDT methods for crankshaft inspection. MPT is based on the principle of magnetic flux leakage. The crankshaft is magnetized, and if a surface or near-surface crack is present, it disrupts the magnetic field, causing flux leakage. Fine magnetic particles are then applied to the surface, and these particles are attracted to the flux leakage, visually indicating the location and extent of the crack. MPT is relatively simple to perform and highly sensitive to surface cracks. Ultrasonic Testing (UT) utilizes high-frequency sound waves to probe the internal structure of the crankshaft. Sound waves are transmitted into the material, and reflections are analyzed to detect flaws. Different types of flaws reflect sound waves differently, allowing for their identification and characterization. UT can detect both surface and subsurface flaws, and it can also provide information about the size and depth of defects. Compared to MPT, UT requires more specialized equipment and operator training, but it offers greater penetration depth and the ability to detect internal flaws. The choice between MPT and UT, or the use of both, depends on the criticality of the application and the desired level of inspection thoroughness. For critical crankshafts in high-performance or safety-critical applications, a combination of both methods might be employed to ensure comprehensive flaw detection.
Bearing Clearance Checks: Assessing Lubrication Gaps
While not directly evaluating the crankshaft material itself, checking bearing clearance is an indirect but crucial method for assessing crankshaft condition and ensuring proper lubrication. Bearing clearance refers to the space between the crankshaft journals and the bearing shells. This clearance is essential for creating an oil film that lubricates and separates the rotating surfaces, preventing metal-to-metal contact and wear. Excessive bearing clearance can lead to oil pressure loss, increased bearing noise, and reduced engine performance. Insufficient bearing clearance can result in oil starvation, overheating, and bearing seizure. Bearing clearance is typically checked using Plastigauge, a calibrated plastic thread that is compressed between the journal and bearing shell when the bearing cap is torqued down. After removing the bearing cap, the flattened Plastigauge is compared to a scale on the Plastigauge packaging to determine the bearing clearance. Checking bearing clearance provides valuable information about the wear condition of both the crankshaft journals and the bearings. Abnormal bearing clearance readings can indicate crankshaft journal wear, bearing wear, or both, signaling the need for further investigation and potential component replacement. Maintaining proper bearing clearance is vital for ensuring adequate lubrication and prolonging the life of both the crankshaft and bearings.
The Plastigauge Method for Clearance Measurement
The Plastigauge method is a widely used and relatively simple technique for measuring bearing clearance. To perform a Plastigauge check, first, ensure the bearing surfaces are clean and free of oil. Cut a piece of Plastigauge thread to the width of the bearing journal and place it lengthwise on the journal. Carefully install the bearing cap and torque it down to the manufacturer's specified torque. Do not rotate the crankshaft while the Plastigauge is in place. After torquing, remove the bearing cap and carefully observe the flattened Plastigauge on either the journal or the bearing shell. Compare the width of the flattened Plastigauge to the measuring scale printed on the Plastigauge packaging to determine the bearing clearance. Repeat this process for each main and rod bearing. It's crucial to use the correct type of Plastigauge for the intended clearance range, as different Plastigauge grades are available for different clearance specifications. Also, ensure the bearing caps are torqued to the correct specification, as improper torque can lead to inaccurate clearance readings. The Plastigauge method provides a quick and reliable way to check bearing clearance, allowing for timely identification of potential lubrication issues and preventing more serious engine problems. Regular bearing clearance checks, especially during engine rebuilds or major maintenance, are a best practice for ensuring engine longevity and performance.
Material Condition Analysis: Hardness and Surface Finish
In addition to geometric accuracy and flaw detection, evaluating the material condition of the crankshaft is also important. Key material properties to assess include hardness and surface finish. Crankshafts are typically made from hardened steel or cast iron to withstand high stresses and wear. Hardness testing verifies that the crankshaft material meets the specified hardness requirements, ensuring it has adequate resistance to wear and fatigue. Common hardness testing methods for crankshafts include Rockwell and Brinell hardness tests. Surface finish, or surface roughness, is another critical factor affecting crankshaft performance and bearing life. A smooth surface finish minimizes friction, reduces wear, and promotes proper oil film formation. Surface finish is typically measured using a profilometer, which quantifies the roughness parameters such as Ra (average roughness) and Rz (maximum roughness height). Comparing hardness and surface finish measurements to manufacturer specifications ensures that the crankshaft material meets the required quality standards and is suitable for continued service. Deviations from specifications may indicate material degradation, improper heat treatment, or manufacturing defects, potentially compromising crankshaft durability and reliability. Material condition analysis provides a deeper understanding of crankshaft integrity beyond just geometry and flaw detection.
Oil Analysis: An Indirect Indicator of Crankshaft Health
While not a direct inspection method for the crankshaft itself, oil analysis can provide valuable indirect insights into crankshaft condition and overall engine health. Engine oil lubricates and cools the crankshaft bearings, and as components wear, microscopic particles of metal and other materials are released into the oil. Oil analysis involves taking a sample of engine oil and analyzing it for various parameters, including viscosity, wear metals, contaminants, and additives. Elevated levels of wear metals, such as iron, copper, aluminum, and chromium, in the oil can indicate wear in various engine components, including crankshaft journals, bearings, and cylinder liners. The type and concentration of wear metals can help pinpoint the source of wear and assess its severity. For example, high iron content might suggest crankshaft or cylinder liner wear, while high copper content could indicate bearing wear. Oil analysis also detects contaminants like dirt, coolant, and fuel dilution, which can accelerate wear and degradation of engine components, including the crankshaft. Regular oil analysis, as part of a proactive maintenance program, can provide early warning signs of developing engine problems, allowing for timely intervention and preventing more serious damage to the crankshaft and other critical components. It's a cost-effective way to monitor engine health and extend component lifespan.
Preventative Maintenance and Best Practices
The most effective approach to ensuring crankshaft longevity and reliability is through preventative maintenance and adherence to best practices. Regular engine oil changes with high-quality oil and filters are paramount. Clean oil lubricates effectively, minimizing friction and wear on crankshaft bearings and journals. Following the manufacturer's recommended oil change intervals and using the specified oil viscosity are crucial. Maintaining proper engine cooling system function is also essential to prevent overheating, which can lead to crankshaft distortion and bearing damage. Regular inspection and maintenance of the cooling system, including coolant level checks, radiator inspections, and hose replacements, are important. Avoiding engine overloading and excessive idling can also reduce stress on the crankshaft and extend its lifespan. During engine rebuilds or major maintenance, always perform thorough crankshaft inspections and evaluations using the methods described earlier. Replacing worn bearings, seals, and other related components at recommended intervals further contributes to crankshaft health. By implementing a proactive preventative maintenance program and adhering to best operating practices, you can significantly extend the lifespan of your crankshaft and minimize the risk of costly engine failures. Remember, prevention is always better, and certainly more cost-effective, than cure.
Conclusion: Ensuring Engine Heart Health
Inspecting and evaluating crankshaft condition is not merely a routine check; it's a critical diagnostic procedure that safeguards the very heart of the engine. From visual inspections that catch obvious flaws to advanced NDT methods that reveal hidden defects, and from dimensional measurements that ensure geometric precision to bearing clearance checks that guarantee proper lubrication, each step plays a vital role in assessing the overall health of this essential engine component. By diligently applying these inspection and evaluation techniques, mechanics and engineers can proactively identify potential problems, prevent catastrophic failures, and ensure the continued reliable operation of engines across diverse applications. The crankshaft, though often unseen, is the unsung hero of engine power generation, and its condition directly dictates engine performance, longevity, and safety. Therefore, mastering the art and science of crankshaft inspection and evaluation is an investment in engine health and operational excellence.

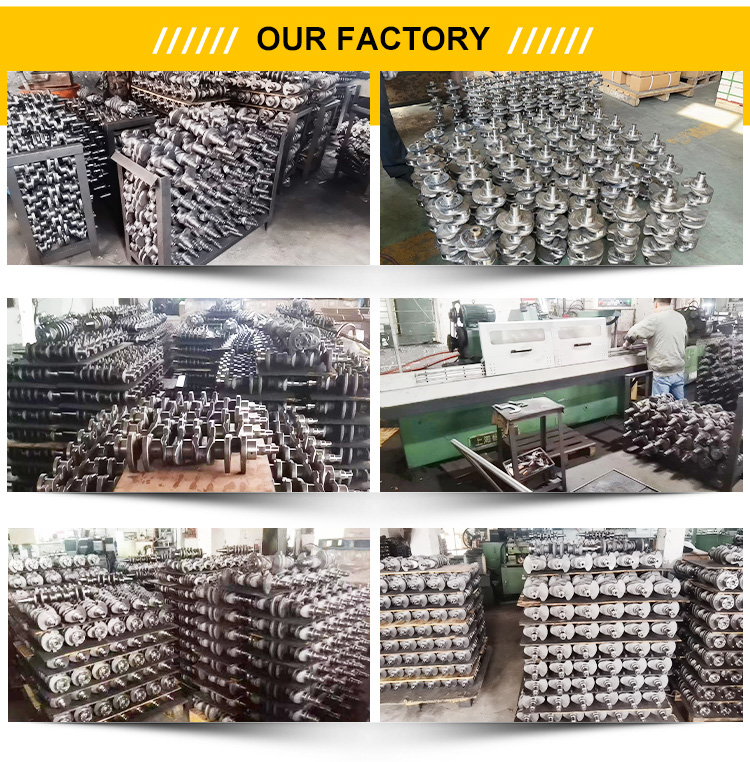

Our company understands the critical importance of crankshaft integrity and offers a range of advanced inspection and evaluation services, along with high-quality replacement crankshafts and related engine components. We leverage cutting-edge NDT technologies and employ highly skilled technicians to provide comprehensive crankshaft assessments, ensuring our clients receive accurate diagnoses and effective solutions. Whether you require routine inspections, failure analysis, or component replacements, we are committed to providing reliable and professional services to keep your engines running smoothly and efficiently. We are dedicated to supporting your engine maintenance needs with expertise and quality products.
