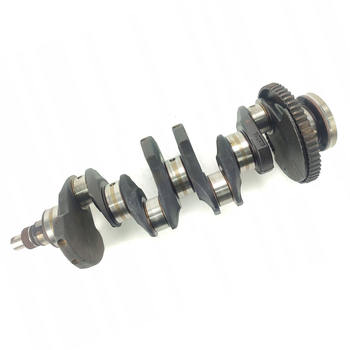

Purchasing a used crankshaft can be a cost-effective way to rebuild an engine or complete a restoration project. However, it's a component that is absolutely critical to the engine's operation and longevity. A seemingly minor flaw in a used crankshaft can lead to catastrophic engine failure, costing you significantly more in repairs and downtime than you might have initially saved. Therefore, knowing how to properly inspect a used crankshaft before you commit to a purchase is not just advisable, it’s absolutely essential. This article will guide you through the key steps and considerations to ensure you’re making a sound investment and avoiding potential engine nightmares. We'll delve into visual inspections, dimensional checks, and even subtle signs of wear and tear that can indicate a crankshaft’s true condition, equipping you with the knowledge needed to make an informed decision.
Visual Inspection: The First Line of Defense
The first step in inspecting a used crankshaft is a thorough visual examination. This might seem straightforward, but it's surprising how much you can discern with a keen eye and a systematic approach. Start by cleaning the crankshaft as best as possible. Dirt, grease, and rust can obscure critical flaws. Use a parts cleaner and a wire brush to remove any surface debris. Once clean, carefully rotate the crankshaft, examining every inch of its surface under good lighting. Look for any obvious signs of damage. Cracks are a major red flag. They can be hairline fractures or more significant breaks, often originating at stress points like fillets (the curved areas where journals meet the crank webs) or oil holes. Pay close attention to these areas, using a magnifying glass if necessary. Also, inspect for nicks, gouges, or deep scratches. These can create stress risers and weaken the crankshaft's structural integrity. Remember, even small visual imperfections can be indicators of more serious underlying problems, so don't dismiss anything that looks out of place.
Checking Journal Surfaces for Wear and Damage
The journals of a crankshaft are the bearing surfaces that support it within the engine block. These surfaces are absolutely critical and must be in excellent condition for proper engine operation. When inspecting the journals, you're primarily looking for signs of wear, scoring, and discoloration. Wear can manifest as a noticeable reduction in diameter, though this is typically measured more accurately with micrometers (discussed later). Visually, wear might be subtle, but look for areas that appear polished or excessively smooth compared to the rest of the journal surface. Scoring is a more obvious defect, appearing as scratches or grooves running along the journal's length. These are often caused by debris in the oil or bearing failure. Even minor scoring can compromise bearing performance and oil film integrity. Discoloration, particularly a bluish tint, can indicate overheating. Overheating often results from bearing failure or lubrication issues and can significantly weaken the metal’s structure. Run your fingernail across the journal surfaces. You should feel a smooth, consistent surface. Any catches, bumps, or roughness indicate damage that warrants further investigation or outright rejection of the crankshaft.
Assessing Crankshaft Straightness and Runout
A crankshaft must be perfectly straight to rotate smoothly and efficiently within the engine. Even slight bends or warps can lead to vibration, bearing wear, and ultimately, engine failure. Checking for straightness, or more accurately, runout, is a crucial step in crankshaft inspection. Ideally, this is done using V-blocks and a dial indicator. V-blocks support the crankshaft at two points, usually on the main journals, allowing it to rotate freely. The dial indicator is then placed against a central main journal while the crankshaft is slowly rotated. The dial indicator will measure any deviation from a perfectly circular path, indicating runout. Excessive runout signifies a bent crankshaft. While a dial indicator provides the most accurate measurement, a simpler, albeit less precise, visual check can be performed if you don't have access to these tools. Place the crankshaft on a flat surface, like a clean workbench, and try to roll it. If it rolls smoothly and evenly, it’s more likely to be straight. If it wobbles or binds, it suggests a bend. It's worth noting that even if it appears visually straight, a dial indicator check is always recommended for accurate assessment, especially for high-performance or critical engine builds. If runout exceeds manufacturer specifications, the crankshaft may be bent and require professional straightening or replacement.
Inspecting Keyways, Threads, and Flange Condition
Beyond the main journals, other critical areas require careful inspection. Keyways and threads are essential for attaching components like pulleys, gears, and flywheels/flexplates to the crankshaft. Keyways, which are slots that accept keys to prevent rotational slippage of attached components, should be inspected for wear and elongation. Worn keyways can lead to loose pulleys or gears, causing timing issues, vibrations, and potential damage to other engine components. Check for any signs of the keyway being widened or deformed. Threads, typically found at the front and rear of the crankshaft for attaching pulleys, balancers, and flywheels, must be in good condition. Inspect for stripped, damaged, or cross-threaded areas. Damaged threads can prevent proper tightening and secure attachment of components, which can lead to serious problems. Run a nut or bolt through the threads to ensure they are clean and undamaged. The crankshaft flange, where the flywheel or flexplate bolts on, should also be inspected. Ensure it is flat and free from damage. Warped or damaged flanges can cause vibration and misalignment issues. Pay attention to the bolt holes on the flange, checking for stretched or damaged threads. These seemingly small details are crucial for the proper functioning and reliability of the engine.
Checking Oil Passages and Galleries for Blockages
Proper lubrication is the lifeblood of any engine, and the crankshaft plays a vital role in distributing oil to critical bearings and components. Therefore, inspecting the oil passages and galleries within the crankshaft is paramount. These passages are designed to channel oil from the main bearings to the rod bearings and other parts. Blockages in these passages, even partial ones, can severely restrict oil flow, leading to bearing failure and catastrophic engine damage. To inspect the oil passages, use compressed air to blow through each oil hole and gallery. You should feel air freely exiting from the corresponding outlets. If there's resistance or no airflow, it indicates a blockage. Sometimes, blockages can be caused by hardened oil deposits, metal shavings, or other debris. If you suspect a blockage, try using a thin wire or pipe cleaner to carefully probe the passages and dislodge any obstructions. In more stubborn cases, soaking the crankshaft in a solvent bath might be necessary. Ensure all oil passages are clear and unobstructed before considering the crankshaft for purchase. Ignoring this step could lead to devastating consequences for your engine.
Considering Material and Manufacturing Marks
While not always definitive, examining the material and manufacturing marks on a used crankshaft can provide valuable clues about its quality and origin. Many crankshafts, especially those from reputable manufacturers, will have markings indicating the material type, casting numbers, or even manufacturer logos. These markings can help you verify the crankshaft's specifications and potentially trace its history. For example, knowing the material type (e.g., forged steel, cast iron) can give you an idea of its strength and durability. Forged steel crankshafts are generally stronger and more suitable for high-performance applications compared to cast iron ones. Look for any markings that might be stamped or cast into the crankshaft webs or counterweights. Researching these markings online or consulting with engine specialists can provide insights into the crankshaft's original application and quality level. Be wary of crankshafts with no markings or poorly defined markings, as these could be of questionable origin or even counterfeit. While markings are not a substitute for thorough physical inspection, they can be a helpful supplementary check in assessing a used crankshaft's potential suitability.
When to Seek Professional Inspection and Machining
Even with careful visual inspection and basic checks, some crankshaft issues are simply beyond the scope of DIY assessment. If you encounter any doubts or suspect significant wear or damage, it's always prudent to seek professional inspection and machining services. Engine machine shops have specialized equipment and expertise to perform more in-depth crankshaft analysis. They can accurately measure journal diameters, check for taper and out-of-roundness, and perform non-destructive testing like magnafluxing to detect hidden cracks that are not visible to the naked eye. Furthermore, if the crankshaft journals are slightly worn or scored, a machine shop can perform crankshaft grinding to restore them to their original dimensions. However, it's crucial to note that crankshaft grinding removes material, and there's a limit to how much material can be safely removed. Oversized bearings are then used to compensate for the reduced journal diameter. If the wear is excessive, or if the crankshaft has been ground previously to its maximum undersize, it may not be salvageable. In such cases, replacement is the only option. Don't hesitate to consult with a reputable engine machine shop if you have any concerns about a used crankshaft's condition. Their expertise can save you from costly mistakes and ensure the longevity of your engine build.
Practical Examples and Scenarios: Real-World Crankshaft Issues
To truly understand the importance of thorough crankshaft inspection, consider some practical examples and scenarios where overlooking flaws can lead to serious problems. Imagine purchasing a used crankshaft that appears visually okay but has a subtle hairline crack near a journal fillet. This crack, initially missed, could propagate under engine load and eventually lead to crankshaft failure, potentially destroying the entire engine. Or consider a crankshaft with slightly scored journals. While it might seem minor, these scores can compromise oil film, leading to premature bearing wear and eventual engine seizure. Another scenario involves a bent crankshaft with excessive runout. Installing this crankshaft could result in significant engine vibration, accelerated bearing wear, and even damage to the engine block. These examples highlight that even seemingly minor defects in a used crankshaft can have major consequences. Thorough inspection, as outlined in this article, is not just a suggestion; it's a necessity to avoid costly repairs and ensure the reliability of your engine. Investing time in proper inspection upfront is far less expensive than dealing with the aftermath of a crankshaft failure.
Interactive Questions to Consider Before Purchase
Before you finalize the purchase of a used crankshaft, take a moment to ask yourself these interactive questions. Have you thoroughly cleaned and visually inspected the entire crankshaft under good lighting? Have you carefully examined all journals for wear, scoring, and discoloration? Have you checked for straightness and runout, ideally with a dial indicator, or at least a visual roll test? Have you inspected keyways and threads for damage and wear? Have you confirmed that all oil passages are clear and unobstructed? If possible, have you researched any manufacturer markings to understand the crankshaft's origin and specifications? And most importantly, are you completely confident in your assessment, or would seeking professional inspection provide valuable peace of mind? Answering these questions honestly will guide you in making a well-informed decision. If any of these checks raise concerns, it’s often better to err on the side of caution and either seek professional help or consider sourcing a different crankshaft. Remember, the crankshaft is the backbone of your engine, and its integrity is non-negotiable.
Conclusion: Ensuring Crankshaft Integrity for Engine Longevity
In conclusion, properly inspecting a used crankshaft before purchase is a critical step in any engine rebuild or restoration project. It’s not just about saving money initially; it’s about safeguarding your engine investment and ensuring long-term reliability and performance. By diligently following the inspection steps outlined in this guide – from visual examination and journal checks to straightness assessment and oil passage verification – you can significantly reduce the risk of purchasing a faulty crankshaft. Remember to pay attention to even subtle signs of wear and damage, and don’t hesitate to seek professional help when needed. A thorough inspection upfront can prevent costly engine failures down the road and give you confidence in the heart of your engine. At our company, we understand the importance of high-quality engine components. While this article focuses on used crankshaft inspection, we offer a range of new and remanufactured engine parts that meet stringent quality standards. We are committed to providing reliable components and expert advice to help you build engines that perform and endure. Choosing quality from the outset is always the best approach to engine building, and proper inspection is your first line of defense when considering used parts.
