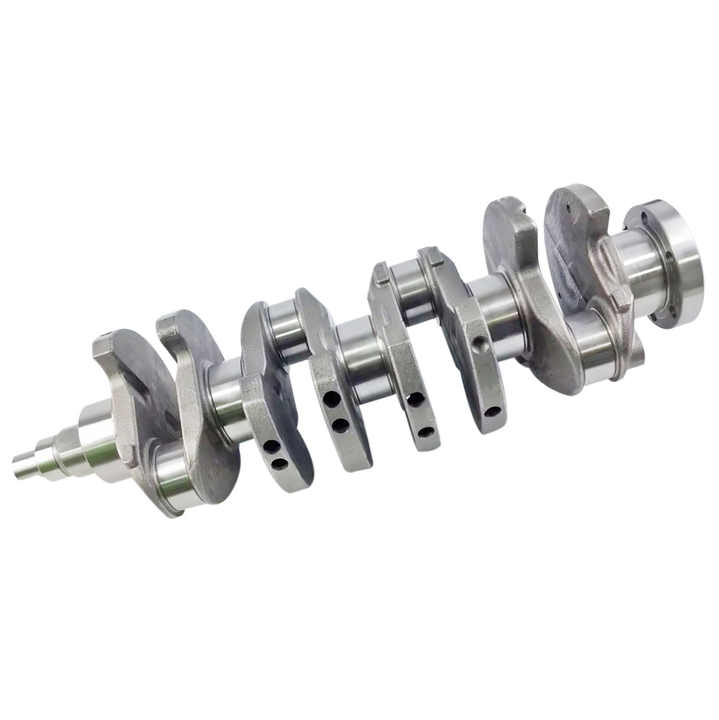

The internal combustion engine, a marvel of engineering, relies on a symphony of precisely interacting components to convert fuel into motion. At the heart of this intricate system lies the crankshaft, the backbone responsible for translating the reciprocating motion of pistons into rotational force. However, the crankshaft’s relentless operation under immense pressure and high temperatures necessitates a robust and efficient lubrication system. Central to this system is the crankshaft oil passage design, a seemingly simple yet profoundly critical element that dictates the longevity, performance, and overall health of the engine. Without meticulously designed oil passages, even the most robust engine materials and advanced combustion technologies would be rendered ineffective, leading to catastrophic failures and significantly reduced engine lifespan. Therefore, understanding the intricacies of crankshaft oil passage design is paramount for anyone involved in engine design, manufacturing, maintenance, or even simply appreciating the engineering genius behind modern vehicles.
The Indispensable Role of Lubrication in Engine Health
To be honest, before delving into the specifics of crankshaft oil passage design, it’s crucial to underscore the fundamental importance of lubrication within an engine. Imagine the crankshaft, rotating thousands of times per minute, enduring extreme forces from combustion and piston movement. Without a continuous and adequate supply of lubricant, the metal-to-metal contact between the crankshaft journals and bearings would generate immense friction. This friction translates directly into heat, wear, and ultimately, engine seizure. Lubrication, primarily achieved through engine oil, acts as a protective film, separating these critical surfaces and minimizing friction. Beyond friction reduction, engine oil also serves several other vital functions, including cooling components by carrying away heat, cleaning engine internals by suspending and transporting debris, and sealing combustion gases within the cylinders. Therefore, a well-lubricated engine operates more efficiently, experiences significantly reduced wear and tear, and delivers optimal performance over an extended lifespan. The crankshaft oil passage design is the very artery that delivers this lifeblood to the engine's most critical areas, making its design and functionality non-negotiable for engine health.
Key Principles Guiding Effective Oil Passage Design
When it comes to designing effective crankshaft oil passages, several core principles come into play. Firstly, ensuring adequate oil flow is paramount. The passages must be sized and configured to deliver a sufficient volume of oil to all bearing surfaces under various engine operating conditions, from idling to high RPMs and heavy loads. Secondly, maintaining consistent oil pressure is equally crucial. Pressure fluctuations can lead to inconsistent lubrication, starving critical areas and causing damage. Therefore, the design must minimize pressure drops along the oil passage network. Thirdly, the geometry of the passages plays a significant role. Sharp corners and abrupt changes in diameter can create turbulence and restrict oil flow, potentially leading to cavitation and reduced lubrication effectiveness. Smooth, gradual transitions are preferred to promote laminar flow and minimize pressure losses. Fourthly, the location and orientation of oil inlets and outlets are strategically determined to ensure oil reaches all critical bearing surfaces effectively. Finally, the overall layout must be designed for manufacturability and ease of maintenance. Complicated and convoluted passages can be challenging to manufacture accurately and inspect, potentially compromising the entire lubrication system. These principles, when meticulously applied, form the foundation of a robust and reliable crankshaft oil passage design.
Factors Significantly Affecting Oil Passage Performance
Interestingly enough, the performance of crankshaft oil passages isn't solely determined by their initial design. Several factors, both intrinsic and extrinsic to the engine, can significantly impact their effectiveness over time. Oil viscosity, for instance, is a critical factor. Oil that is too thick may struggle to flow effectively through narrow passages, especially at low temperatures, while oil that is too thin may not provide adequate film strength at high temperatures and loads. Engine operating temperature also plays a crucial role. Excessive heat can degrade oil viscosity and lead to sludge formation, potentially clogging oil passages and restricting flow. Contaminants within the oil, such as wear debris, carbon deposits, and coolant leaks, can also accumulate within the passages, reducing their effective diameter and impeding oil flow. Furthermore, the engine's operating conditions, including RPM, load, and duty cycle, influence the demands placed on the lubrication system. High-performance engines operating at sustained high RPMs require a more robust oil passage design compared to engines primarily used for low-speed, city driving. Therefore, a holistic approach that considers these dynamic factors is essential for ensuring long-term oil passage performance and engine health.
Common Challenges Encountered in Crankshaft Oil Passage Design
Designing crankshaft oil passages is not without its challenges. One of the primary hurdles is balancing the need for adequate oil flow with the structural integrity of the crankshaft itself. Drilling oil passages weakens the crankshaft to some extent, especially in highly stressed areas. Engineers must carefully optimize the size and location of passages to minimize structural compromise while ensuring sufficient lubrication. Another challenge arises from the complex geometry of modern crankshafts, often incorporating intricate counterweights and balancing features. Routing oil passages through these complex shapes while maintaining smooth flow and minimizing pressure drops requires sophisticated design tools and techniques. Furthermore, manufacturing tolerances play a significant role. Even minor deviations from design specifications during manufacturing can affect oil flow rates and pressure distribution within the passages. Therefore, stringent quality control measures are necessary to ensure consistent performance. Finally, accommodating variations in oil viscosity and temperature across different operating conditions adds another layer of complexity. The design must be robust enough to provide adequate lubrication across a wide range of oil viscosities and temperatures, ensuring consistent engine protection regardless of the environment or operating style.
Advanced Techniques and Innovations in Oil Passage Design
In the relentless pursuit of improved engine performance and efficiency, engineers are constantly exploring advanced techniques and innovations in crankshaft oil passage design. One notable area is the application of computational fluid dynamics (CFD) simulations. CFD allows engineers to virtually model and analyze oil flow within complex passage geometries, optimizing designs for minimal pressure drop and maximized flow rates before physical prototypes are even built. Another promising area is the use of optimized passage shapes and surface finishes. Instead of simple circular passages, some designs incorporate profiled passages or surface treatments to enhance laminar flow and reduce friction losses. Variable oil flow systems are also gaining traction, where oil flow is dynamically adjusted based on engine operating conditions. This can improve fuel efficiency and reduce parasitic losses associated with over-lubrication at lower loads. Furthermore, advancements in manufacturing techniques, such as additive manufacturing (3D printing), are opening up new possibilities for creating complex and optimized oil passage geometries that were previously unachievable with traditional methods. These innovations represent a continuous evolution in crankshaft oil passage design, pushing the boundaries of engine performance and durability.
The Impact of Material Selection on Oil Passage Durability and Longevity
While design geometry and flow dynamics are crucial, the material selection for the crankshaft itself, and consequently the oil passages, also profoundly impacts the durability and longevity of the lubrication system. The crankshaft material must possess adequate strength and fatigue resistance to withstand the immense cyclic stresses it endures during engine operation. Commonly used materials include forged steel alloys, chosen for their high strength and durability. However, the material’s machinability also becomes a consideration when creating intricate oil passages. The chosen material must allow for precise drilling and finishing of the passages to ensure smooth surfaces and accurate dimensions. Furthermore, the material's corrosion resistance is important, especially in environments where oil contamination or moisture ingress might occur. Corrosion within oil passages can restrict flow and introduce debris into the lubrication system. In some high-performance applications, specialized materials or surface coatings might be employed to further enhance wear resistance and reduce friction within the oil passages. Therefore, material selection is not merely a structural consideration but an integral part of ensuring the long-term reliability and effectiveness of the crankshaft oil passage design and the engine's lubrication system as a whole.
Our Solutions for Optimized Crankshaft Lubrication and Engine Health
Frankly speaking, at our company, we understand the critical importance of crankshaft oil passage design for engine health and performance. We offer a comprehensive suite of engineering services and products aimed at optimizing lubrication systems. Our expert team utilizes advanced CFD simulation tools to analyze and refine oil passage designs, ensuring optimal flow and pressure distribution for various engine applications. We provide consulting services to help engine manufacturers select appropriate materials and manufacturing processes for crankshafts and oil passages, considering factors like durability, machinability, and cost-effectiveness. Moreover, we offer precision machining services to manufacture crankshafts with intricate and accurately dimensioned oil passages, adhering to the most stringent quality standards. Our products also include advanced oil filtration systems designed to minimize contaminants within the engine oil, preventing blockage of oil passages and extending the life of critical components. By leveraging our expertise and comprehensive solutions, engine manufacturers can ensure their crankshaft oil passage designs are robust, efficient, and contribute to the overall health and longevity of their engines. We are committed to pushing the boundaries of lubrication technology and providing innovative solutions that enhance engine performance and reliability.
Conclusion: Reaffirming the Criticality of Crankshaft Oil Passage Design
In conclusion, it's worth noting that the crankshaft oil passage design is far from a trivial detail in engine engineering. It is, in fact, a cornerstone of engine health, performance, and longevity. As we've explored, meticulously designed oil passages are essential for delivering vital lubrication to critical engine components, minimizing friction, reducing wear, and dissipating heat. Factors like oil flow, pressure, passage geometry, material selection, and operating conditions all intricately interplay to determine the effectiveness of the lubrication system. Advanced techniques and ongoing innovations are continuously refining oil passage designs, pushing the boundaries of engine performance and durability. Ultimately, a well-engineered crankshaft oil passage design is an investment in engine reliability, ensuring smooth operation, extended lifespan, and optimal performance. Ignoring its importance is simply not an option for any engine designer or manufacturer striving for excellence and longevity in their products. The health of the engine, in many respects, flows directly through these carefully crafted passages.
