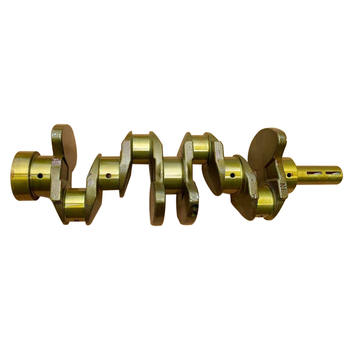

Have you ever considered what truly makes an engine tick, beyond just fuel and spark plugs? At the heart of every reciprocating engine, orchestrating the dance of power and efficiency, lies the crankshaft. And a key characteristic of this vital component is its stroke ratio. Frankly speaking, understanding the crankshaft stroke ratio is fundamental to grasping how an engine behaves, its strengths, and its limitations. This ratio, simply put, is the relationship between the piston stroke and the cylinder bore diameter. It's a seemingly simple concept, yet it profoundly dictates an engine's personality, influencing everything from its torque delivery and horsepower output to its fuel economy and overall efficiency. To truly appreciate engine design, we must delve into the intricacies of this ratio and its far-reaching consequences.
Understanding the Crankshaft Stroke Ratio
To be honest, the crankshaft stroke ratio isn't some arcane engineering secret, but it's often overlooked in everyday discussions about engines. Let's break down the core components first. The stroke refers to the distance the piston travels from top dead center (TDC) to bottom dead center (BDC) within the cylinder. The bore is the diameter of the cylinder itself. The stroke ratio is calculated by dividing the stroke length by the bore diameter. A stroke ratio greater than 1 indicates a long-stroke engine (also called undersquare), where the stroke is longer than the bore. Conversely, a ratio less than 1 signifies a short-stroke engine (oversquare), with a bore larger than the stroke. A stroke ratio of 1 is referred to as a square engine. It’s worth noting that this seemingly small difference in dimensions can lead to significant variations in engine characteristics and performance profiles. The stroke ratio isn't just a number; it's a fundamental design parameter that shapes the very nature of the engine.
Impact on Torque and Horsepower
The stroke ratio has a direct and significant impact on an engine's torque and horsepower characteristics, which are arguably the most critical aspects of engine performance. Long-stroke engines, with their longer piston travel, generally produce more low-end torque. This is because the longer stroke provides greater leverage on the crankshaft, effectively translating combustion pressure into rotational force at lower engine speeds. This makes long-stroke engines ideal for applications requiring strong pulling power at lower RPMs, such as trucks, tractors, and some motorcycles. On the other hand, short-stroke engines tend to favor high-end horsepower. The shorter stroke allows for higher piston speeds and faster engine revving, enabling the engine to breathe more efficiently at higher RPMs. This characteristic is beneficial for sports cars, racing engines, and applications where high-speed performance is paramount. It's a trade-off: torque at low speeds versus horsepower at high speeds, largely dictated by the stroke ratio.
Efficiency and Fuel Economy Considerations
Interestingly enough, the crankshaft stroke ratio also plays a crucial role in engine efficiency and fuel economy. Long-stroke engines, due to their combustion chamber shape and longer burn times, can sometimes exhibit better thermal efficiency at lower speeds. The more elongated combustion chamber in a long-stroke engine encourages a more complete combustion of fuel, especially at lower RPMs where flame propagation can be slower. This can translate into improved fuel economy in driving scenarios that favor lower engine speeds, such as city driving or highway cruising at moderate speeds. However, short-stroke engines, while potentially less efficient at low speeds due to faster flame propagation and potentially less complete combustion in certain conditions, can excel at higher RPMs. The reduced friction from shorter piston travel at high speeds, and the improved breathing at higher RPMs, can contribute to better overall efficiency when the engine is operating in its higher power band. Therefore, the "more efficient" stroke ratio depends heavily on the intended operating conditions of the engine.
Short Stroke Engines: The High-Revving Champions
Short-stroke engines, often characterized by their 'oversquare' design, have become synonymous with high-performance and responsiveness. Why is this the case? The shorter piston stroke inherently reduces piston speed for a given engine RPM. Lower piston speeds reduce inertial forces and friction, allowing the engine to rev higher and faster without mechanical stress. This characteristic is crucial for achieving high horsepower figures, as horsepower is directly related to engine speed. Furthermore, short-stroke engines often have larger bore diameters, which allows for larger valves and improved cylinder head design. This enhances the engine's ability to breathe – to intake air and expel exhaust gases – at high RPMs, further boosting high-end power. Think of high-revving sports cars or motorcycle engines; many of them employ short-stroke designs to achieve their exhilarating performance. These engines are built for speed and quick acceleration, thriving in environments where high RPMs are frequently utilized.
Long Stroke Engines: The Torque Masters
Conversely, long-stroke engines, with their 'undersquare' configuration, are the champions of torque. The longer stroke provides a greater lever arm for combustion pressure to act upon the crankshaft, resulting in increased torque output, especially at lower engine speeds. This characteristic makes long-stroke engines exceptionally well-suited for applications where pulling power and low-speed grunt are essential. Consider heavy-duty trucks, diesel engines, and even some off-road vehicles. These applications demand strong torque to move heavy loads or navigate challenging terrains, often at relatively low engine speeds. Long-stroke engines excel in these scenarios, providing ample power right off idle. While they may not rev as freely as short-stroke engines, their ability to deliver robust torque at low RPMs makes them incredibly effective for specific applications where brute force is prioritized over outright speed.
Practical Applications and Engine Examples
To truly understand the impact of stroke ratio, let's consider some practical examples. Many large displacement diesel engines in trucks and heavy machinery are designed with long strokes. For example, a typical large diesel truck engine might have a stroke ratio significantly greater than 1. This is because these vehicles need immense torque to haul heavy loads and climb steep grades. The long stroke helps deliver that necessary low-end grunt. On the other hand, consider a high-performance sports car engine. Engines like those found in many modern sports cars often employ short-stroke designs. These engines are built for rapid acceleration and high-speed cruising, prioritizing horsepower at higher RPMs. Even within gasoline engines, you'll find variations. Older American V8 engines were often long-stroke, emphasizing low-end torque for comfortable cruising and pulling power. More modern, high-output V8s and inline engines frequently lean towards shorter strokes to achieve higher RPM limits and greater peak horsepower. Examining real-world engine designs reveals a clear correlation between stroke ratio and intended application.
Factors Influencing Stroke Ratio Choice in Engine Design
The selection of stroke ratio in engine design isn't arbitrary; it's a carefully considered decision based on a multitude of factors. Engineers must weigh the intended application, desired performance characteristics, and even packaging constraints. For instance, in applications where space is limited, such as in some compact cars, a shorter stroke engine might be preferred as it can often result in a more compact engine block. Furthermore, advancements in engine technology, such as variable valve timing and direct fuel injection, have somewhat blurred the lines between long-stroke and short-stroke engine characteristics. Modern engine management systems can optimize combustion and breathing across a wider RPM range, mitigating some of the traditional limitations associated with each stroke ratio type. However, the fundamental principles remain. Designers still carefully consider the trade-offs between low-end torque and high-end horsepower, efficiency at different speeds, and the overall driving experience they aim to create when choosing the optimal stroke ratio for a particular engine.
Interactive Question: Considering Your Driving Needs
Now, let’s think about your own driving style and needs. Have you ever wondered why some cars feel punchy and responsive at low speeds, while others seem to come alive only when you really push them? This difference often boils down, in part, to the engine's stroke ratio. Considering what you’ve learned, if you primarily drive in city traffic and value quick acceleration from stoplights and effortless low-speed maneuvering, would you prefer a vehicle powered by a long-stroke or a short-stroke engine? And conversely, if you frequently drive on highways and enjoy spirited driving at higher speeds, which type of engine would better suit your needs? Reflecting on these questions can provide a deeper appreciation for how engine design, specifically the stroke ratio, impacts the driving experience and engine performance characteristics.
Conclusion: The Enduring Significance of Stroke Ratio
In conclusion, the crankshaft stroke ratio, while a seemingly simple dimensional parameter, is a cornerstone of engine design and a critical determinant of engine performance and efficiency. It dictates whether an engine will be a torque-rich powerhouse at low RPMs or a high-revving horsepower champion. It influences fuel economy, engine responsiveness, and the overall driving character of a vehicle. While modern engine technologies have introduced complexities and nuances, the fundamental principles of stroke ratio remain relevant. Understanding this ratio allows us to appreciate the engineering trade-offs inherent in engine design and to better comprehend why different engines excel in different applications. By carefully considering the stroke ratio, engineers can tailor engine characteristics to meet specific performance goals and efficiency targets. At our company, we understand the intricate relationship between engine design parameters like stroke ratio and overall vehicle performance. Our products and services are designed to optimize engine performance and efficiency, taking into account these fundamental principles to deliver superior results for our clients. We leverage our expertise to help you maximize the potential of your engine, regardless of its stroke ratio, through advanced engineering solutions and performance enhancements.
