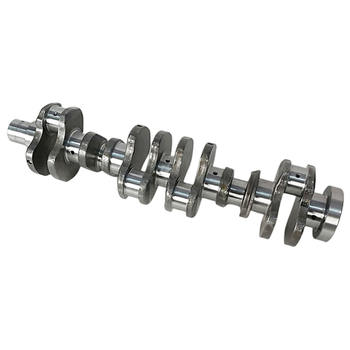

The crankshaft, often considered the backbone of an internal combustion engine, plays a pivotal role in converting linear piston motion into rotational force, which ultimately powers our vehicles and machinery. Its robust design and seemingly simple function belie the immense stresses and strains it endures during operation. Subjected to constant cyclical loading, extreme temperatures, and the relentless forces of combustion, the crankshaft is a component perpetually on the edge. Therefore, understanding crankshaft failure analysis is not merely an academic exercise; it's a critical necessity for ensuring engine reliability, preventing costly breakdowns, and enhancing overall operational safety. Ignoring potential crankshaft vulnerabilities is akin to neglecting the foundation of a building – eventual and often catastrophic failure becomes almost inevitable. This article delves into the intricacies of crankshaft failure analysis, exploring common issues and, more importantly, outlining proactive prevention strategies to safeguard this vital engine component.

Understanding the Critical Role of the Crankshaft

　　Before diving into the specifics of failure analysis, it’s crucial to appreciate the crankshaft's operational environment and the sheer magnitude of the demands placed upon it. Imagine the explosive force of combustion happening thousands of times per minute within the cylinders. Each explosion transmits force through the connecting rods to the pistons, and subsequently to the crankshaft journals. This isn't a smooth, consistent application of force; it's a series of sharp, impactful jolts. The crankshaft must withstand these repeated shocks while simultaneously maintaining its structural integrity and precise rotational balance. Furthermore, the crankshaft is subjected to various types of stress: bending stress from the offset cylinders, torsional stress from the twisting force applied, and tensile and compressive stresses from the overall loading. Add to this the thermal stresses induced by temperature variations within the engine block, and you begin to grasp the complexity of the crankshaft's working conditions. It's a testament to engineering ingenuity that these components function reliably for extended periods, but this reliability is predicated on meticulous design, material selection, manufacturing precision, and diligent maintenance. Failure to address any of these aspects can significantly increase the risk of crankshaft failure.

Common Modes of Crankshaft Failure

　　Crankshaft failures, while sometimes sudden and dramatic, are more often the result of progressive damage accumulating over time. Understanding the common modes of failure is the first step in effective analysis and prevention. Fatigue failure is perhaps the most prevalent culprit. This occurs due to the cyclic nature of the loading. Each engine cycle introduces stress, and over millions of cycles, even stresses below the material's ultimate tensile strength can initiate microscopic cracks. These cracks propagate gradually, eventually leading to fracture. Bending fatigue is common at the crankpin and main journals, areas subjected to high bending moments. Torsional fatigue, on the other hand, is more likely to occur along the crankshaft's length, especially if there are torsional vibrations or imbalances. Another significant failure mode is wear, particularly at the bearing journals. Insufficient lubrication, contaminated oil, or excessive bearing loads can lead to accelerated wear, increasing clearances and potentially causing secondary failures. Overloading, whether due to excessive engine speeds, detonation, or other abnormal operating conditions, can also induce immediate failure by exceeding the crankshaft's strength limits. Finally, manufacturing defects such as inclusions, voids, or improper heat treatment can act as stress concentrators, initiating cracks and accelerating fatigue failure. Identifying the specific mode of failure is crucial for pinpointing the root cause and implementing targeted preventative measures.

Detailed Analysis of Fatigue Failure

　　Delving deeper into fatigue failure, it’s important to recognize that it's not a singular event but a process with distinct stages. It begins with crack initiation, often at stress concentration points like fillets, keyways, or surface imperfections. These points experience amplified stress levels even under normal operating loads. Surface finish also plays a critical role; rough surfaces can harbor micro-cracks that readily become fatigue initiation sites. Once a crack initiates, the next stage is crack propagation. Under cyclic loading, the crack grows incrementally with each cycle. The rate of propagation depends on factors like stress intensity, material properties, and environmental conditions. Interestingly enough, fatigue cracks often propagate perpendicular to the direction of maximum tensile stress. The final stage is fracture. When the crack reaches a critical size, the remaining cross-sectional area of the crankshaft can no longer support the applied load, and sudden fracture occurs. The fracture surface in fatigue failures typically exhibits distinct characteristics: a smooth region indicating progressive crack growth and a rougher region indicating the final, rapid fracture. Analyzing these fracture surfaces under a microscope can provide valuable clues about the fatigue mechanism and the location of crack initiation. Understanding these stages allows engineers to design components with improved fatigue resistance and to develop inspection methods for detecting cracks before catastrophic failure.

The Impact of Lubrication and Wear

　　Lubrication is the lifeblood of any engine, and its importance to crankshaft longevity cannot be overstated. The crankshaft journals and bearings rely on a thin film of oil to separate the metal surfaces, minimizing friction and wear. Inadequate lubrication, whether due to low oil levels, oil pump failure, or blocked oil passages, leads to metal-to-metal contact. This contact generates heat, accelerates wear, and can even cause bearing seizure. Contaminated oil is another major contributor to wear. Abrasive particles like dirt, metal shavings, and combustion byproducts in the oil act as grinding agents, scratching and wearing away bearing surfaces and journals. Regular oil changes and the use of high-quality oil filters are essential to combat contamination. Excessive bearing loads, perhaps due to misalignment or improper bearing installation, can also compromise lubrication. High loads squeeze out the oil film, leading to boundary lubrication conditions and increased wear. Wear on crankshaft journals isn't just a cosmetic issue; it increases bearing clearances, which can lead to oil pressure drops, increased vibrations, and ultimately, fatigue failure due to altered stress distributions. Regular inspection of bearing condition and oil analysis are crucial preventative measures. Frankly speaking, neglecting lubrication is a recipe for premature crankshaft failure and a cascade of other engine problems.

Torsional Vibrations and Resonance

　　Beyond bending and fatigue, torsional vibrations are a significant concern for crankshaft integrity, particularly in engines with complex firing orders or long crankshafts. These vibrations are essentially twisting motions along the crankshaft's axis, induced by the intermittent nature of combustion pulses. Each combustion event imparts a torsional impulse, setting the crankshaft into vibration. While some level of torsional vibration is inherent, excessive vibrations can lead to fatigue failure, particularly if the frequency of these vibrations coincides with a natural resonance frequency of the crankshaft. Resonance occurs when the excitation frequency matches the natural frequency, causing a dramatic amplification of vibration amplitude. This amplified torsional stress can quickly exceed the crankshaft's fatigue limit. Engine designers employ various strategies to mitigate torsional vibrations. Torsional dampers, typically located at the crankshaft's front end, are designed to absorb and dissipate vibrational energy. Careful selection of crankshaft material and geometry also plays a role in tuning the natural frequencies away from common engine operating speeds. Furthermore, engine management systems and firing order optimization can minimize torsional excitation. Monitoring torsional vibrations, particularly during engine development and testing, is critical for ensuring crankshaft reliability and preventing resonance-induced failures.

Material Selection and Manufacturing Processes

　　The inherent strength and durability of a crankshaft are fundamentally determined by the material from which it's made and the manufacturing processes employed. Traditionally, crankshafts have been made from forged steel, offering high strength, fatigue resistance, and wear resistance. Forging aligns the grain structure of the steel, enhancing its mechanical properties in critical directions. Different grades of steel are used depending on the engine's performance requirements and operating conditions. For high-performance engines, alloy steels with enhanced fatigue strength and toughness are often chosen. Casting is another manufacturing method, particularly for less demanding applications or complex crankshaft geometries. While cast crankshafts can be cost-effective, they generally have lower strength and fatigue resistance compared to forged ones. Surface hardening processes like nitriding or induction hardening are often applied to crankshaft journals and fillets to improve wear resistance and fatigue strength in these critical areas. These processes create a hard, wear-resistant surface layer while maintaining a tougher core. Precise machining is essential to ensure dimensional accuracy, surface finish, and proper balance. Even slight deviations in journal diameter or fillet radii can create stress concentrations and accelerate fatigue failure. Therefore, rigorous quality control throughout the material selection and manufacturing stages is paramount for producing reliable crankshafts.

Proactive Prevention Strategies

　　Preventing crankshaft failure is a multifaceted endeavor, encompassing design considerations, material selection, manufacturing quality control, and, crucially, proactive maintenance practices. At the design stage, finite element analysis (FEA) is extensively used to optimize crankshaft geometry, minimize stress concentrations, and predict fatigue life under expected operating loads. Careful consideration of fillet radii, journal dimensions, and balancing weights is crucial. Selecting the appropriate material with adequate fatigue strength, wear resistance, and toughness for the intended application is also paramount. During manufacturing, stringent quality control measures must be implemented to ensure dimensional accuracy, surface finish, and material integrity. Non-destructive testing methods like ultrasonic inspection and magnetic particle inspection can detect internal flaws or surface cracks. From a maintenance perspective, regular oil changes with high-quality oil and filters are non-negotiable. Oil analysis can detect early signs of wear or contamination, allowing for timely intervention. Periodic inspections of bearings and journals during engine overhauls can identify wear or damage before it leads to failure. Proper engine operating procedures, avoiding excessive speeds and loads, also contribute significantly to crankshaft longevity. In essence, a combination of robust design, meticulous manufacturing, and diligent maintenance forms the cornerstone of crankshaft failure prevention.

Our Role in Crankshaft Reliability

　　At our company, we understand the critical importance of crankshaft reliability and offer a range of products and services designed to support both failure analysis and prevention. Our advanced material testing and analysis capabilities allow us to thoroughly investigate crankshaft failures, identifying the root causes and failure mechanisms. We employ state-of-the-art techniques like fractography, metallography, and chemical analysis to provide comprehensive failure analysis reports. Furthermore, we offer consultation services to assist engine manufacturers and operators in optimizing crankshaft design, material selection, and manufacturing processes to enhance reliability. Our expertise in vibration analysis can help identify and mitigate torsional vibration issues, preventing resonance-induced failures. We also provide non-destructive testing services for crankshafts, allowing for proactive detection of flaws and cracks before they lead to catastrophic failures. By leveraging our expertise and comprehensive suite of services, our clients can significantly improve the reliability and longevity of their crankshafts, minimizing downtime and ensuring optimal engine performance. We believe in a proactive approach to crankshaft health, focusing on prevention and early detection to avoid costly failures and maintain operational efficiency.

Conclusion: Safeguarding the Heart of the Engine

　　In conclusion, Crankshaft Failure Analysis: Common Issues and Prevention Strategies is not just a technical topic; it's a fundamental aspect of engine reliability and performance. From understanding the complex stresses a crankshaft endures to recognizing the subtle signs of impending failure, a comprehensive approach is essential. Common issues like fatigue, wear, and torsional vibrations, if left unaddressed, can lead to catastrophic engine breakdowns. However, by implementing proactive prevention strategies encompassing robust design, quality manufacturing, and diligent maintenance, we can significantly mitigate these risks. Regular oil changes, thorough inspections, and leveraging advanced analysis techniques are all crucial components of a successful crankshaft health management program. Ultimately, safeguarding the crankshaft means safeguarding the heart of the engine, ensuring its continued reliable operation and preventing costly and disruptive failures. Investing in crankshaft failure analysis and prevention is not just an expense; it's an investment in engine longevity, operational efficiency, and overall system reliability.

　　Have you ever considered the sheer number of rotations a crankshaft endures over its lifespan? Or perhaps wondered about the subtle signs of fatigue that might be developing within your engine right now? These are critical questions for anyone involved in engine maintenance or design. Understanding crankshaft failure analysis is the key to unlocking preventative measures and ensuring long-term engine health.
