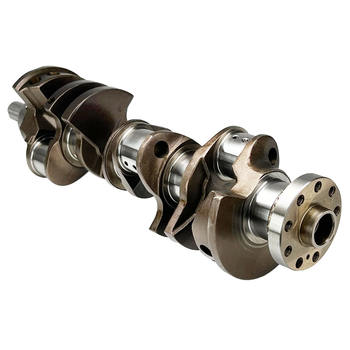

The crankshaft, the heart of your Toyota's engine, transforms the reciprocating motion of the pistons into rotational force, ultimately powering your vehicle. Because it endures immense stress and strain, regular inspection is crucial. This Toyota crankshaft inspection guide focuses on identifying wear patterns *before* they lead to catastrophic failure, saving you time, money, and the headache of a major engine overhaul. Ignoring these subtle signs can lead to serious engine problems, like bent connecting rods, damaged pistons, or even a cracked engine block. Think of it as preventative maintenance for your engine's lifeline.
Understanding Crankshaft Wear and its Causes
Crankshaft wear isn’t a sudden event; it’s a gradual process influenced by several factors. Inadequate lubrication is a primary culprit. When oil levels are low or the oil pump malfunctions, metal-to-metal contact increases friction and accelerates wear on the bearing surfaces (journals). Another cause is debris in the oil. Dirt, metal shavings, and other contaminants act as abrasives, grinding away at the crankshaft journals over time. Furthermore, excessive engine load, such as frequent towing or aggressive driving, puts immense stress on the crankshaft, contributing to premature wear. Interestingly enough, even something as seemingly minor as improper engine tuning can exacerbate crankshaft wear by causing uneven combustion and increased stress.
Bearing failure is another common cause of crankshaft wear. When connecting rod bearings or main bearings fail, they can damage the crankshaft journals, causing scoring and pitting. It’s worth noting that using the wrong type of oil can also contribute to accelerated wear. Toyota engines are designed to operate with specific oil viscosities and formulations. Using an oil that doesn't meet these specifications can compromise lubrication and lead to increased friction. Early detection is key. Learning to spot these potential causes will help you better understand the importance of regular inspection and maintenance.
Preparing for the Crankshaft Inspection
Before diving into the inspection, you'll need to gather some essential tools and prepare your workspace. Firstly, you'll need a clean, well-lit area. Secondly, you’ll require a torque wrench, plastigauge (for measuring bearing clearances), micrometers (for measuring journal diameters), and a dial indicator (for checking crankshaft runout). A good-quality engine stand will also be invaluable for rotating the crankshaft and accessing all areas for inspection. Don't forget safety glasses and gloves to protect yourself from debris and chemicals. Most importantly, have your Toyota's service manual on hand. This will provide specific torque specifications and bearing clearance tolerances for your particular engine model. Failure to adhere to these specifications can lead to serious engine damage.
Before you start dismantling the engine, make sure it's completely cool. Drain the engine oil and coolant. Carefully remove the engine components that obstruct access to the crankshaft, such as the cylinder head, pistons, and connecting rods. Keep all parts organized and labeled to facilitate reassembly. Take photos as you disassemble, which can serve as a visual reference guide later on. Finally, thoroughly clean the crankshaft with a solvent and a soft brush to remove any dirt or oil. A clean surface is essential for accurate inspection. With these preparations in place, you're ready to begin the detailed examination of the crankshaft.
Visual Inspection: Identifying Common Wear Patterns
The initial visual inspection is crucial for identifying obvious signs of wear and damage. Look closely at the crankshaft journals (the bearing surfaces) for scoring, pitting, and discoloration. Scoring appears as scratches or grooves on the journal surface. Pitting refers to small, irregular depressions caused by corrosion or cavitation. Discoloration, such as a bluish tint, indicates excessive heat. Also, examine the connecting rod journals and main bearing journals for signs of ovality or taper. Ovality means the journal is not perfectly round, while taper means the journal diameter varies along its length. These conditions can significantly reduce bearing life and engine performance. Franky speaking, even a small amount of visible damage can significantly impact engine performance.
Check the crankshaft for cracks, especially in high-stress areas such as the connecting rod journals and the fillet radius (the curved area where the journal meets the crankshaft arm). Cracks can be extremely difficult to spot with the naked eye, so consider using a magnifying glass and a bright light. Also, pay attention to the keyways and threads on the crankshaft. Damaged keyways can prevent proper timing gear installation, while damaged threads can make it difficult to torque fasteners correctly. Don’t overlook the oil passages in the crankshaft. Blocked oil passages can restrict oil flow to the bearings, leading to rapid wear and potential engine failure. Use compressed air to blow out any debris or obstructions from the oil passages. A thorough visual inspection can reveal a lot about the crankshaft's condition and help you determine the next steps in the inspection process.
Precision Measurements: Assessing Crankshaft Dimensions
Following the visual inspection, precision measurements are essential to quantify the extent of crankshaft wear and determine if it falls within acceptable tolerances. Use a micrometer to measure the diameter of each journal at several points around its circumference and along its length. Compare your measurements to the specifications in your Toyota’s service manual. If the journal diameters are significantly smaller than the specified values, or if you find excessive ovality or taper, the crankshaft may need to be reground or replaced. Remember, accuracy is paramount; invest in quality measuring tools and take your time to ensure precise readings. These measurements often mean the difference between a rebuilt engine running smoothly or failing prematurely.
Check the crankshaft runout using a dial indicator. Mount the crankshaft in V-blocks or on an engine stand and position the dial indicator tip against the center main journal. Rotate the crankshaft slowly and observe the dial indicator reading. Excessive runout indicates that the crankshaft is bent, which can cause vibrations and bearing wear. Again, compare your measurements to the specifications in your Toyota’s service manual. It's worth noting, even if the journals appear to be within tolerance, excessive runout may still necessitate crankshaft replacement or repair. These precision measurements provide invaluable data about the crankshaft's overall health and its suitability for continued use.
Interpreting Your Findings and Making Decisions
After completing the visual inspection and precision measurements, it's time to interpret your findings and make informed decisions about the crankshaft's future. If the crankshaft shows only minor wear, such as slight scoring or polishing, it may be acceptable for reuse, particularly if the journal diameters are within tolerance. However, if the crankshaft has significant scoring, pitting, cracking, or excessive runout, it will likely need to be reground or replaced. Regrinding involves machining the journals to a smaller diameter, which requires using undersized bearings to maintain proper clearances. In my experience, regrinding is a cost-effective option for salvaging a crankshaft with moderate wear.
Before making a final decision, consider the overall condition of the engine. If the engine has high mileage or if other components are showing signs of wear, it may be more economical to replace the crankshaft with a new or remanufactured unit. It’s also important to consider the cost of regrinding versus the cost of a replacement crankshaft. In some cases, the cost of regrinding and purchasing undersized bearings may be comparable to the cost of a new crankshaft. Remember, the crankshaft is a critical component of the engine, so it’s crucial to make the right decision to ensure long-term reliability. Have you ever wondered why some engines last longer than others? Often, it boils down to proactive inspection and timely maintenance of key components like the crankshaft.
Preventing Future Crankshaft Wear
Preventing crankshaft wear is all about proactive maintenance and adhering to best practices. Regular oil changes are paramount. Use the correct oil viscosity and specification recommended by Toyota and change the oil and filter at the intervals specified in your owner's manual. Consider using a high-quality oil filter to remove contaminants effectively. Avoid aggressive driving habits that put excessive stress on the engine. Smooth acceleration and consistent speeds are much gentler on the crankshaft than frequent hard acceleration and braking. In addition, ensure that the engine's cooling system is functioning properly to prevent overheating, which can accelerate wear. Have you ever considered how important the cooling system is in relation to the engine's internal components? Why is this approach so effective? Regular inspections and maintenance help ensure that these issues don't arise in the first place.
Keep the engine properly tuned. A poorly tuned engine can cause uneven combustion and increased stress on the crankshaft. Check and adjust the ignition timing and fuel injection system as needed. Also, be mindful of the engine's operating conditions. Avoid prolonged idling or operating the engine at high RPMs for extended periods. These conditions can generate excessive heat and strain on the crankshaft. Finally, consider using a high-quality fuel additive to help keep the fuel system clean and prevent deposits from forming on the intake valves and fuel injectors. These deposits can disrupt combustion and contribute to crankshaft wear. By following these preventative measures, you can significantly extend the life of your Toyota's crankshaft and avoid costly repairs.
Conclusion: Safeguarding Your Toyota's Engine
Regular and thorough crankshaft inspections are essential for safeguarding your Toyota's engine and preventing costly failures. By understanding the causes of crankshaft wear, learning to identify common wear patterns, and performing precision measurements, you can proactively address potential problems before they escalate into major repairs. It's a worthwhile investment in the long-term health and reliability of your vehicle. Don't underestimate the importance of preventative maintenance. Small issues, if left unchecked, can lead to significant problems down the road. Our company offers a range of precision measurement tools and engine diagnostic equipment that can assist you in performing these inspections accurately and efficiently. We also provide expert technical support and training to help you master the art of engine diagnostics and repair. Remember, a healthy crankshaft means a healthy engine, and a healthy engine means a reliable and enjoyable driving experience.
